Removal & Installation: Struts: Reassembly

WARNING: This page is about a different car, the 2003 Acura 3.2CL, 2002 Acura 3.2CL, and 2001 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.

Install strut unit on a commercially available strut spring compressor (A). Assemble strut in reverse order of removal except for washer and self-locking nut. Align bottom of strut spring and spring lower seat (B). See Fig 1 .
Position mount base (A) on strut unit. See Fig 2 . Compress strut spring with spring compressor.
Install rubber bushing, washer (A), and a NEW 10 mm self-locking nut (B). See Fig 3 .

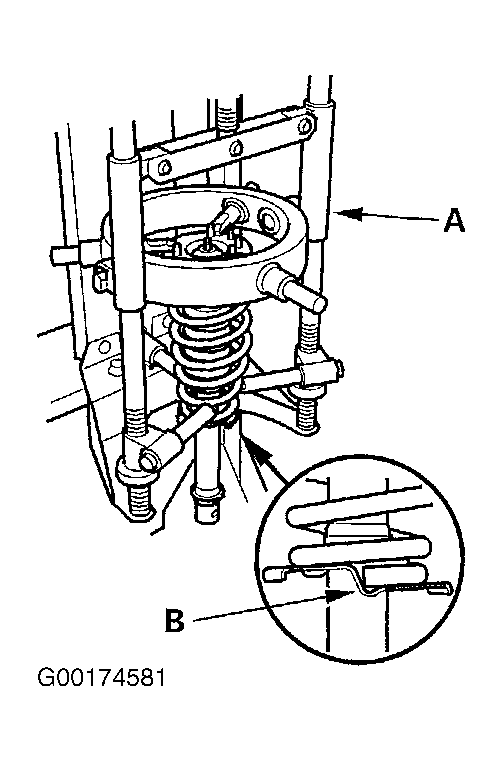

Fig 1: Reassembling Strut

Courtesy of AMERICAN HONDA MOTOR CO., INC.

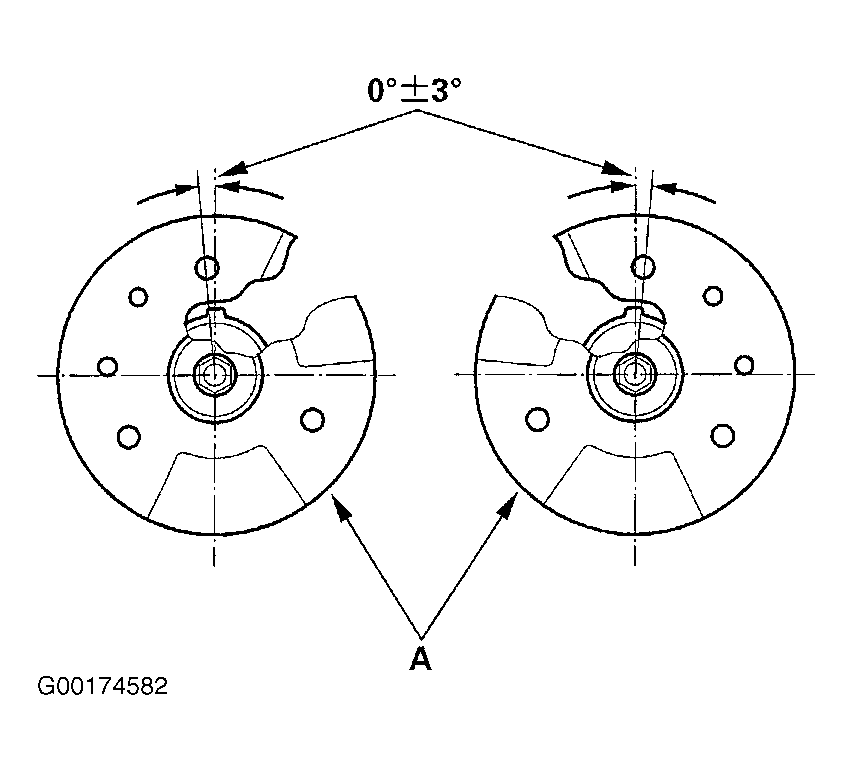

Fig 2: Positioning Strut Unit For Reassembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.

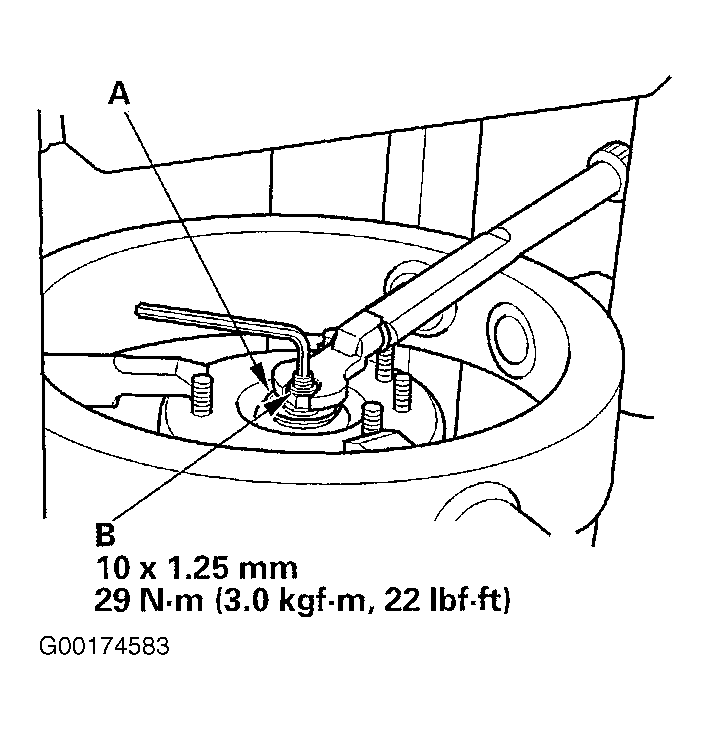

Fig 3: Installing Rubber Bushing & Washer

Courtesy of AMERICAN HONDA MOTOR CO., INC.
