Removal & Installation: Struts: Installation

WARNING: This page is about a different car, the 2003 Acura 3.2CL, 2002 Acura 3.2CL, and 2001 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.

Loosely install strut (A) on frame with aligning tab (B) facing inside, then loosely install the five flange nuts (C). See Fig 1 .
Install strut fork (D) over driveshaft and onto lower arm. Install front strut in strut fork so aligning tab (B) is aligned with slot in strut fork. See Fig 2 .
Loosely install strut pinch bolt (E) into strut fork. Loosely install a NEW self-locking nut (F) with the flange bolt (G). See Fig 2 .
Raise knuckle with a floor jack until vehicle just lifts off safety stand. Tighten strut pinch bolt to specifications. See TORQUE SPECIFICATIONS .
Tighten flange bolt and self-locking nut. Tighten flange nuts on top of strut to specified torque. See TORQUE SPECIFICATIONS . Install front wheel.

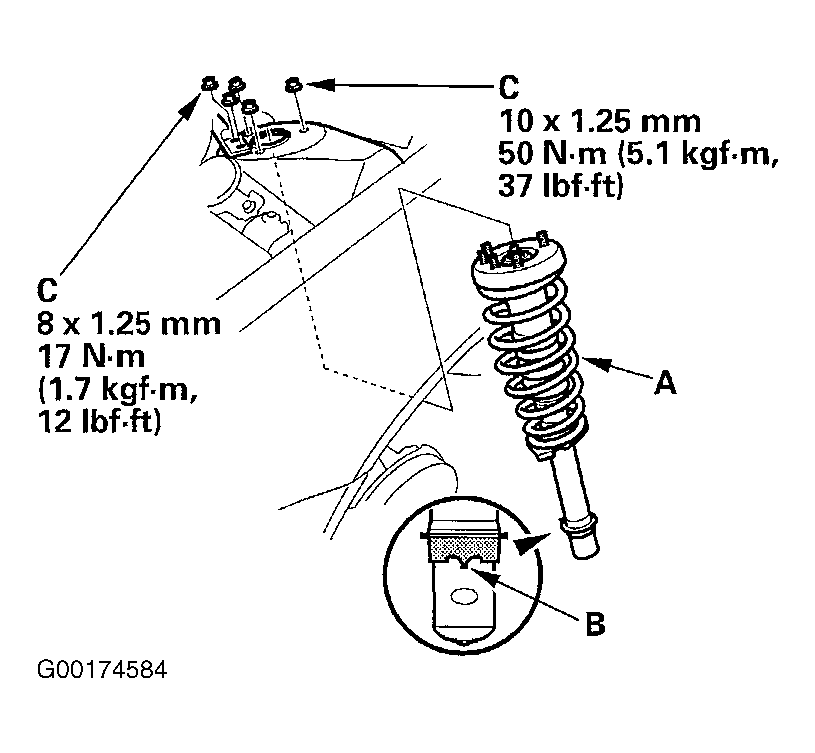

Fig 1: Installing Strut To Frame

Courtesy of AMERICAN HONDA MOTOR CO., INC.

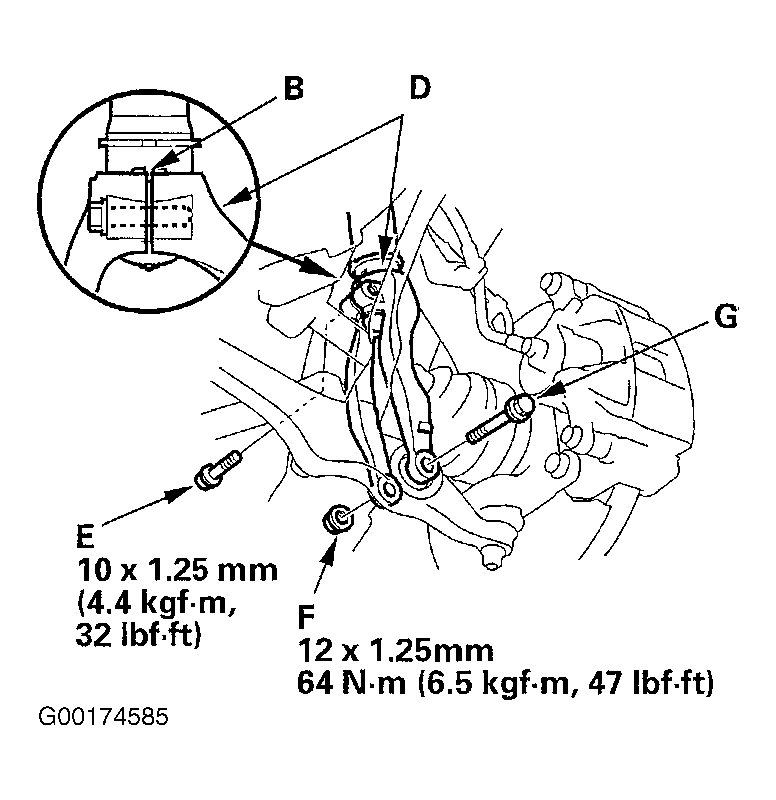

Fig 2: Installing Strut Fork To Driveshaft

Courtesy of AMERICAN HONDA MOTOR CO., INC.
