Removal & Installation: Struts: Disassembly

WARNING: This page is about a different car, the 2003 Acura 3.2CL, 2002 Acura 3.2CL, and 2001 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.

Compress strut spring with a commercially available strut spring compressor like, Branick MST-580A Model 7200, or equivalent (A) according to manufacturer's instructions, then remove self-locking nut (B). Do not compress spring more than necessary to remove nut. See Fig 1 .
Release pressure from strut spring compressor, then disassemble strut. See Figure .
Reassemble all parts, except spring. Compress strut assembly by hand, and check for smooth operation through a full stroke. The strut should move smoothly. If it does not, gas is leaking, and strut should be replaced. Check for oil leaks, abnormal noises, or binding during these tests.

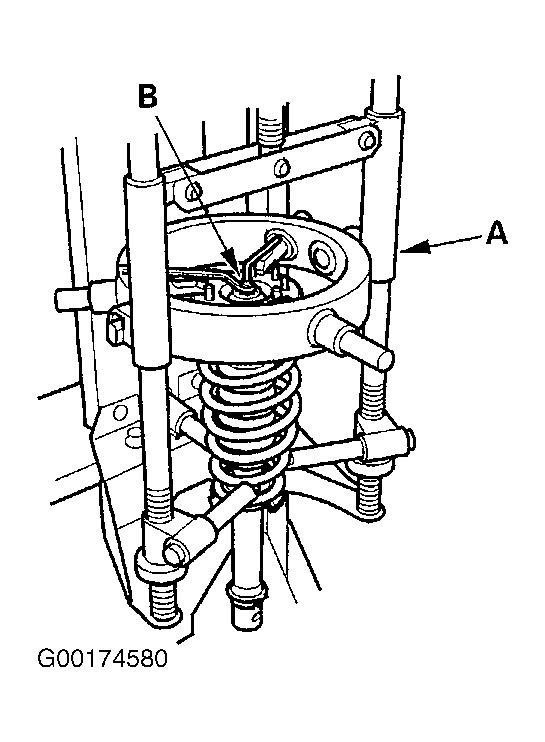

Fig 1: Removing Self Locking Nut From Strut

Courtesy of AMERICAN HONDA MOTOR CO., INC.
