Wiper Motor Replacement

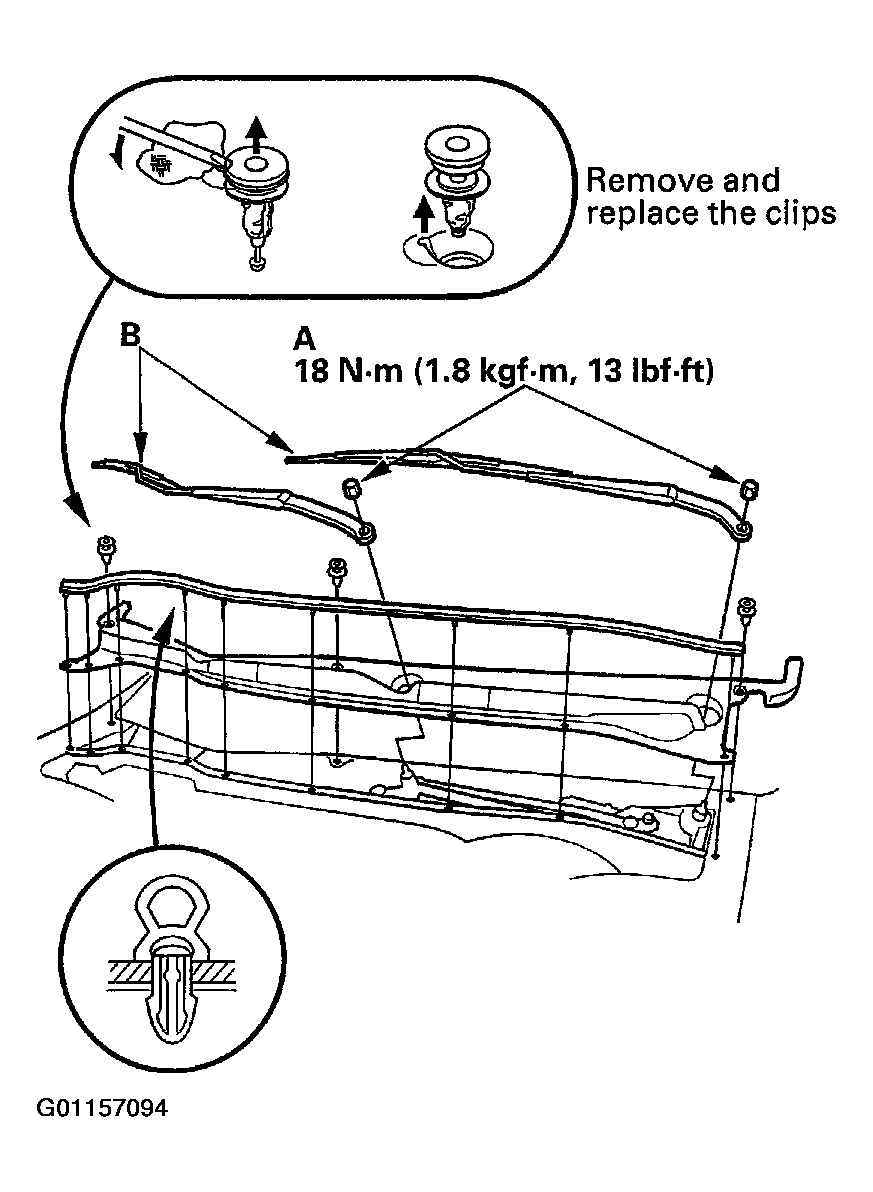

Remove the nuts (A) and remove the windshield wiper arms (B).

Fig 1: Removing The Windshield Wiper Arms
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the hood seal and cowl cover.

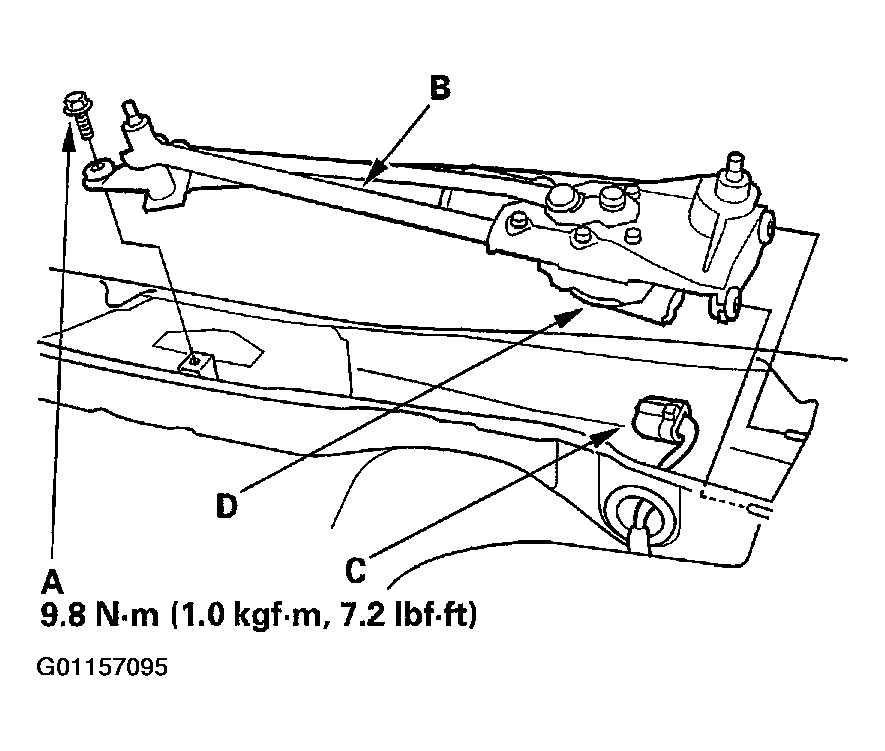

Remove the bolt (A) and windshield wiper linkage assembly (B).

Fig 2: Removing Windshield Wiper Linkage Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 5P connector (C) from the wiper motor (D).

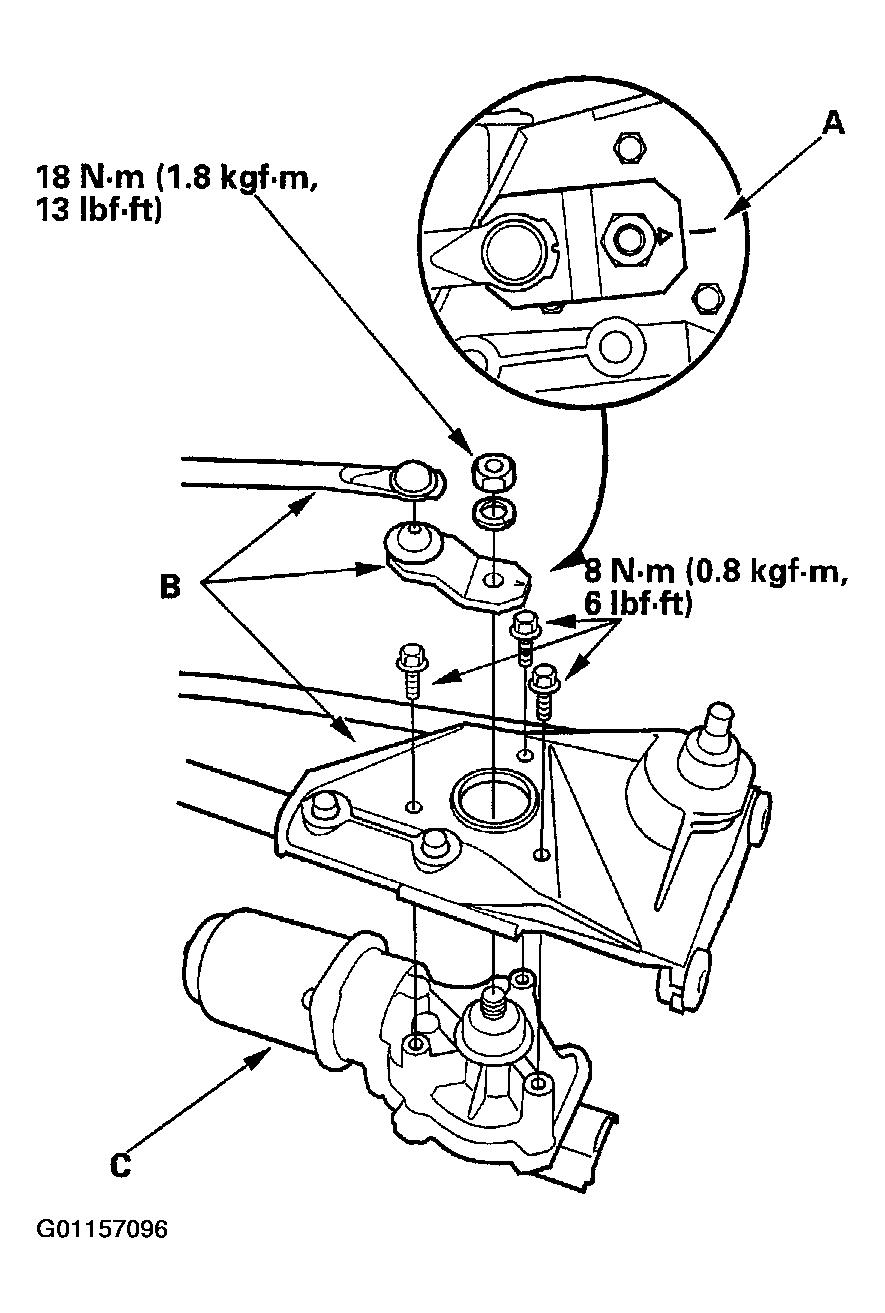

Scribe a line (A) across the link and windshield wiper linkage to show the original adjustment. Separate the windshield wiper linkage (B) from the wiper motor (C).

Fig 3: Scribing A Line & Separating The Windshield Wiper Linkage
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal, and note these items:
- Grease the moving parts.
- Before reinstalling the wiper arms, turn the wiper switch ON, then OFF to return the wiper shafts to the park position.
- If necessary, replace any damaged clips.
- Check the wiper motor operation.
