Window Antenna Test

  1. Wrap aluminum foil (A) around the tip of the tester probe (B) as shown.

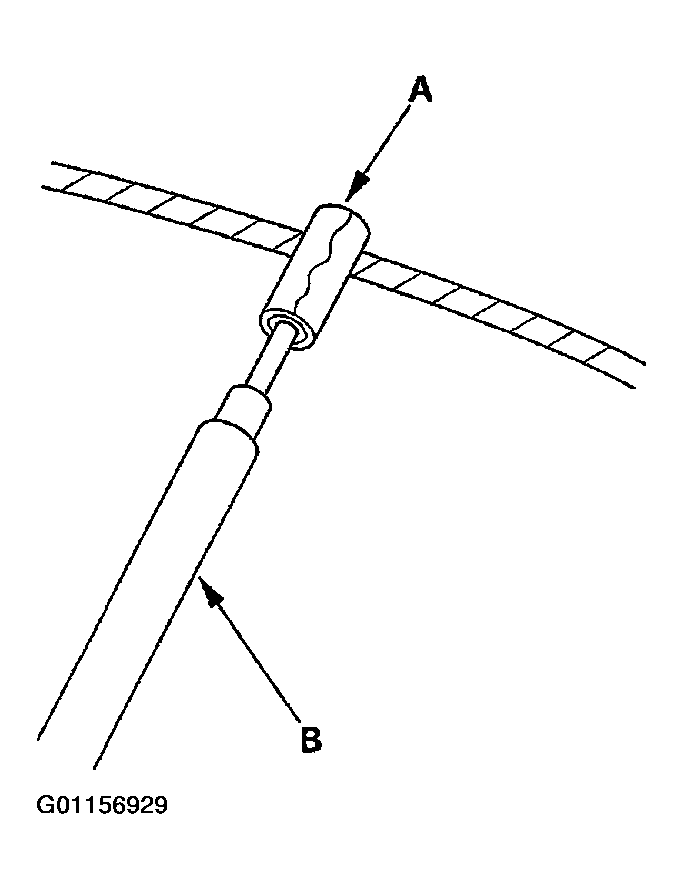

    Fig 1: Wrapping Aluminum Foil Around The Tip Of The Tester Probe
    G01156929Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Touch one tester probe to the window antenna terminal (A) here, and move the other tester probe along the antenna wires to check that continuity exists.

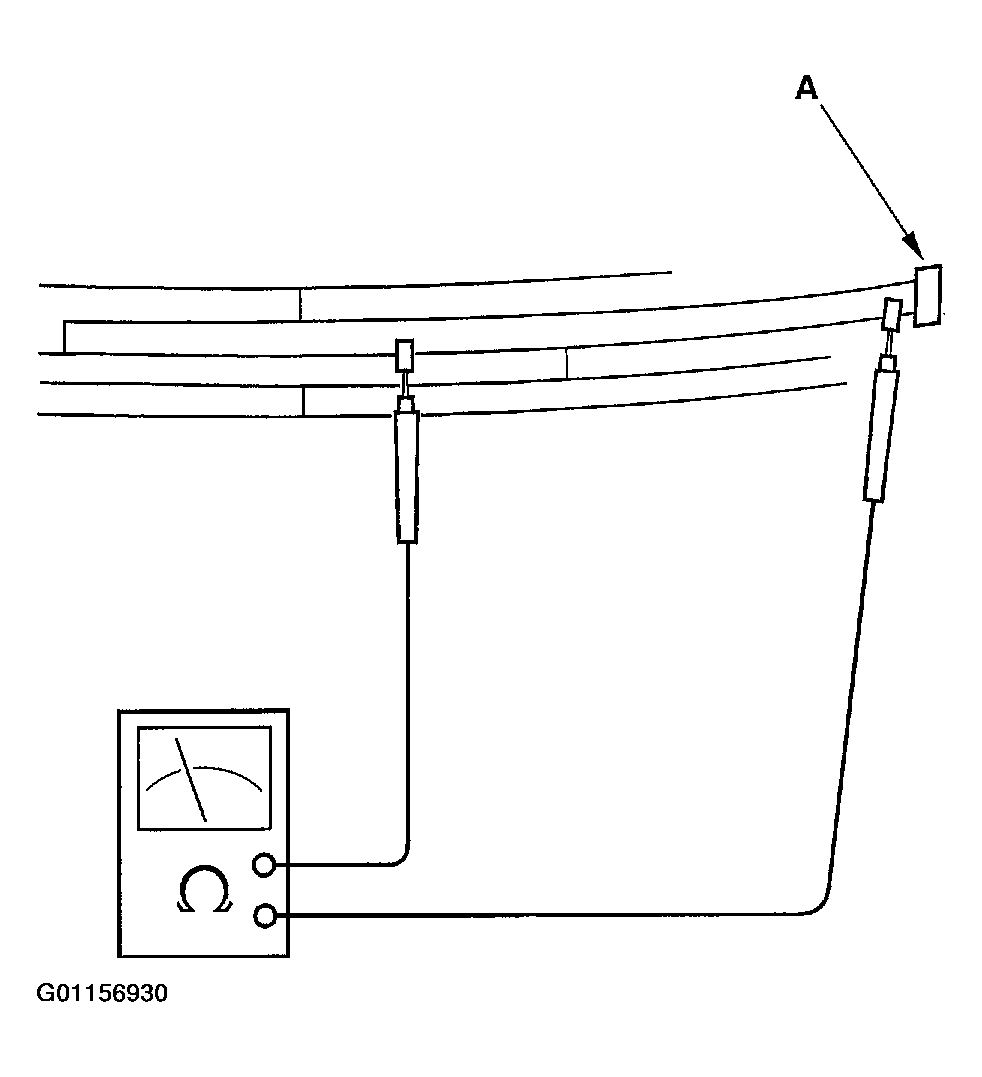

    Fig 2: Testing Antenna Continuity
    G01156930Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. If continuity does not exist, repair the window antenna.
