Stereo Amplifier Replacement

  1. Remove the rear seat .
  2. Disconnect the 12P connector (A) from the amplifier.

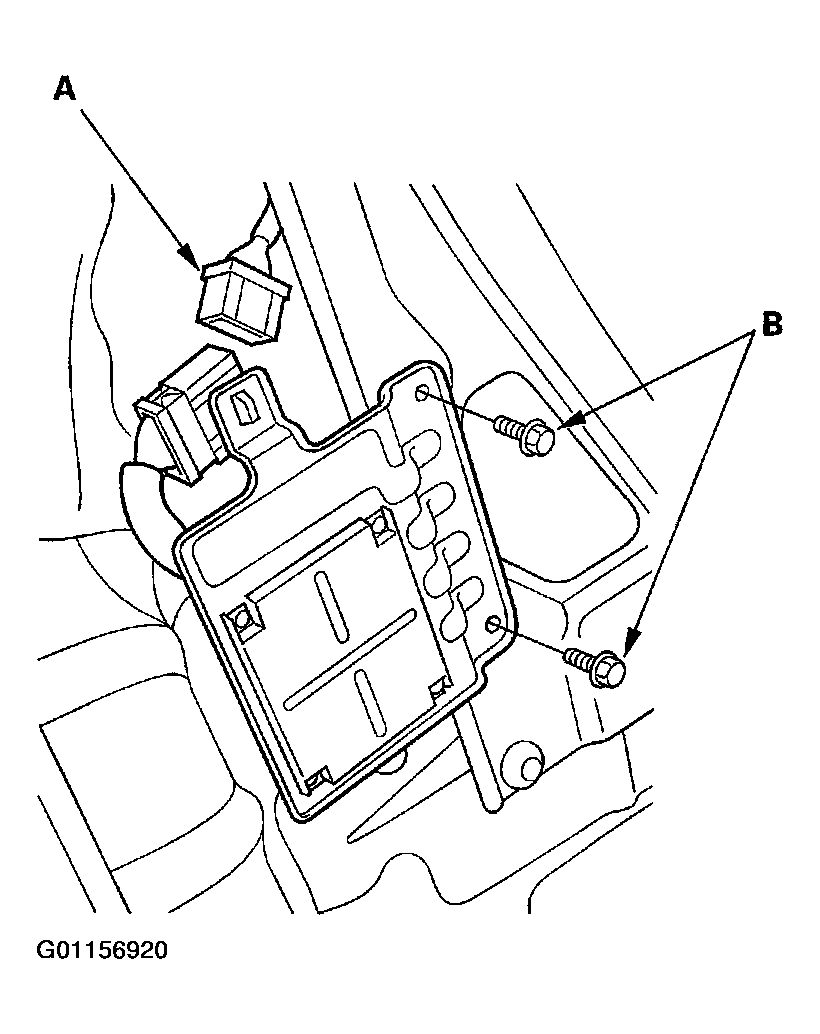

    Fig 1: Disconnecting The Connector
    G01156920Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two mounting bolts (B) and the amplifier.
  4. Install the amplifier in the reverse order of removal.
