Intermediate Shaft: Disassembly

WARNING: This page is about a different car, the 2002 Acura MDX and 2001 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the heat shield (A) and intermediate shaft outer seal (B) from the bearing support (C). See Fig 1.
Remove the set ring (D) and the external snap ring (E). See Fig 1.

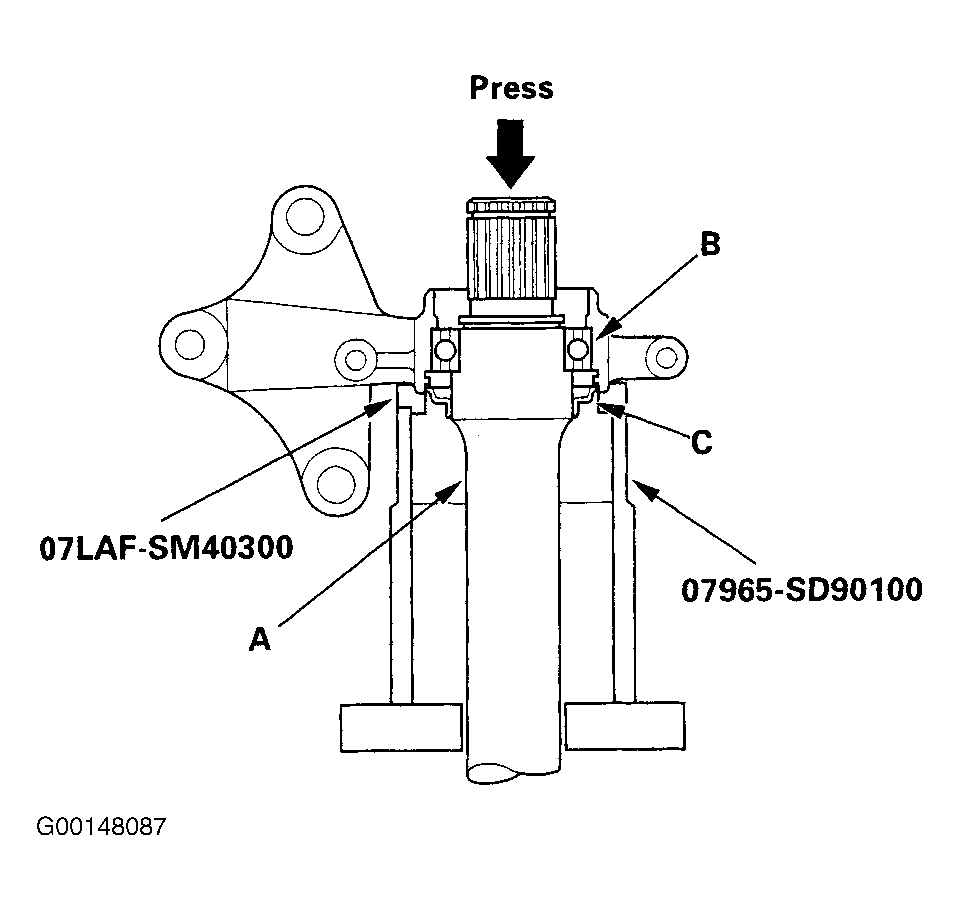

Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using the support base and a press. Be careful not to damage the metal rings (C) on the intermediate shaft during disassembly. See Fig 2.

Fig 1: Removing Heat Shield
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Removing Intermediate Shaft From Bearing Support
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the internal snap ring. See Fig 3.
Press the intermediate shaft bearing (A) out of the bearing support (B) using the attachment and a press. See Fig 4.

Fig 3: Removing Internal Snap Ring

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Removing Internal Shaft Bearing

Courtesy of AMERICAN HONDA MOTOR CO., INC.
