Compressor Clutch Overhaul: Overhaul

WARNING: This page is about a different car, the 2003 Acura 3.2CL and 2002 Acura 3.2CL. However, it is still accessible from the selected car via links, so may be relevant.

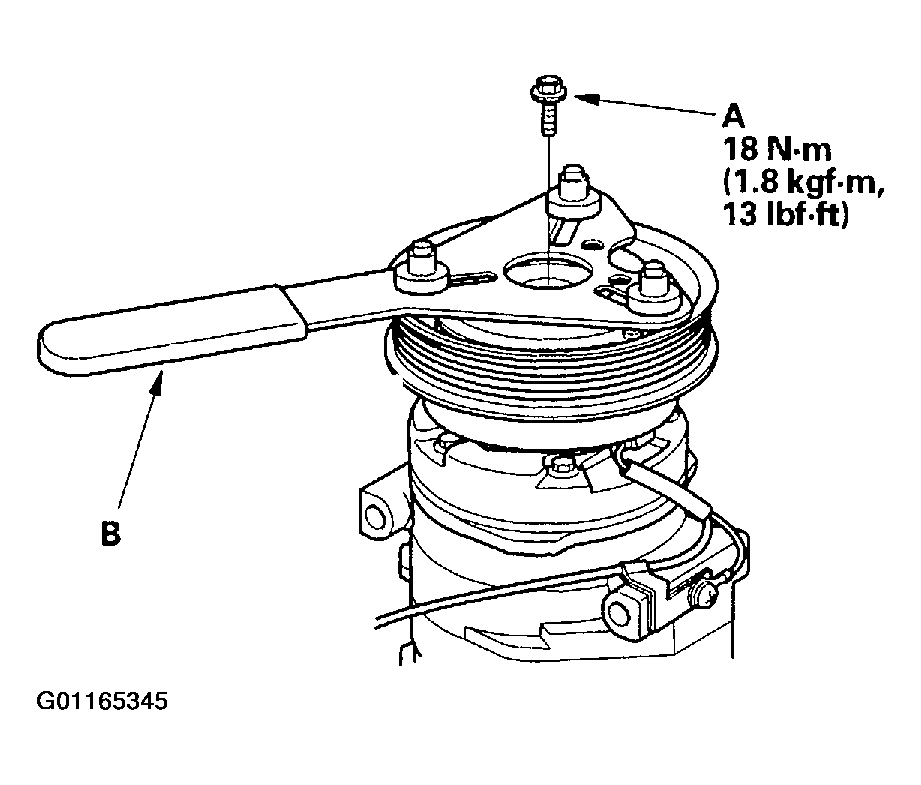

Remove the center bolt (A) while holding the pressure plate with a commercially available A/C clutch holder (B).

Fig 1: Removing The Center Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

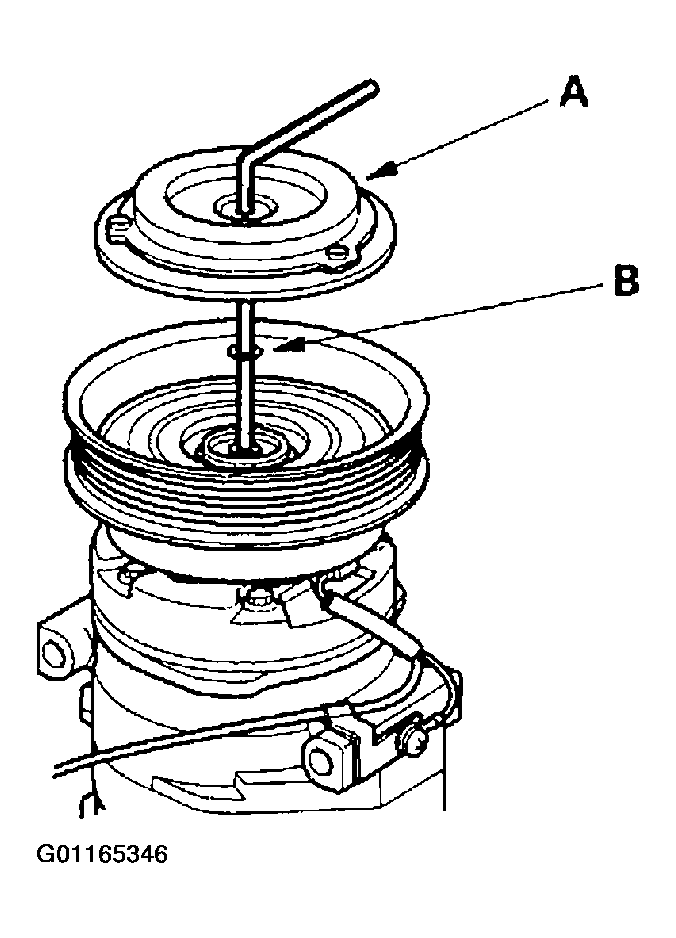

Remove the pressure plate (A) and shim(s) (B), taking care not to lose the shim(s). If the clutch needs adjustment, increase or decrease the number and thickness of shims as nesessary, then reinstall the pressure plate, and recheck its clearance (see COMPRESSOR CLUTCH CHECK ).
NOTE: The shims are available in four thickness: 0.1 mm, 0.3mm, 0.5mm and 1.5 mm.

Fig 2: Removing The Pressure Plate And Shim(s)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If you are replacing the field coil, remove the snap ring (A) with snap ring pliers, then remove the pulley (B). Be careful not to damage the pulley or the compressor.

Fig 3: Removing The Snap Ring & Pulley
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screw from the field coil ground terminal (A). Remove the snap ring (B) with snap ring pliers, then remove the field coil (C). Be careful not to damage the field coil or the compressor.

Fig 4: Removing The Field Coil
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reassemble the clutch in the reverse order of disassembly, and note these items:
- Install the field coil with the wire side facing down, and align the boss on the field coil with the hole in the compressor.
- Clean the pulley and compressor sliding surfaces with contact cleaner or other non-petroleum solvent.
- Install new snap rings, note the installation direction, and make sure they are fully seated in the groove.
- Make sure that the pulley turns smoothly after it's reassembled.
- Route and clamp the wires properly or they can be damaged by the rotor pulley.
