DTC P0451: Fuel Tank Pressure (Ftp) Sensor Circuit Range/Performance Problem
WARNING: This page is about a different car, the 2004 Acura 3.5RL, 2003 Acura 3.5RL, 2002 Acura 3.5RL, and 2001 Acura 3.5RL. However, it is still accessible from the selected car via links, so may be relevant.
- Perform PCM reset procedure. See PCM RESET PROCEDURE/CLEARING DIAGNOSTIC TROUBLE CODES
under SELF-DIAGNOSTIC SYSTEM. Remove fuel filler cap. Turn ignition switch ON (II). Measure voltage between PCM 22-pin connector D terminals No. 15 (Green/Yellow wire) and No. 22 (Green/Black wire) or monitor FTP sensor voltage with scan tool. See Figure
-Figure
. If about 2.5 volts are present, go to next step. If about 2.5 volts are not present, check vacuum lines for restriction or blockage. Repair as necessary. If vacuum lines are okay, replace Fuel Tank Pressure (FTP) sensor.CAUTION: Stop applying vacuum when voltage drops to about 1.5 volts. Damage to fuel tank pressure sensor may occur.

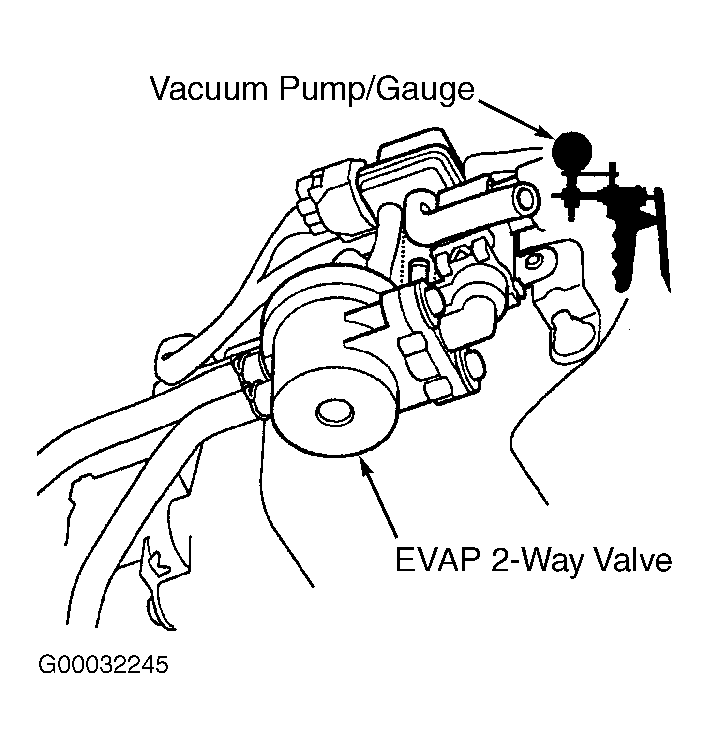

- Disconnect vacuum hose between EVAP 2-way valve and FTP sensor at EVAP 2-way valve end. Connect vacuum pump to EVAP 2-way valve end of vacuum hose. See Fig 1 . Turn ignition switch ON (II). Measure voltage between PCM 22-pin harness connector terminals No. 15 (Green/Yellow wire) and No. 22 (Green/Black wire) or monitor FTP sensor voltage with scan tool, while applying vacuum on hose one stroke at a time. If voltage smoothly drops from 2.5 to about 1.5 volts and holds, problem is intermittent. Check for poor connections or loose hoses at FTP sensor and fuel tank. If voltage does not smoothly drop from 2.5 to about 1.5 volts and hold, replace FTP sensor.
