Connecting Rod Bolt Inspection
WARNING: This page is about a different car, the 2002 Acura MDX and 2001 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

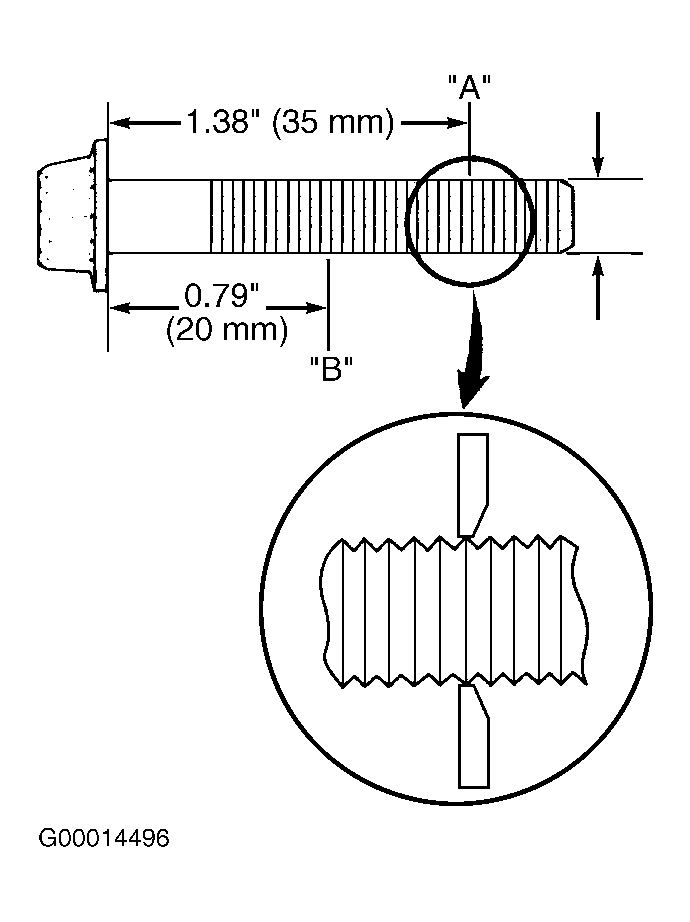

Measure diameter of each connecting rod bolt at points "A" and "B" as shown. See Fig 1. Calculate difference in diameter between measurement at point "A" and point "B". If difference exceeds .004" (.10 mm), replace connecting rod bolt.
