Oil Pump Assembly: Removal

WARNING: This page is about a different car, the 2002 Acura MDX and 2001 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise vehicle. Drain engine oil. Turn crankshaft so pointer aligns with pulley mark to indicate No. 1 piston is at TDC.
  2. Remove timing belt. See TIMING BELT  under REMOVAL & INSTALLATION. Remove idler pulley.
  3. Remove CKP sensor, then remove timing belt drive pulley. Remove VTEC solenoid valve and oil filter assembly. See Fig 1. Remove oil pan and oil screen.
  4. Remove mounting bolts, and remove oil pump assembly. Remove screws from pump housing. Separate housing and cover to check internal components.

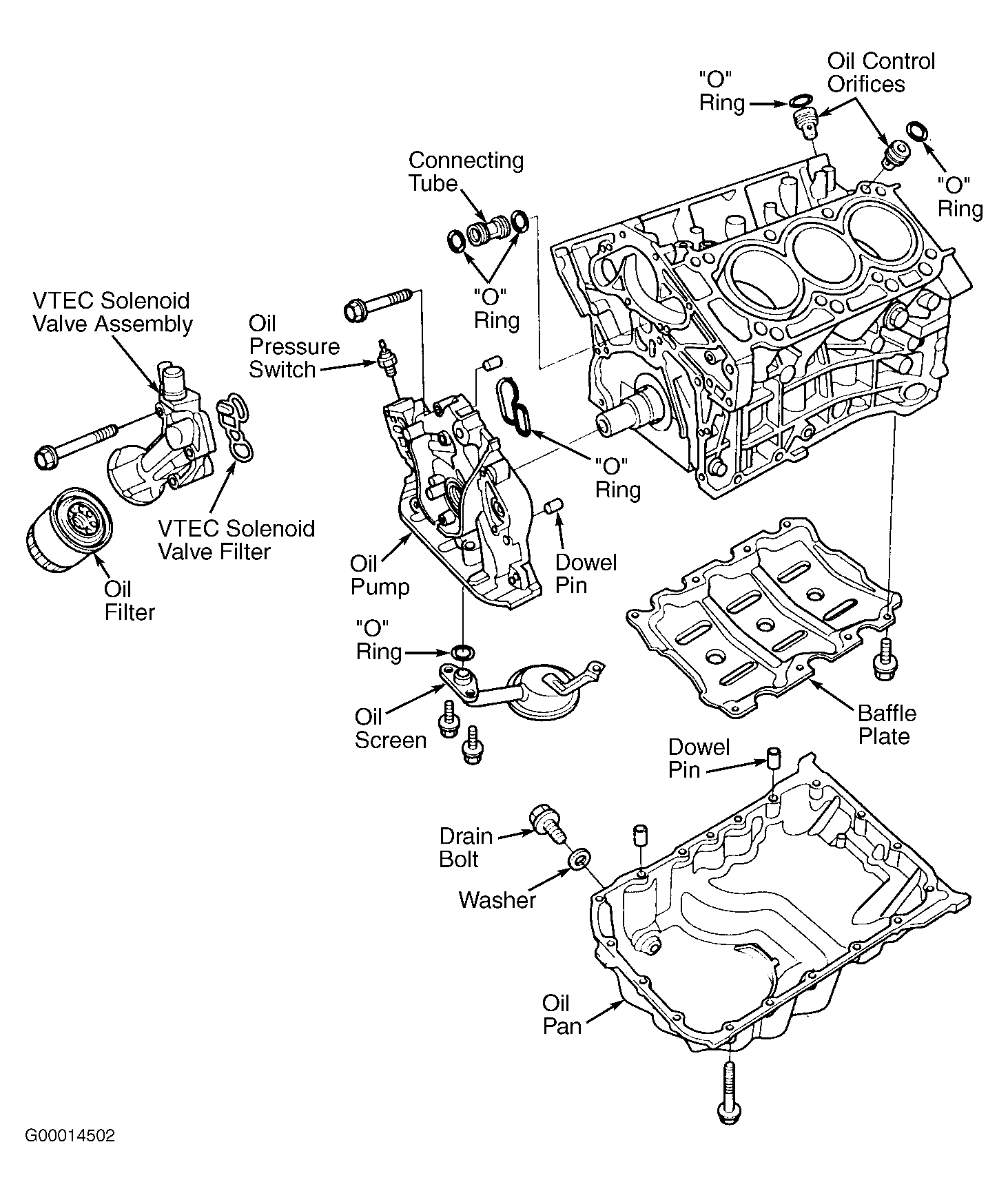

Fig 1: Exploded View Of Engine Lubrication System Components
G00014502Courtesy of AMERICAN HONDA MOTOR CO., INC.
