Throttle Cable Adjustment
WARNING: This page is about a different car, the 2002 Acura MDX and 2001 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

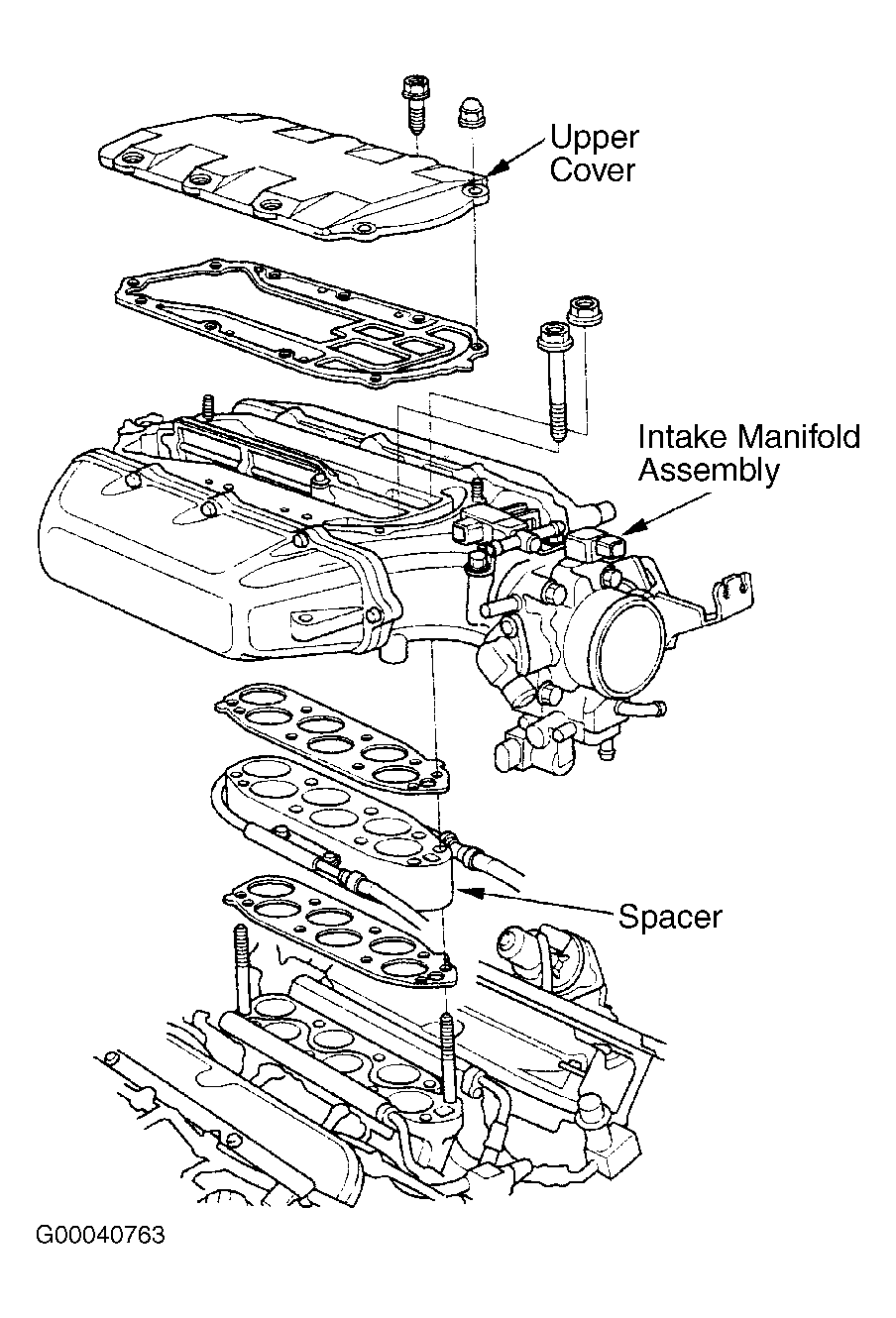

- Remove Intake manifold cover. See Figure. Start engine and run at 3000 RPM, with all accessories off, until radiator fan comes on. Allow engine to idle.

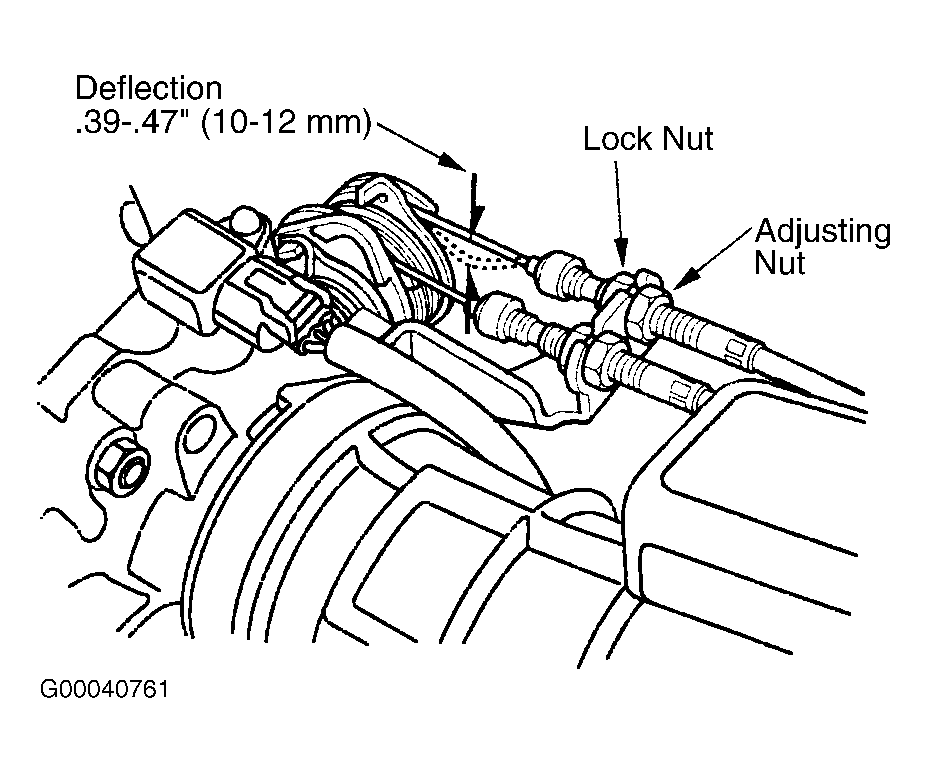

- Hold throttle link to throttle lever and ensure there is no clearance. Check cable free play at throttle linkage. Cable deflection should be .36-.50" (9-13 mm). If necessary, loosen lock nut and turn adjusting nut until deflection is within range. See Fig 1. Retighten lock nut.
- With cable properly adjusted, ensure throttle valve opens fully with accelerator pedal fully depressed. Ensure throttle valve returns fully to idle position when pedal is released.
