Component Locations
Component Locations

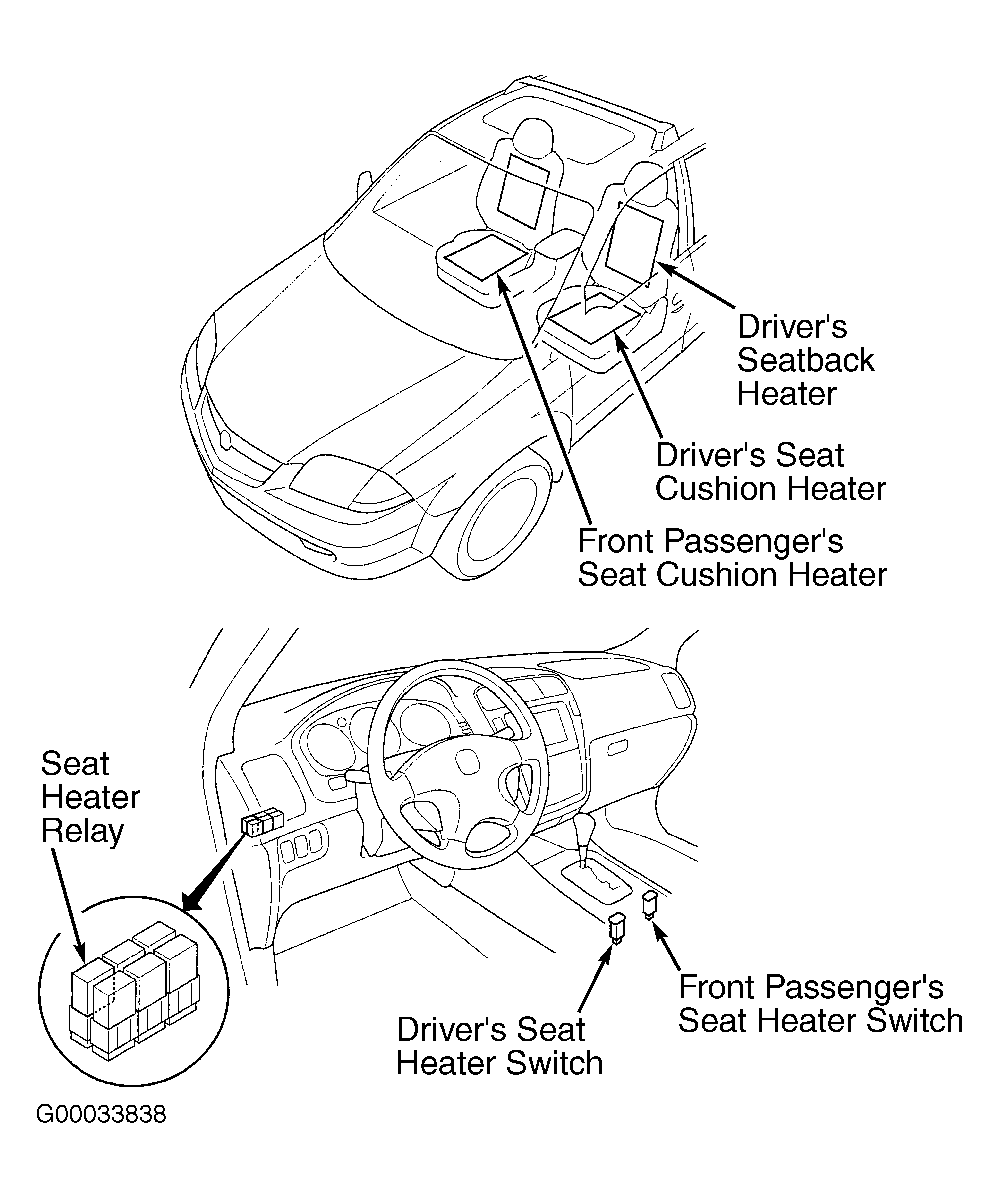

Fig 1: Heated Seat System Component Locations (MDX)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

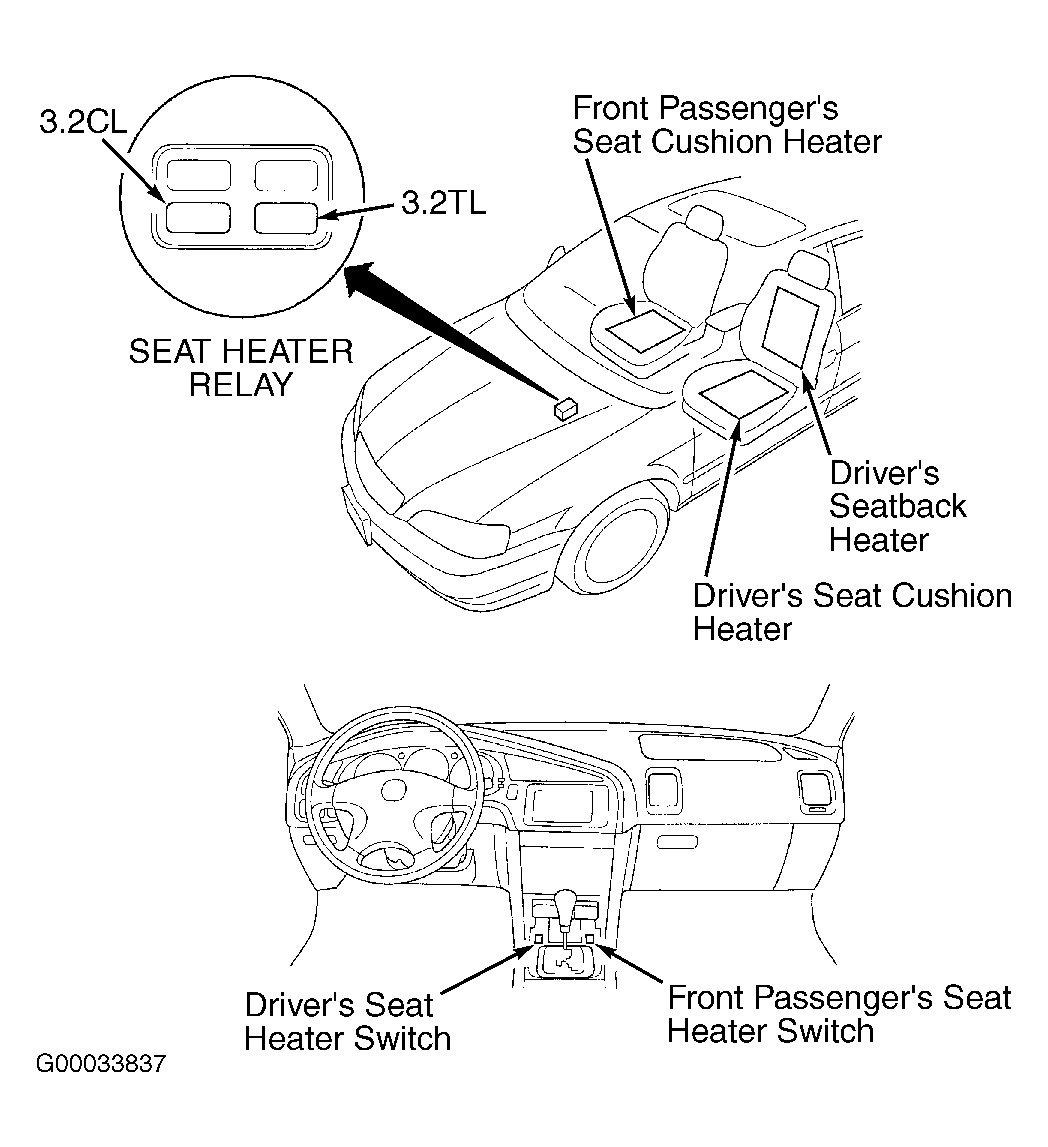

Fig 2: Heated Seat System Component Locations (3.2CL & 3.2TL)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Heated Seat System Component Locations (3.5RL)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
