Cruise Control Systems: Description

WARNING: Deactivate air bag system before performing any service operation. See appropriate AIR BAG RESTRAINT SYSTEMS article. DO NOT apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.

CAUTION: Before disconnecting battery, obtain anti-theft code for radio. After battery is reconnected, the word CODE will appear on radio display. Enter 5-digit anti-theft code using select buttons and radio will begin working. If code is entered incorrectly 10 times, leave radio on at least one hour and enter code correctly. Any time radio power is lost, pre-selected radio stations will have to be set.

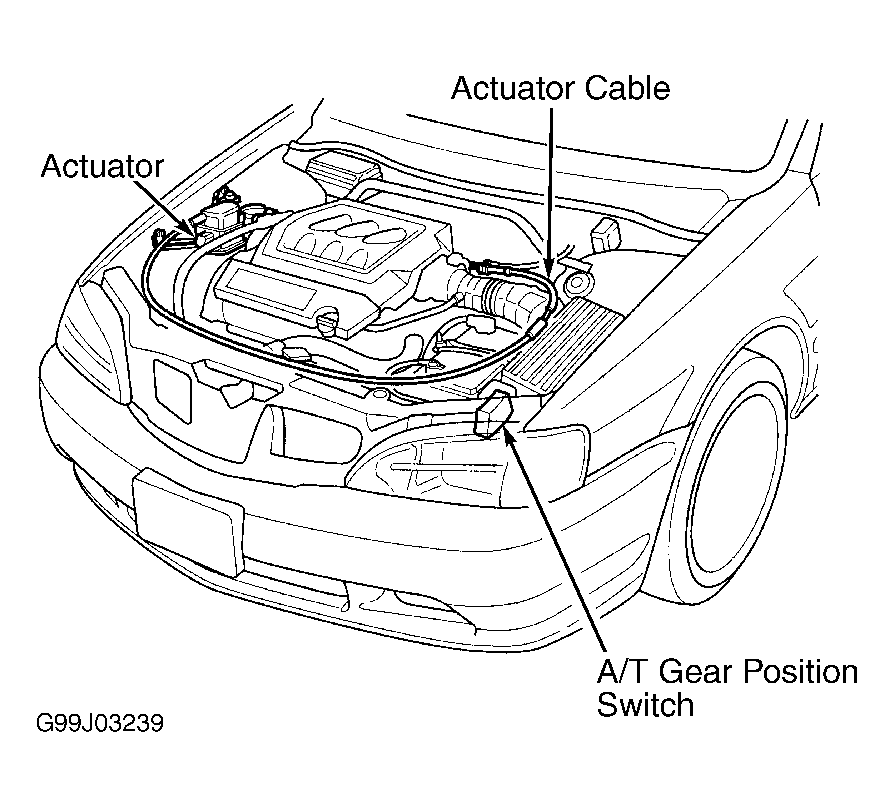

Cruise control unit receives command signals from cruise control main switch and SET/RESUME/CANCEL switch. Vehicle operating signals are also received from brake switch, Vehicle Speed Sensor (VSS), and A/T gear position switch. Cruise control unit sends control signals to cruise control actuator, which regulates throttle position to maintain selected vehicle speed. See Figure -Figure .

Cruise control unit compares actual vehicle speed to selected speed. Cruise control unit will open or close throttle to change and maintain vehicle speed. When cruise control unit receives a disengage signal, cruise control actuator will allow throttle to close. A signal from brake switch disengages system when brakes are applied. A/T gear position switch or cancel switch can also send disengage signals to cruise control unit.
