Under-Hood Fuse/Relay Box Connector End View

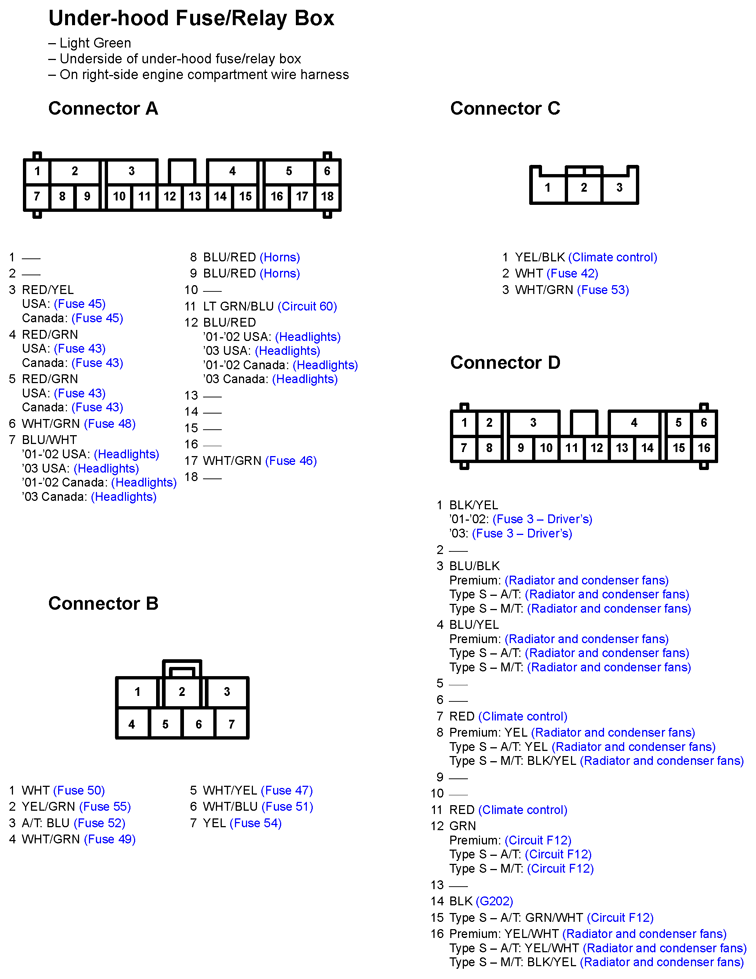

Fig 1: Under-Hood Fuse/Relay Box Connector End View

G11247354

Courtesy of AMERICAN HONDA MOTOR CO., INC.
