Turn Signal/Parking Lights, Left Front or Right Front Connector End View

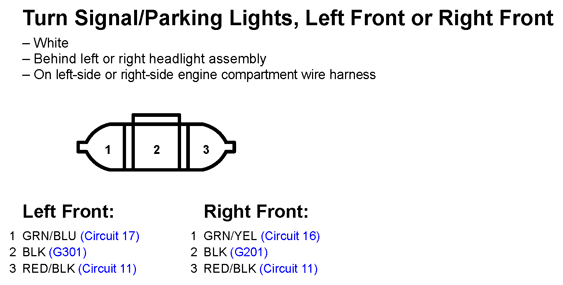

Fig 1: Turn Signal/Parking Lights, Left Front or Right Front Connector End View

G11247219

Courtesy of AMERICAN HONDA MOTOR CO., INC.
