Immobilizer Receiver Unit Connector End View

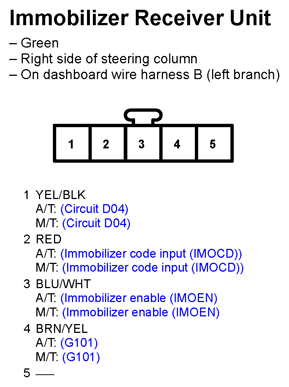

Fig 1: Immobilizer Receiver Unit Connector End View

G11247251

Courtesy of AMERICAN HONDA MOTOR CO., INC.
