DRL Control Unit (Canada) Connector End View
DRL Control Unit (Canada) Connector End View

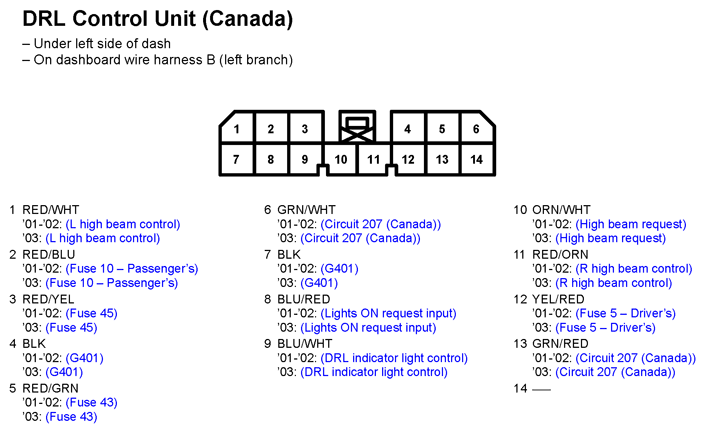

Fig 1: DRL Control Unit (Canada) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
