Console Box Light (A/T) Connector End View

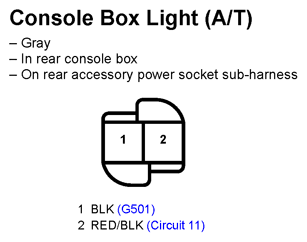

Fig 1: Console Box Light (A/T) Connector End View

G11247127

Courtesy of AMERICAN HONDA MOTOR CO., INC.
