Navigation Unit Inputs And Outputs For Connector B (16P) ('03 Model)

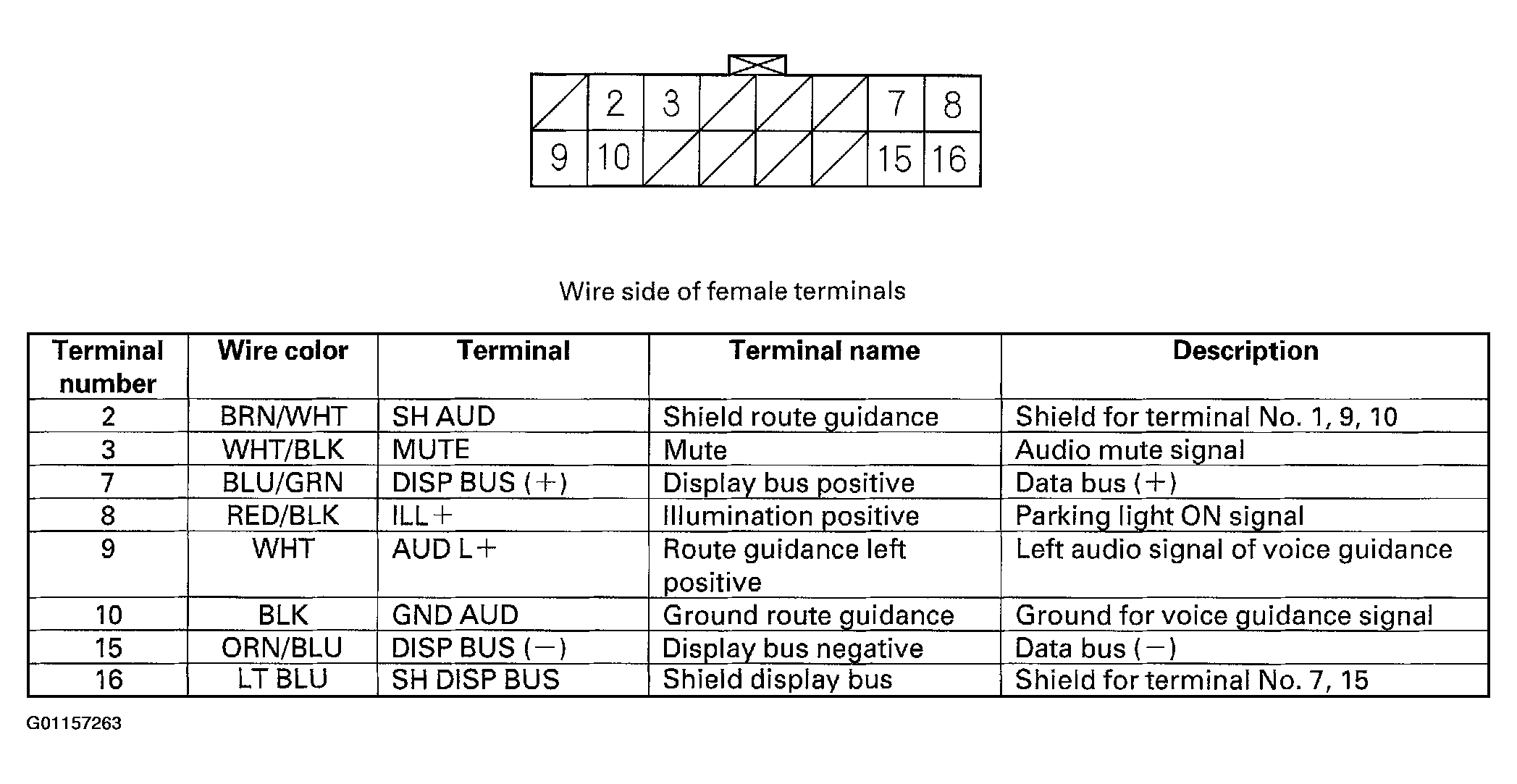

Fig 1: Identifying Navigation Unit Connector B (16P) Terminals & Inputs And Outputs ('03 Model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
