Repair and Diagnosis
>>
Steering
>>
Electronic Steering
>>
Wiring Diagrams
>>
EPS Control Unit
EPS Control Unit

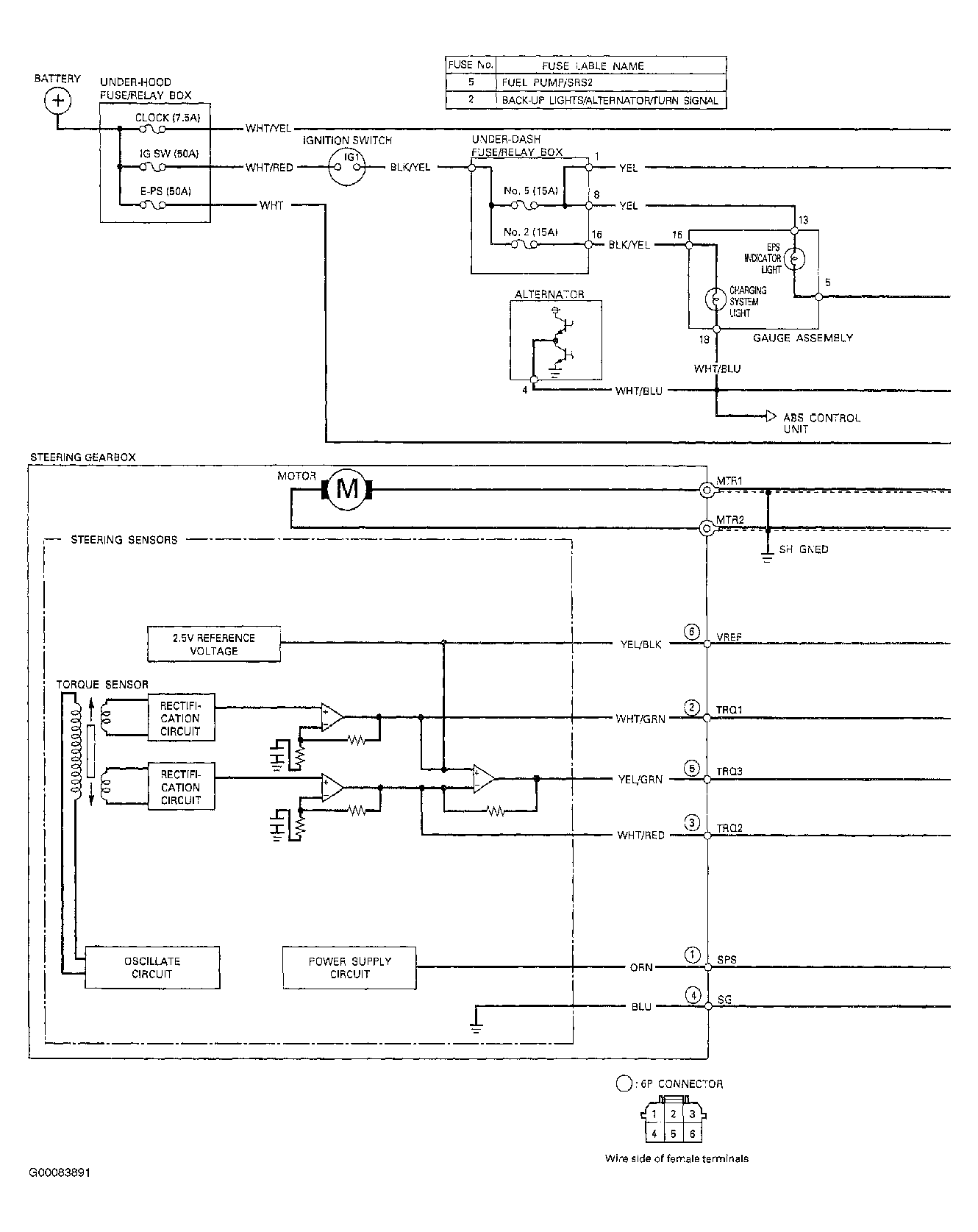

Fig 1: EPS Control Unit Circuit (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

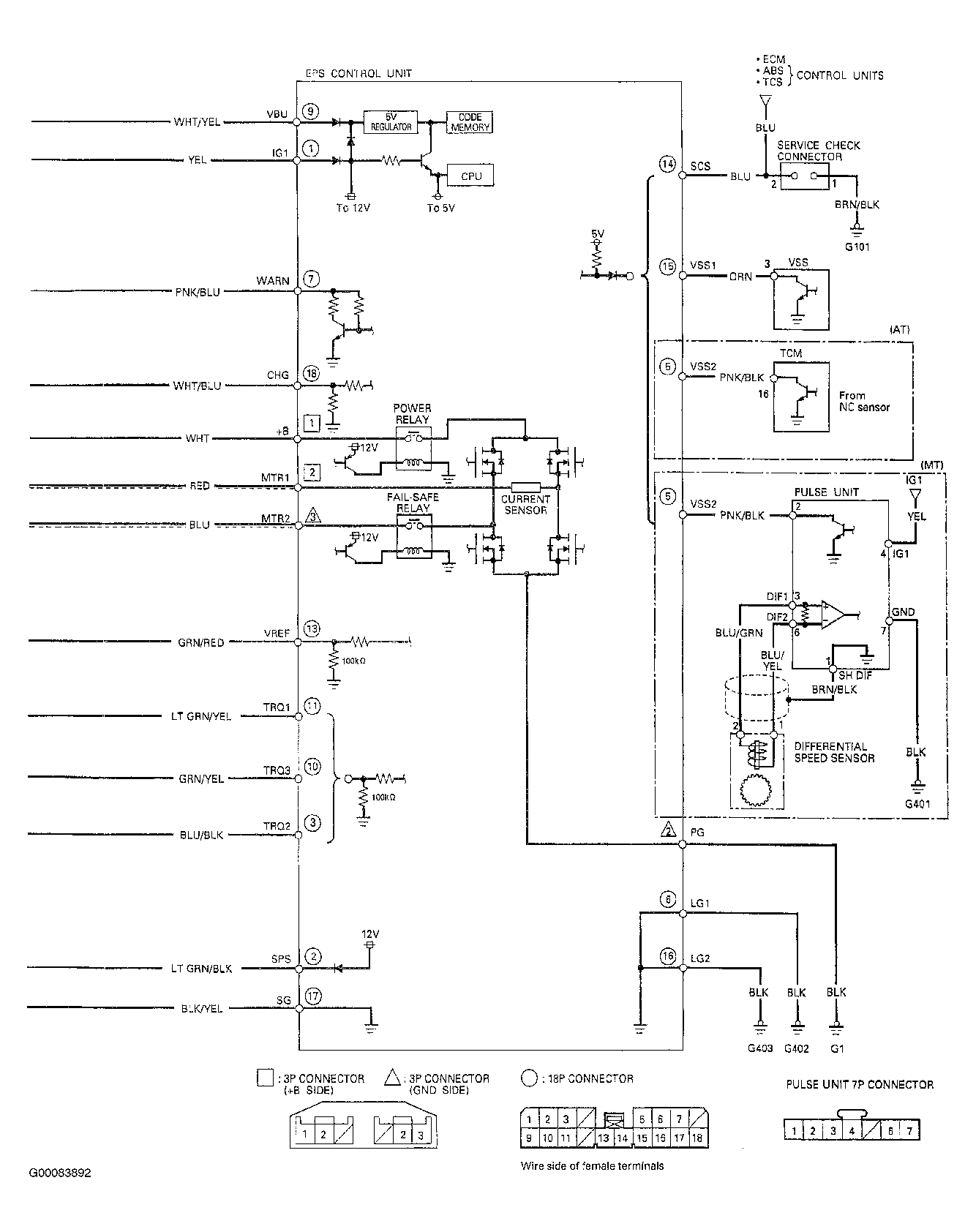

Fig 2: EPS Control Unit Circuit (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
