Special Tools
Special Tools

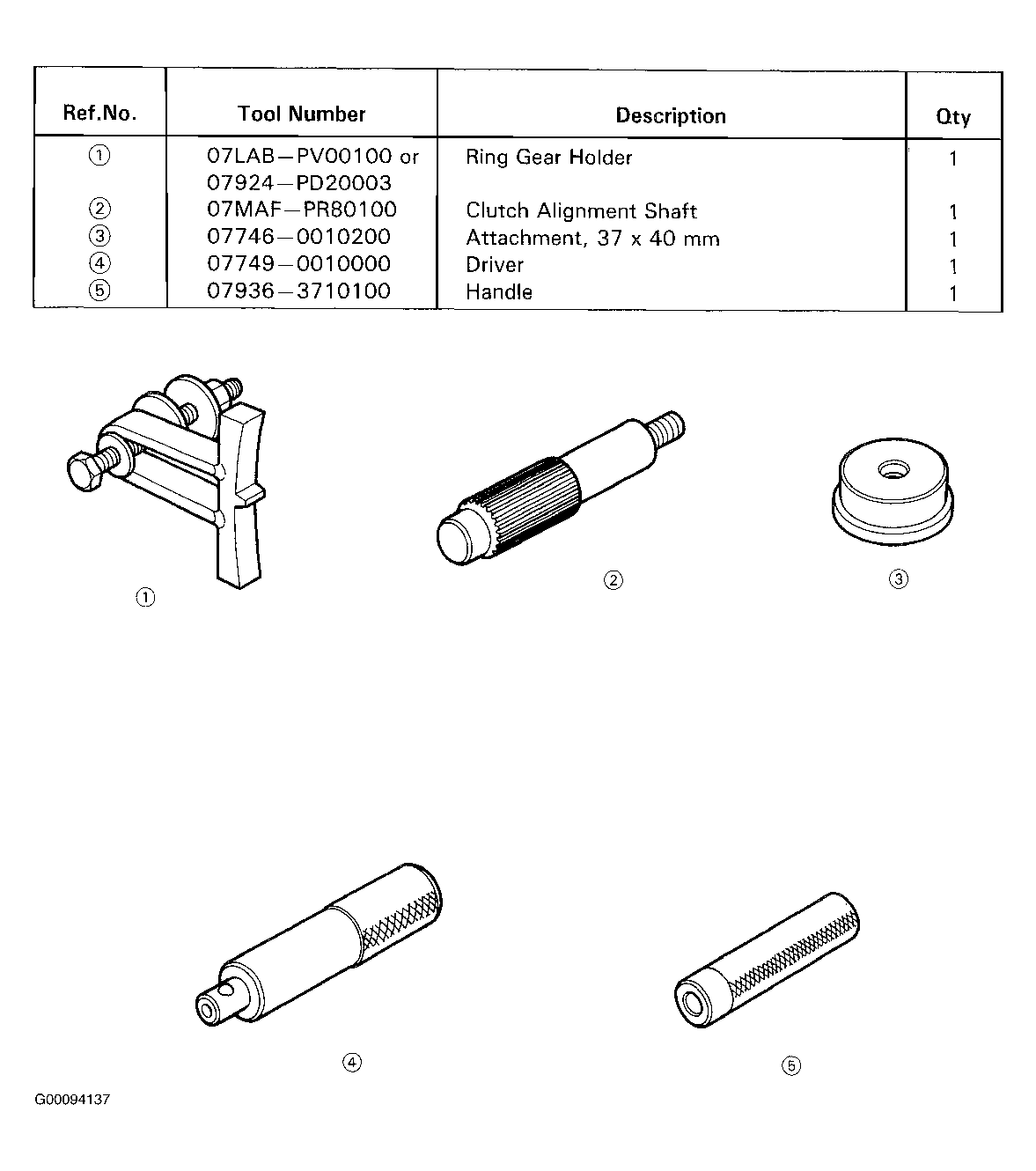

Fig 1: Clutch Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.

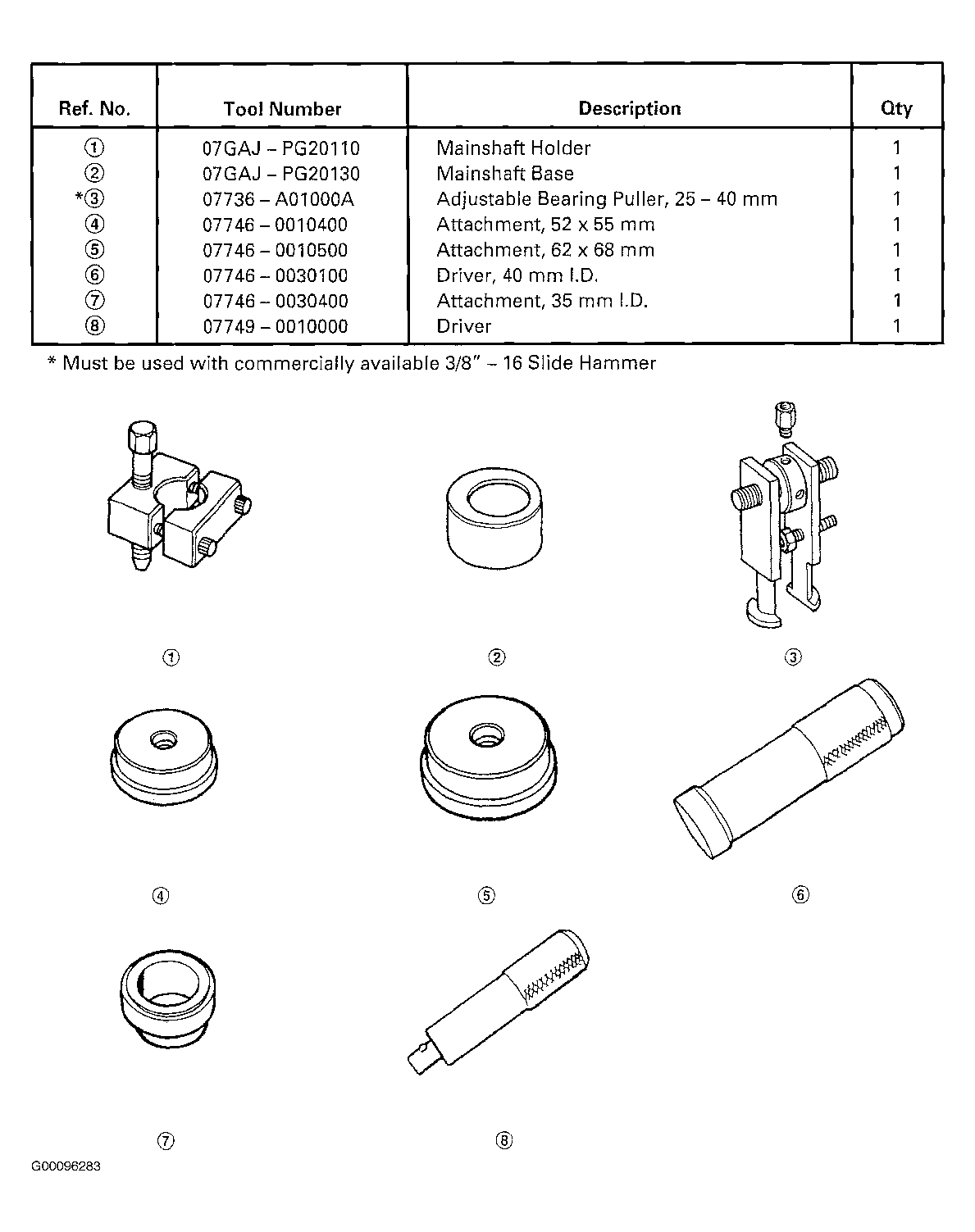

Fig 2: Transmission Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
