Description & Operation: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Acura NSX-T, 1997 Acura NSX, 1996 Acura NSX-T, 1996 Acura NSX, and 1995 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.

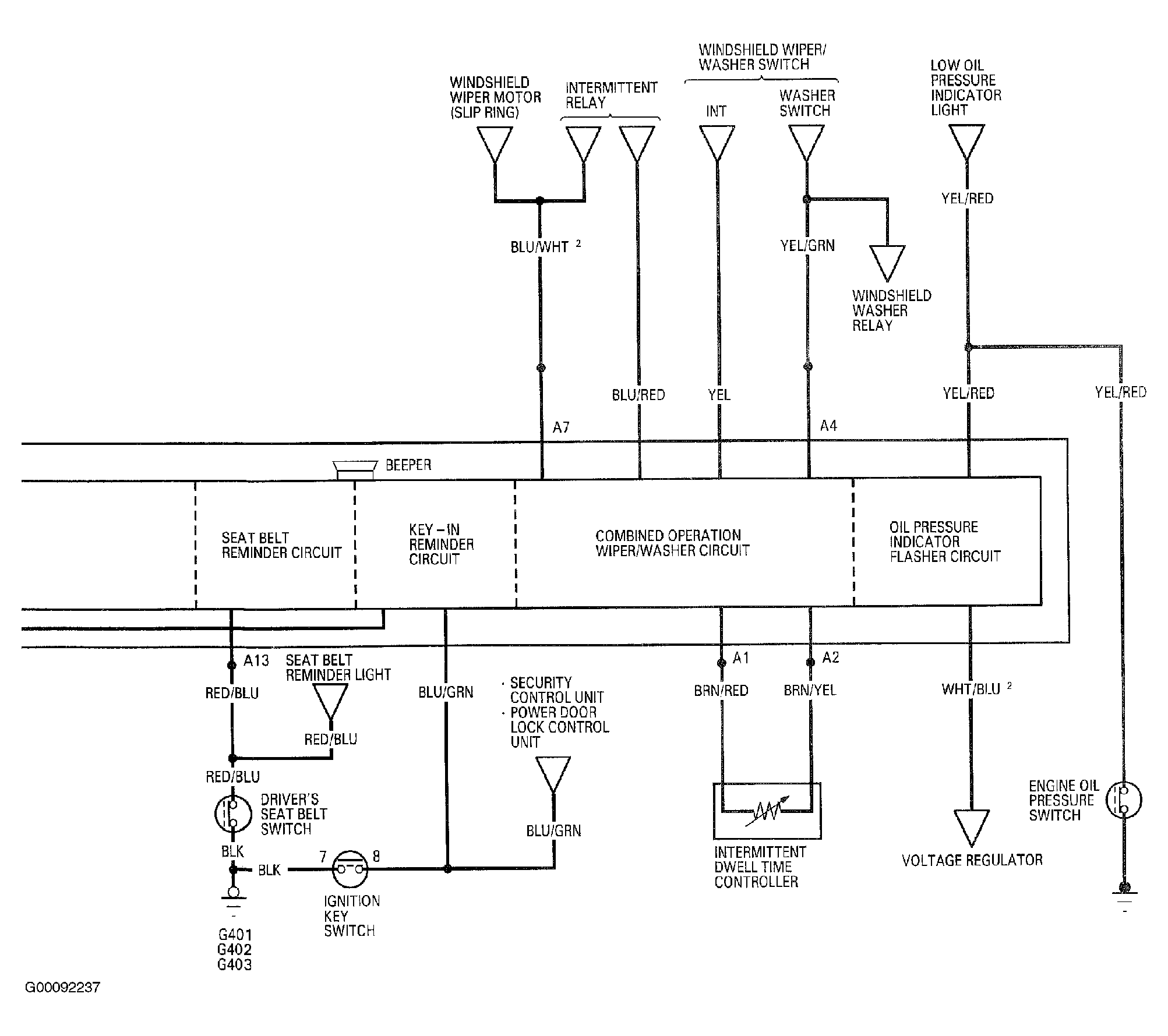

The integrated control unit consists of several circuits combined in a single control unit. The integrated control unit receives battery voltage at all times from fuse 34. With the ignition switch in RUN or START, battery voltage is supplied from fuse 5 to the control unit. The control unit is grounded at G401.
