Component Locations
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Acura NSX-T, 1997 Acura NSX, 1996 Acura NSX-T, 1996 Acura NSX, and 1995 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.

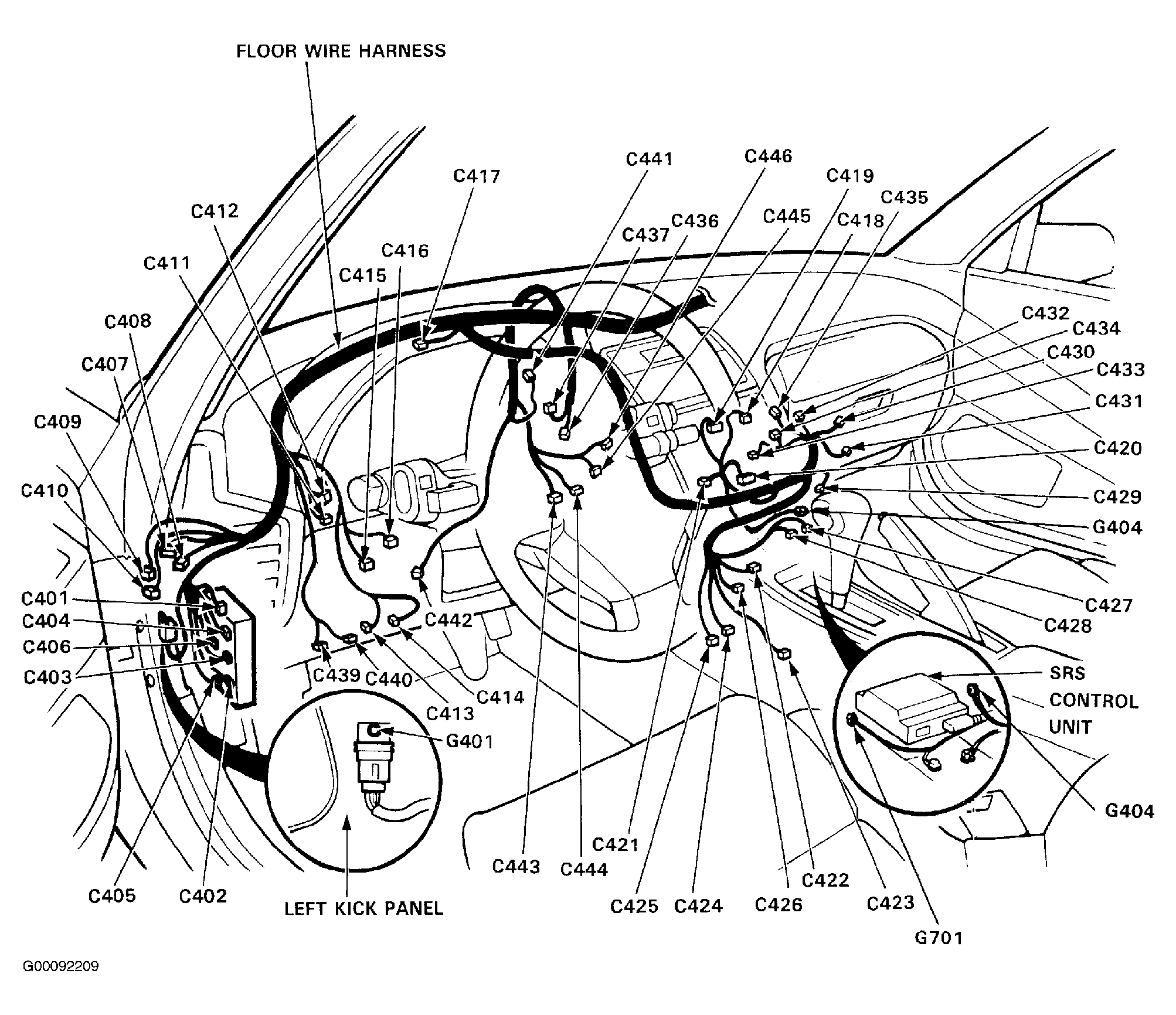

COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Dash Fuse Box | Under left side of dash, at kick panel |
| Driver's Seat Belt Switch | In driver's seat belt buckle |
| Ignition Key Switch | Underside of steering column, on ignition switch |
| Integrated Control Unit | On front of dash fuse box |
| Left Door Switch | Rear of left door |
| Relay Box | Right side of front compartment |
| Right Door Switch | Rear of right door |
| C244 (20-BLU) | Behind right kick panel |
| C401 (16-GRN) | On integrated control unit, on dash fuse box |
| C402 (12-BRN) | On rear of dash fuse box |
| C403 (14-BRN) | On rear of dash fuse box |
| C404 (16-BRN) | On rear of dash fuse box |
| C405 (5-BRN) | On rear of dash fuse box |
| C406 (18-BRN) | On rear of dash fuse box |
| C409 (18-GRY) | Behind left kick panel, on bracket |
| C444 (18-GRY) | Behind dash, right of steering column |
| C445 (8-GRY) | Behind dash, right of steering column |
| C472 (14-GRY) | Behind right kick panel |
| C521 (20-BRN) | On rear of dash fuse box |
| C525 (6-GRY) | Under left seat |
| C615 (2-GRY) | Rear of left door |
| C660 (2-GRY) | Rear of right door |
| C786 (2-BLU/GRY) | Right side of left seat |
| C909 | On integrated control unit, front of dash fuse box |
| G401 | Behind left kick panel |
