DTC Set

NOTE: For testing on ABS indicator light does not come on, and ABS indicator light does not go off, see SYSTEM TESTS . To retrieve DTCs, see SELF-DIAGNOSTIC SYSTEM .

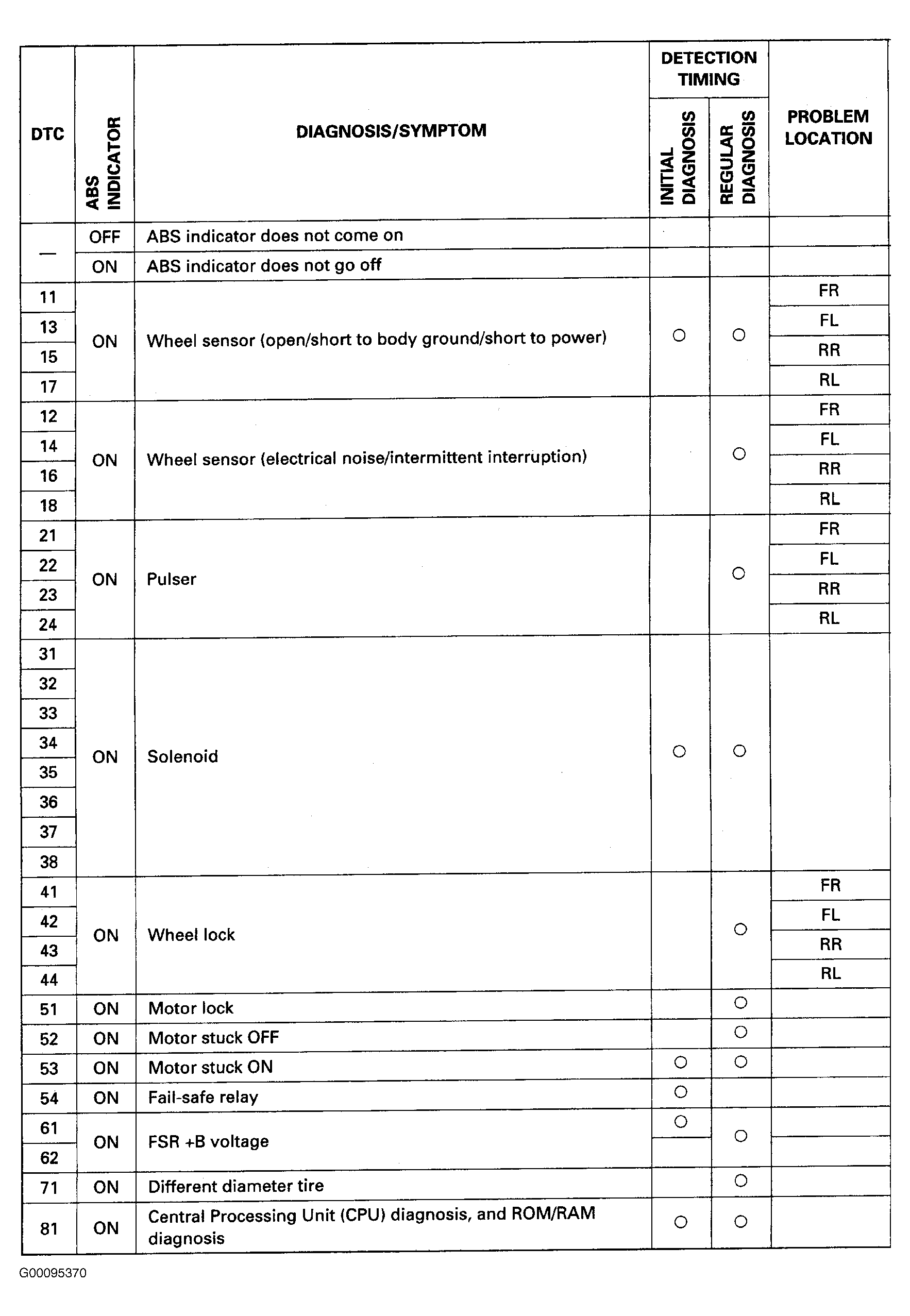

Fig 1: Trouble Shooting Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
