Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 and Fig 2 .
COMPONENT LOCATIONS

Component Location
Dash Fuse Box Under Driver Side Of Dash, At Kick Panel
Driver Headlight Retractor Brake/Drive Relay Passenger Side Of Front Compartment
Ground G201 & G202 Right Front of Engine Compartment, Near Fuse Box
Ground G401 Behind Left Kick Panel
Ground G402 Behind Right Kick Panel
Ground G403 Center of Rear Bulkhead, Next to Retractable Headlights Control Unit
Driver Headlight Retractor Cut Relay In Sub-Relay Box "B"
Passenger Headlight Retractor Brake/Drive Relay Passenger Side Of Front Compartment
Passenger Headlight Retractor Cut Relay In Sub-Relay Box "B"
Relay Box Passenger Side Of Front Compartment
Retractable Headlights Control Unit On Center Of Rear Bulkhead, In Passenger Compartment
Sub-Relay Box "B" Passenger Side Of Front Compartment
Fig 1: Identifying Headlight Retractor System Components (1 Of 2)
G00093815Courtesy of AMERICAN HONDA MOTOR CO., INC.

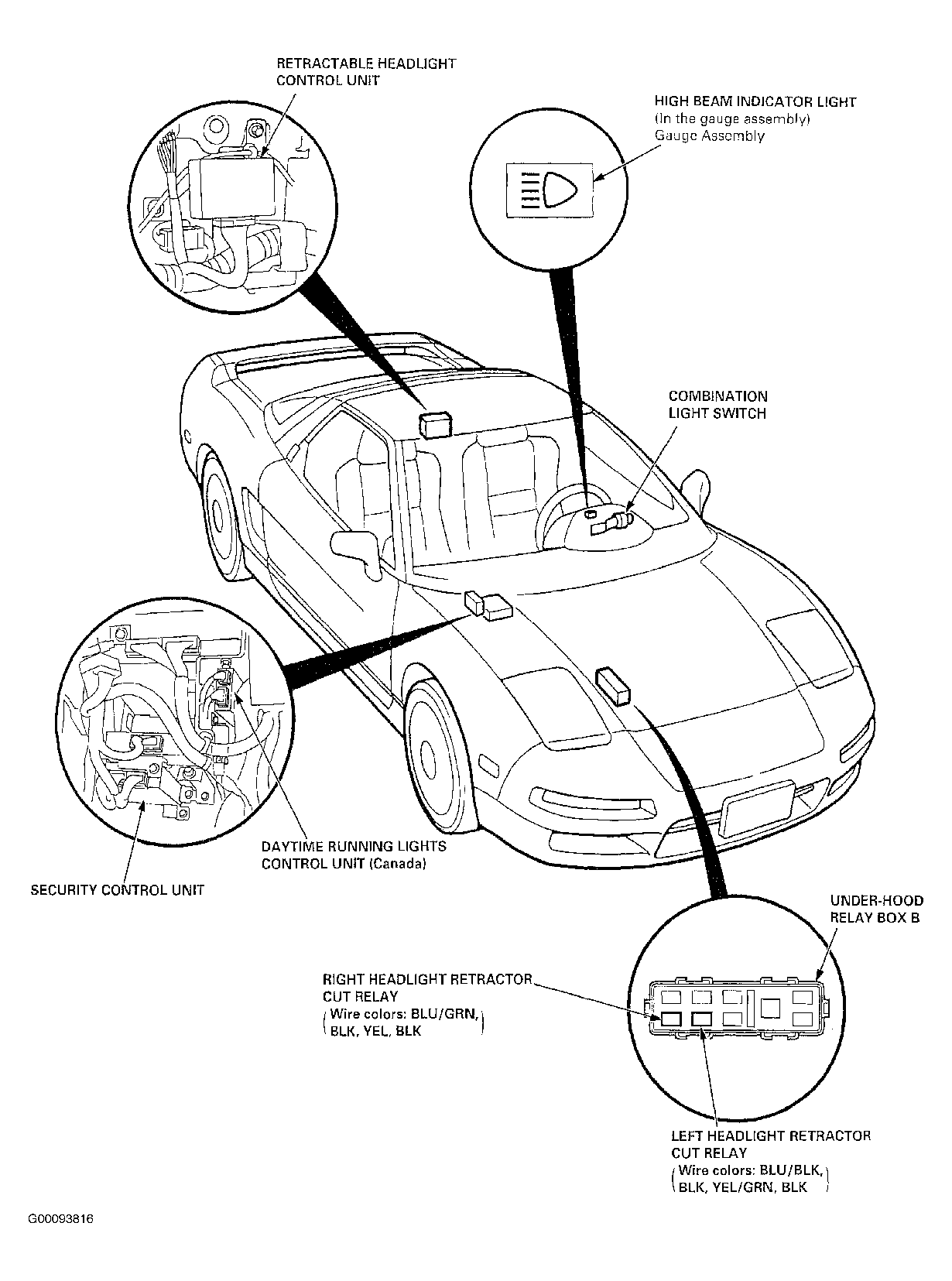

Fig 2: Identifying Headlight Retractor System Components (2 Of 2)
G00093816Courtesy of AMERICAN HONDA MOTOR CO., INC.
