Component Locations

For component locations, see Fig 1 and Fig 2 .

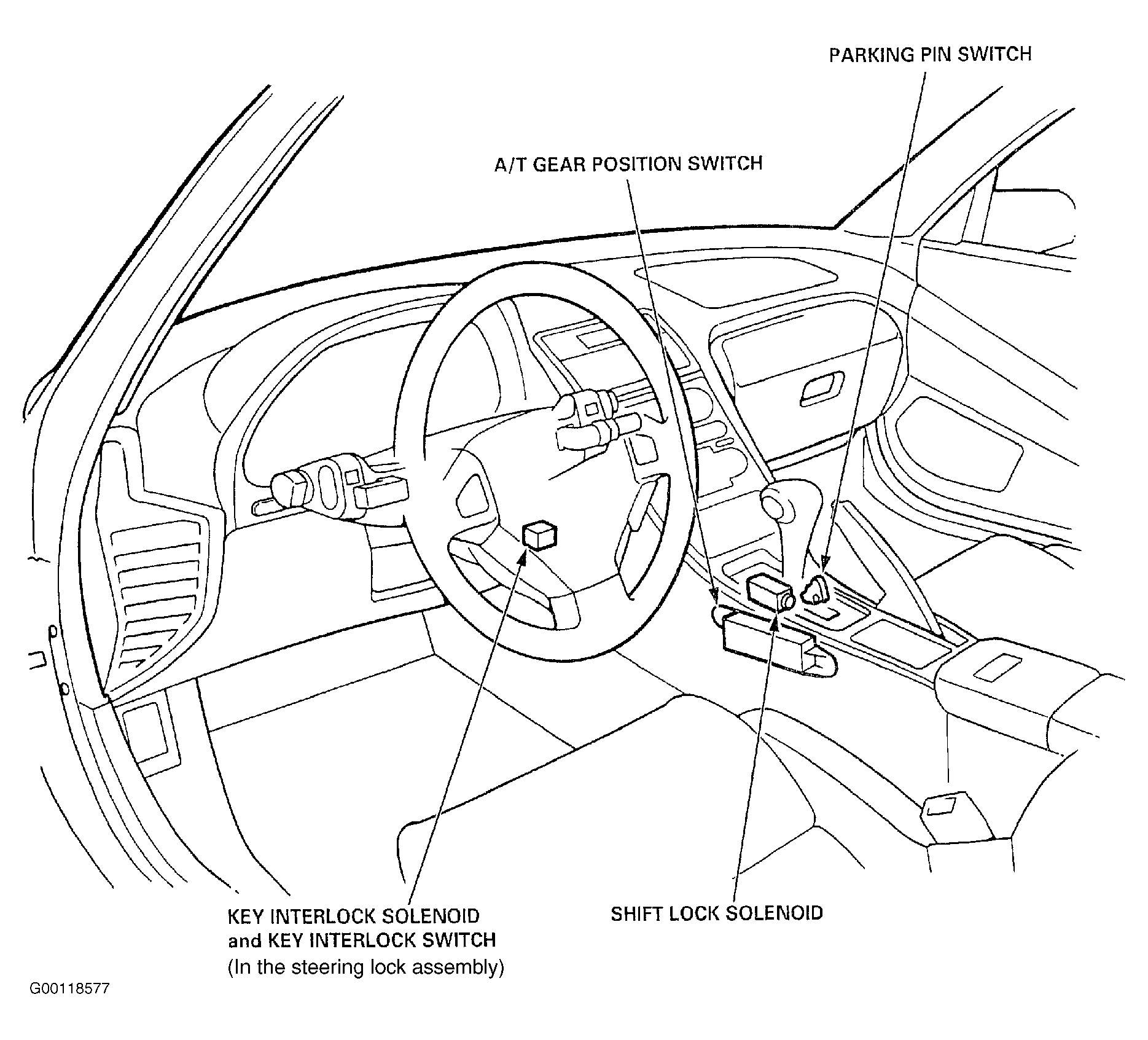

Fig 1: Locating Shift Interlock Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

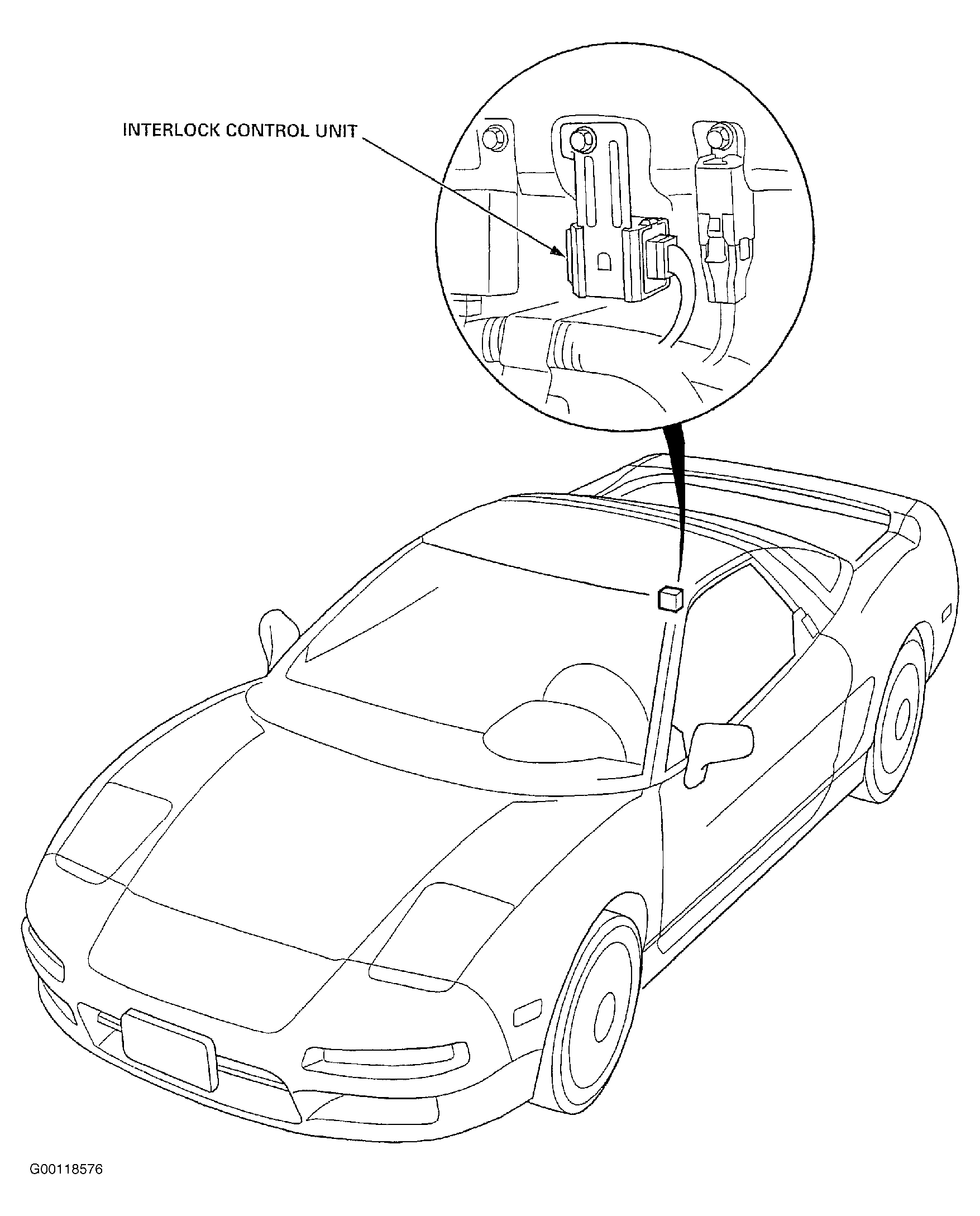

Fig 2: Locating Shift Interlock Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

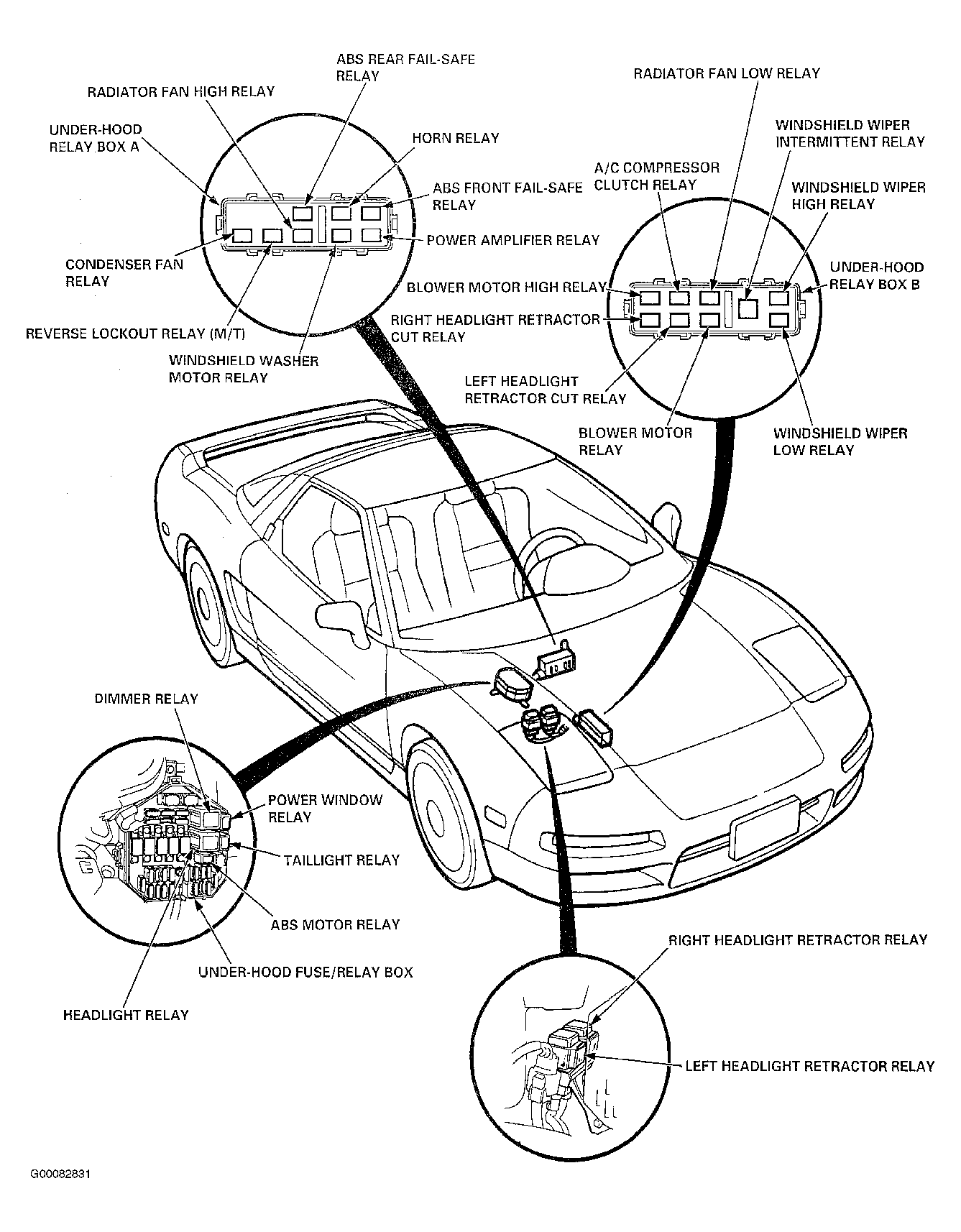

Fig 3: Locating Under-Hood Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.
