Clearing DTCS
NOTE:
This operation can also be done with Honda PGM Tester.
- Connect the SCS service connector to the service check connector (2P) located under the glove box.
- Depress the brake pedal.
- Turn the ignition switch ON (II) while keeping the brake pedal depressed.
- After the ABS indicator comes on, depress the brake pedal.
- After the indicator comes on, depress the brake pedal again.
- After the indicator goes off, release the brake pedal again.

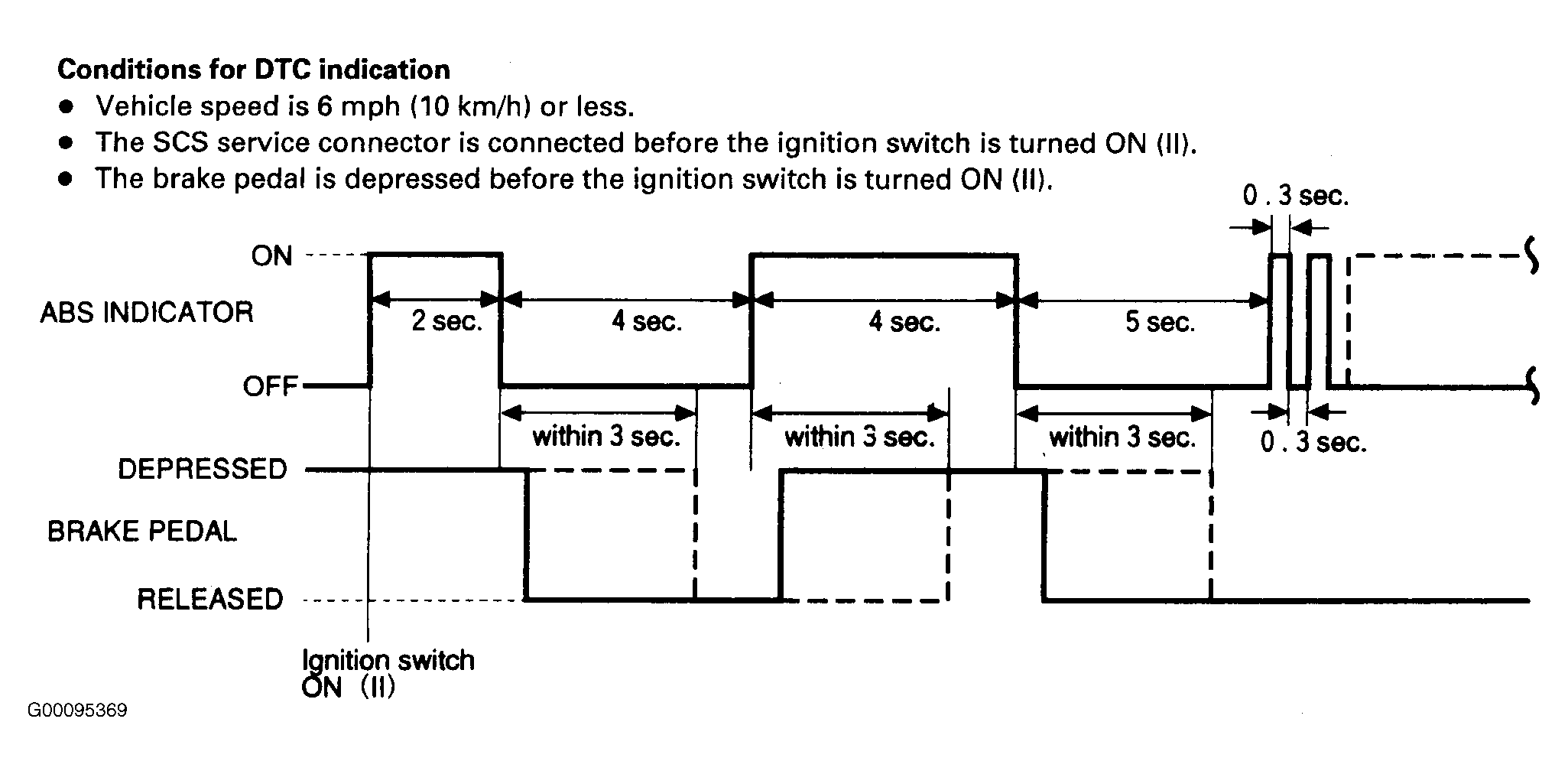

- After a few seconds, the ABS indicator blinks twice and the DTC is cleared. See Fig 1 If the indicator does not blink twice, repeat steps 1-6. If the indicator stays ON after the indicator blinks twice, check the DTC because a problem was detected during initial diagnosis before shifting to DTC clearing mode.
- Turn the ignition switch OFF, remove the SCS service connector.
