Pin Voltage Tests

NOTE: For pin values, see Fig 1 and Fig 2 .

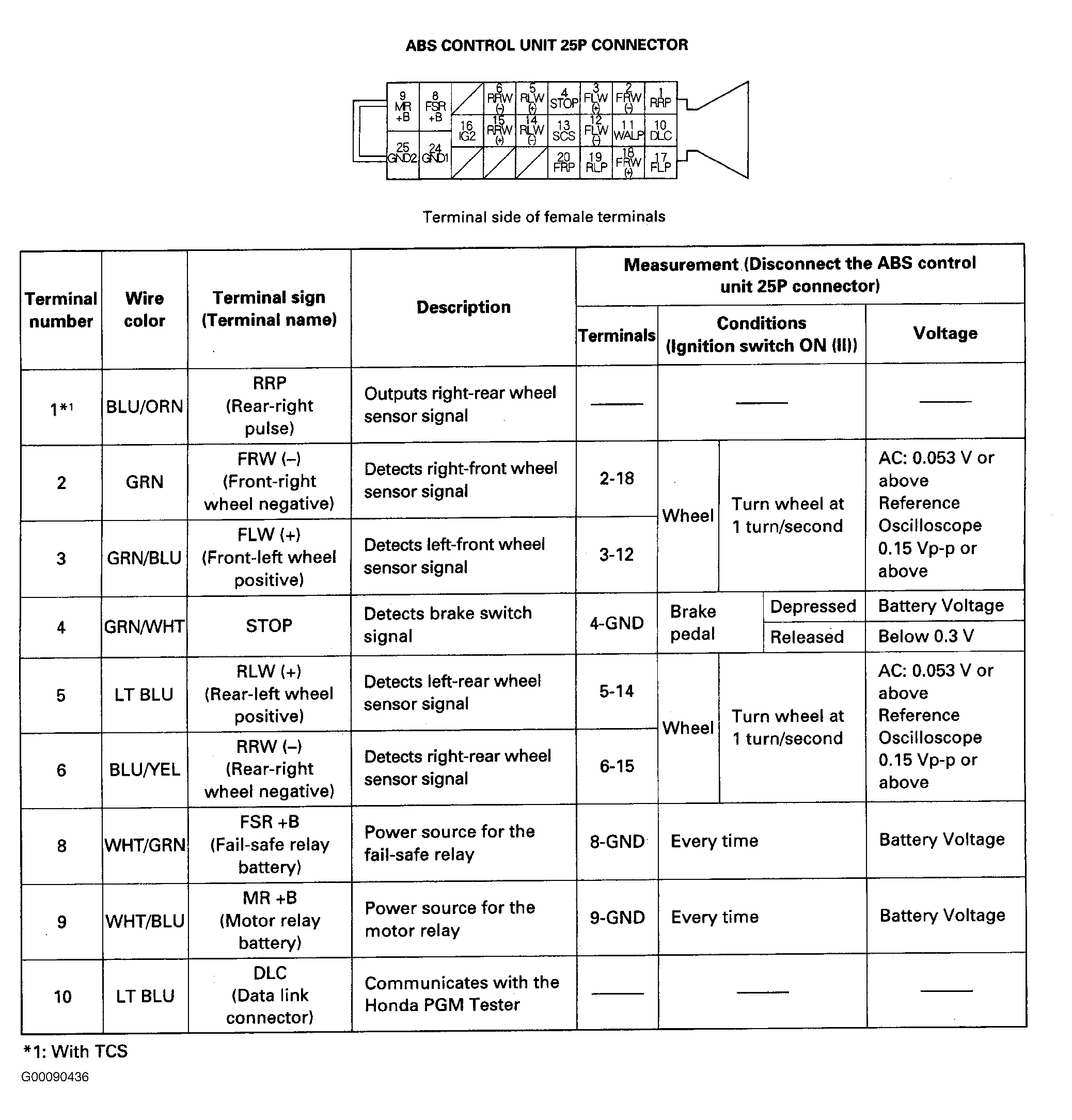

Fig 1: ABS Control Unit 25P Connector No. 1-10 (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

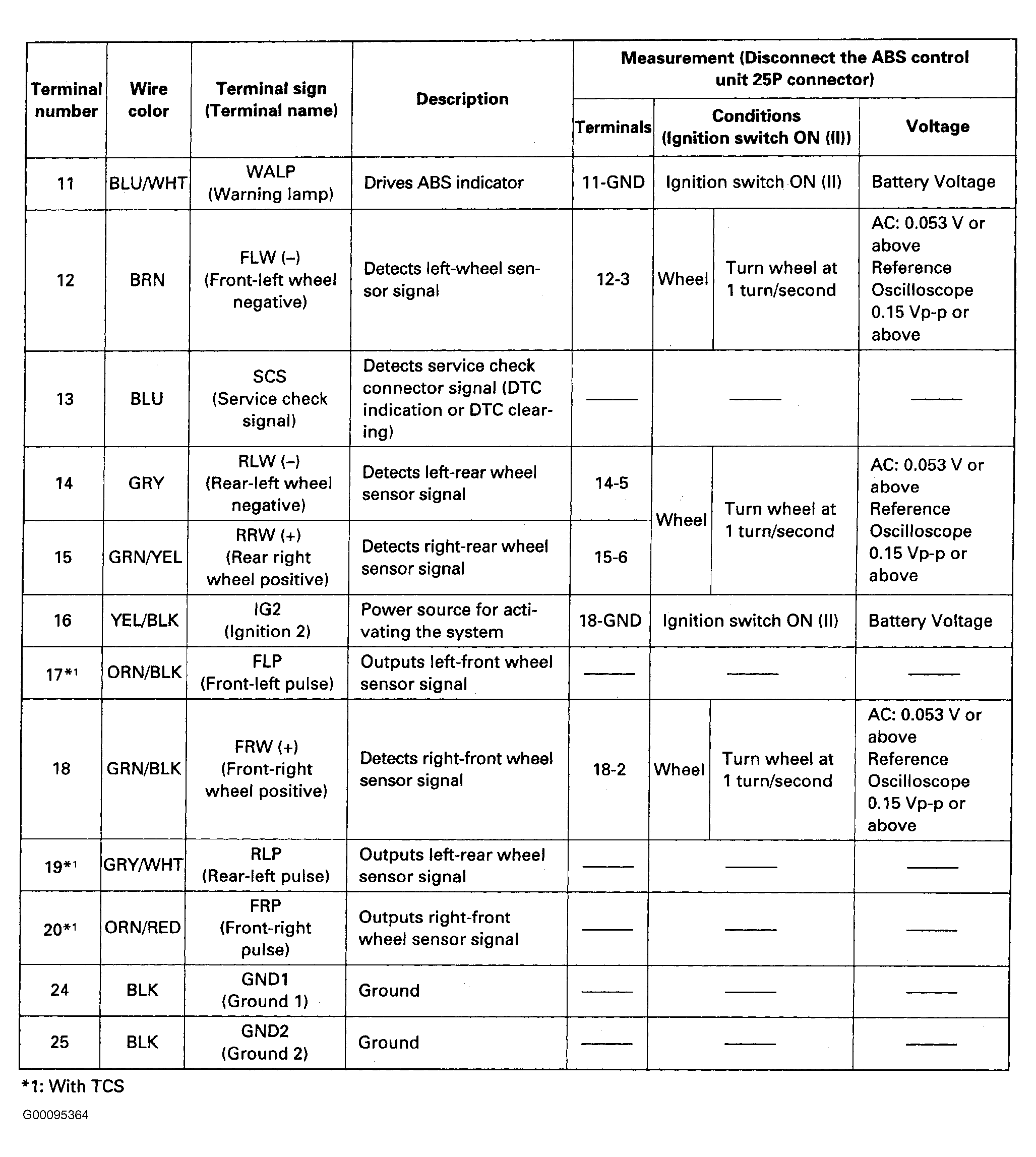

Fig 2: ABS Control Unit 25P Connector No. 11-25 (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
