Erasing DTC Memory Using Honda PGM Tester

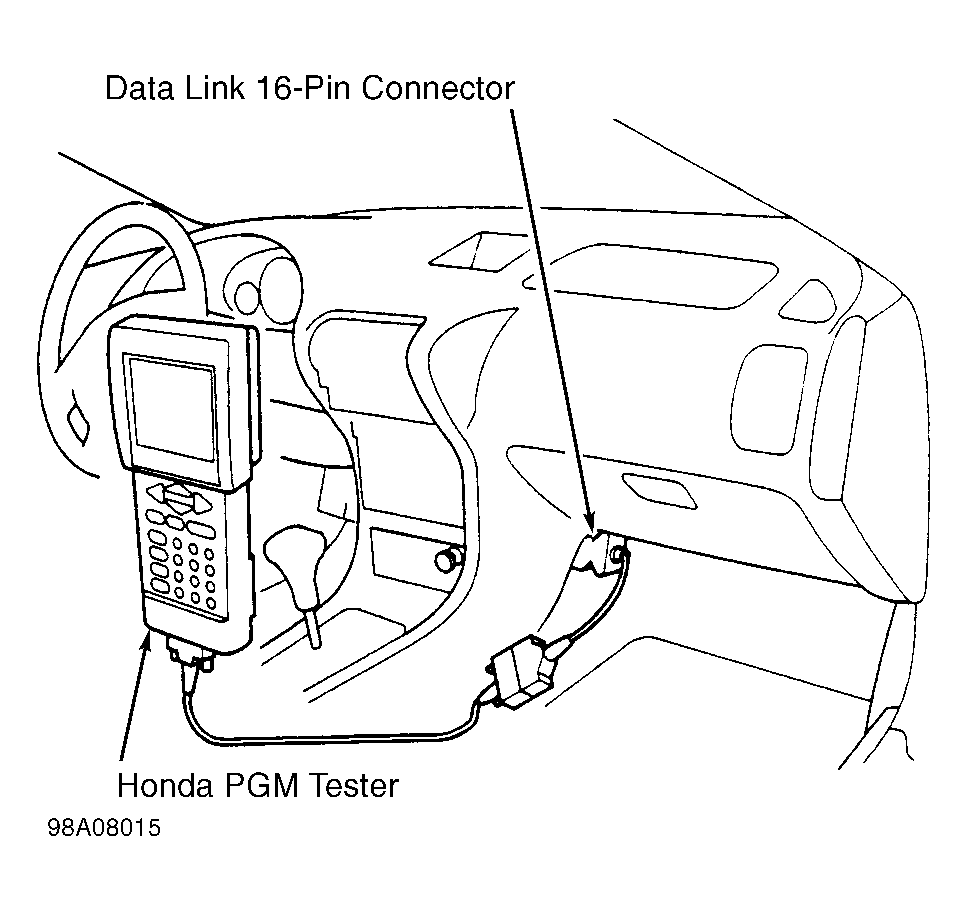

Connect Honda PGM Tester to 16-pin data link connector and follow tester prompts to erase DTC. See Figure.

NOTE: DO NOT use a jumper wire in place of SCS service connector. Jumper wire may be difficult to connect and disconnect quickly enough.
