Component Locations

NOTE: For location of cooling fan system components, use illustrations. See Fig 1 -Fig 5 .

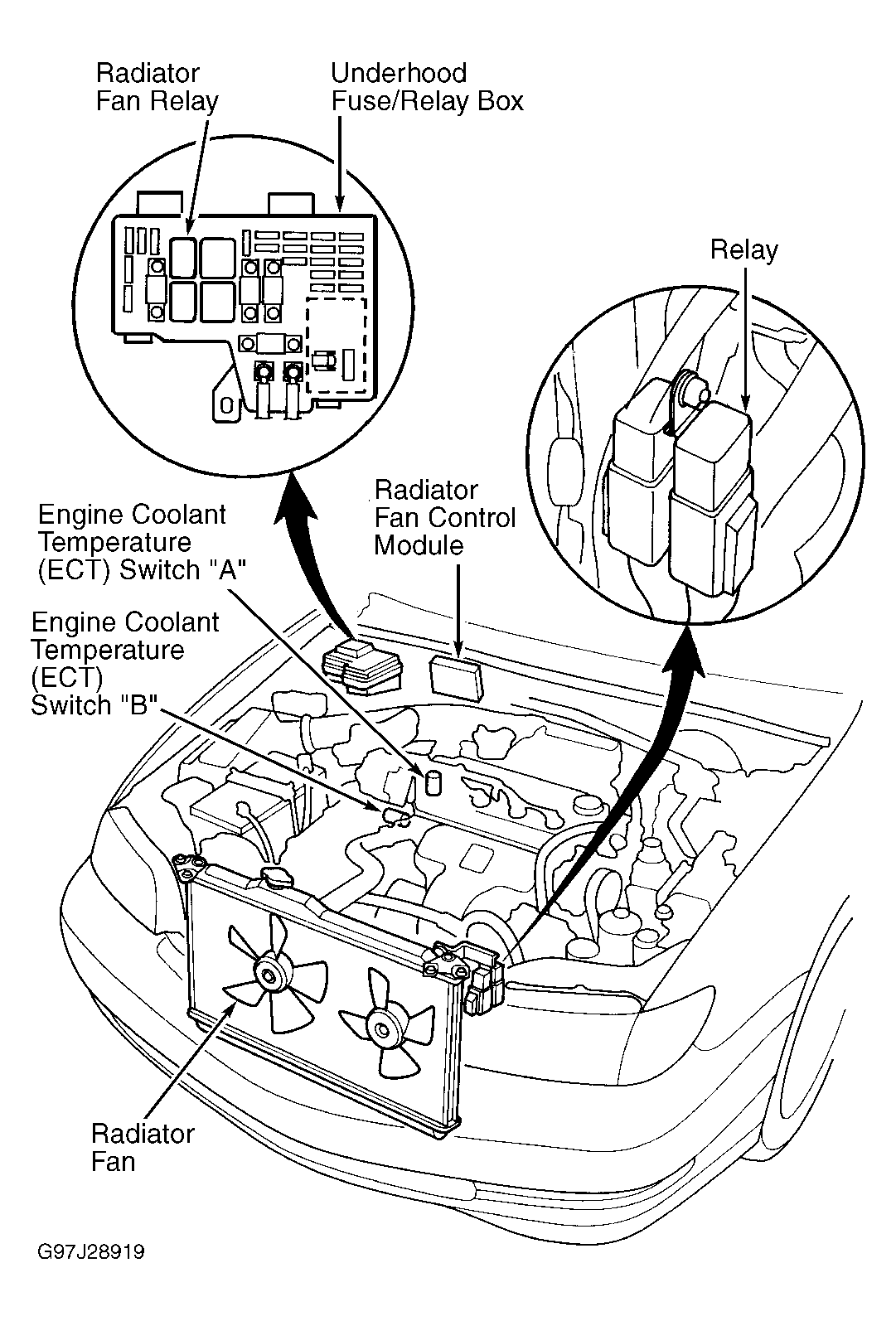

Fig 1: Locating Cooling Fan Components (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

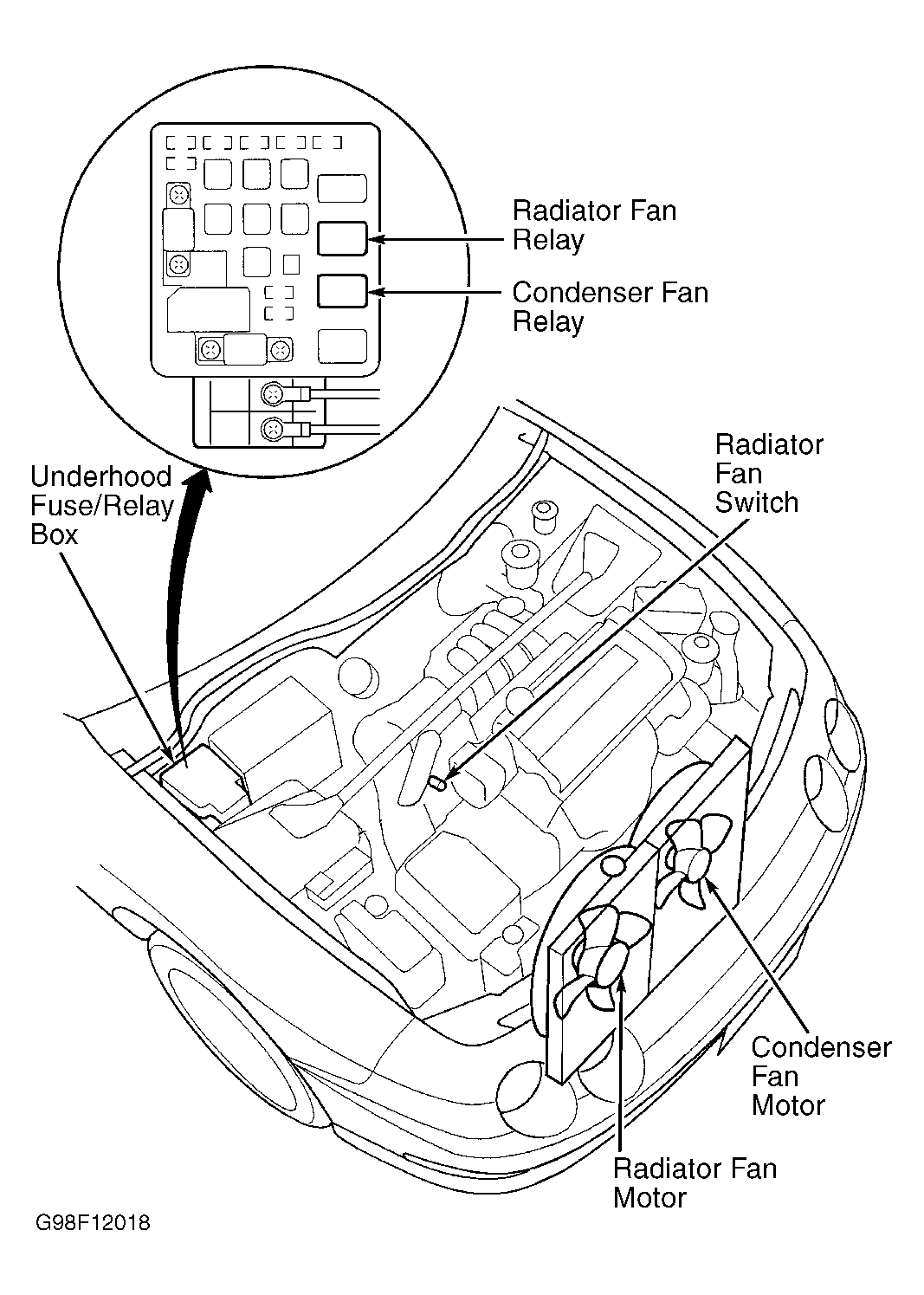

Fig 2: Locating Cooling Fan Components (2.3CL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

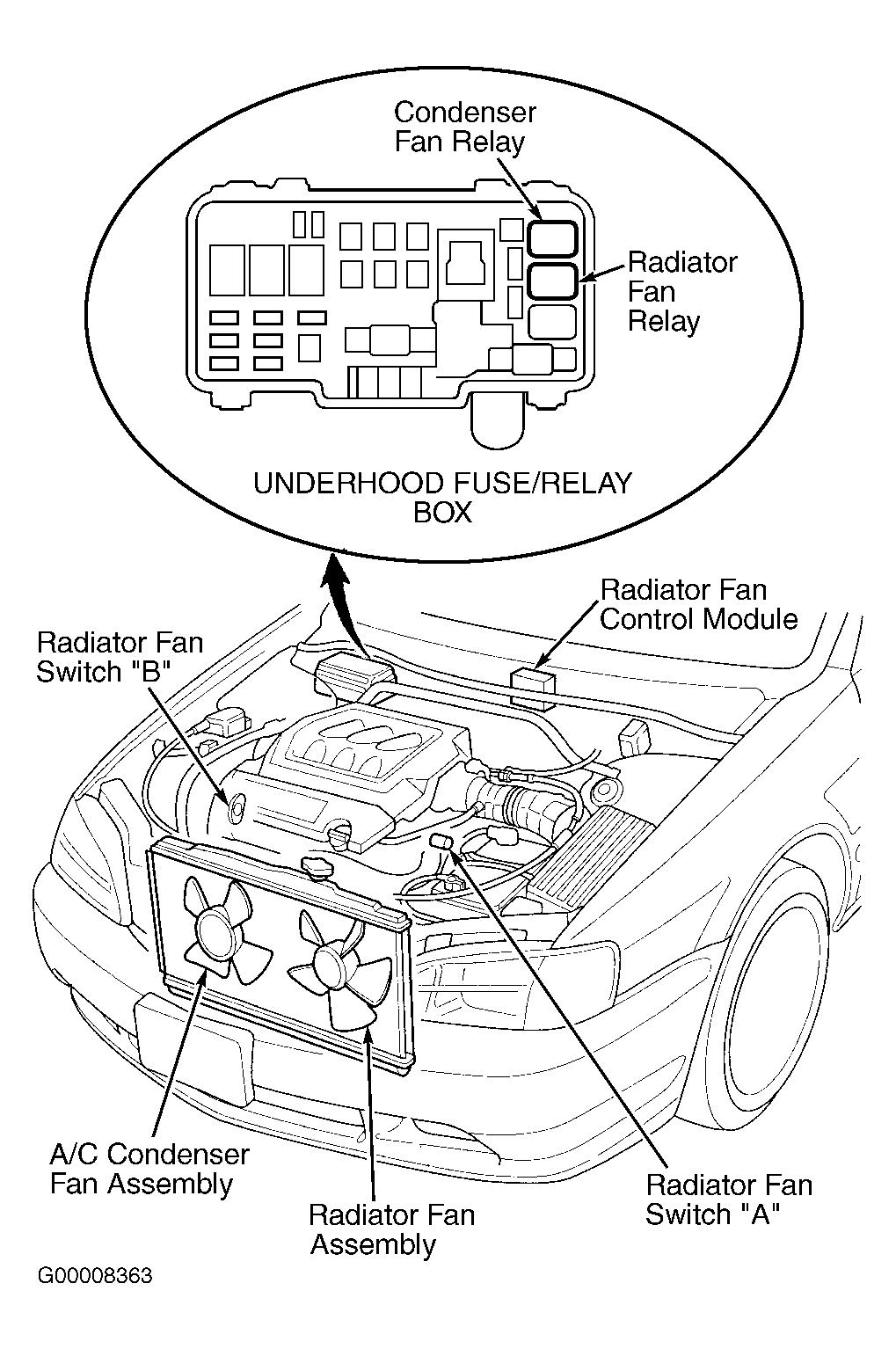

Fig 3: Locating Cooling Fan Components (3.0CL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

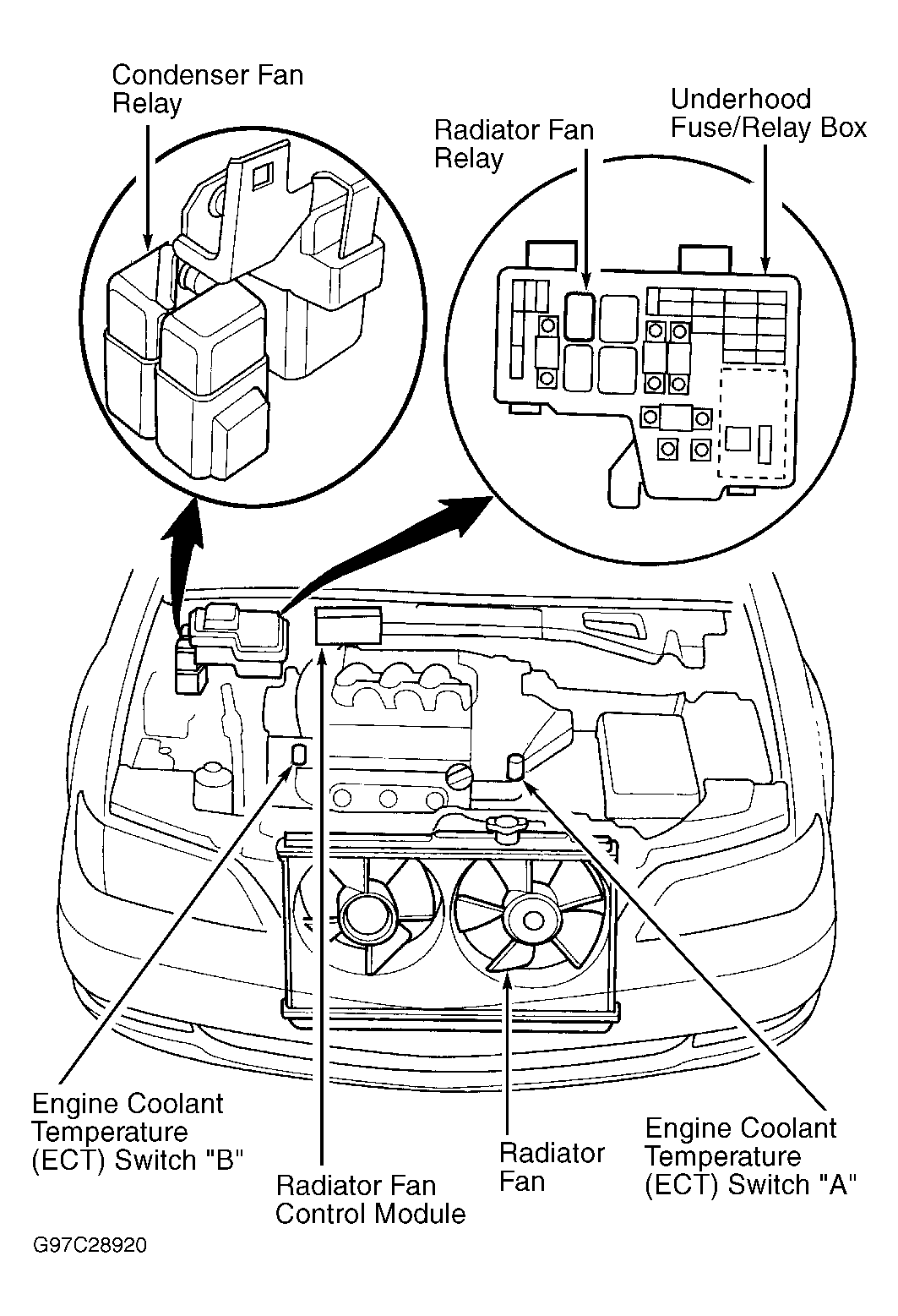

Fig 4: Locating Cooling Fan Components (3.2TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

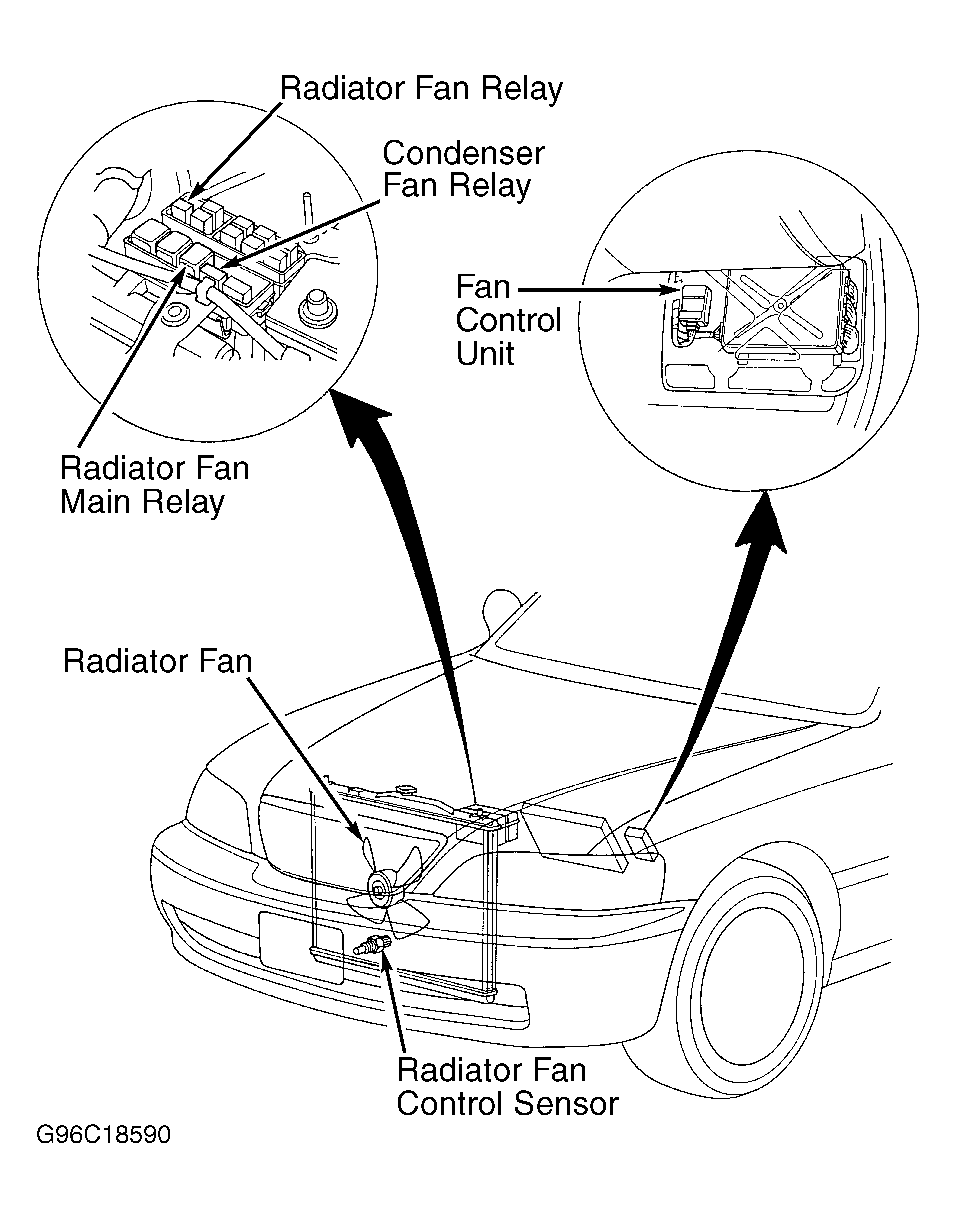

Fig 5: Locating Cooling Fan Components (3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
