Home >> Acura >> 2000 >> 3.5RL >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission Overhaul - M5DA >> Component Disassembly & Reassembly >> Rear Cover >> Notes

Rear Cover: Notes

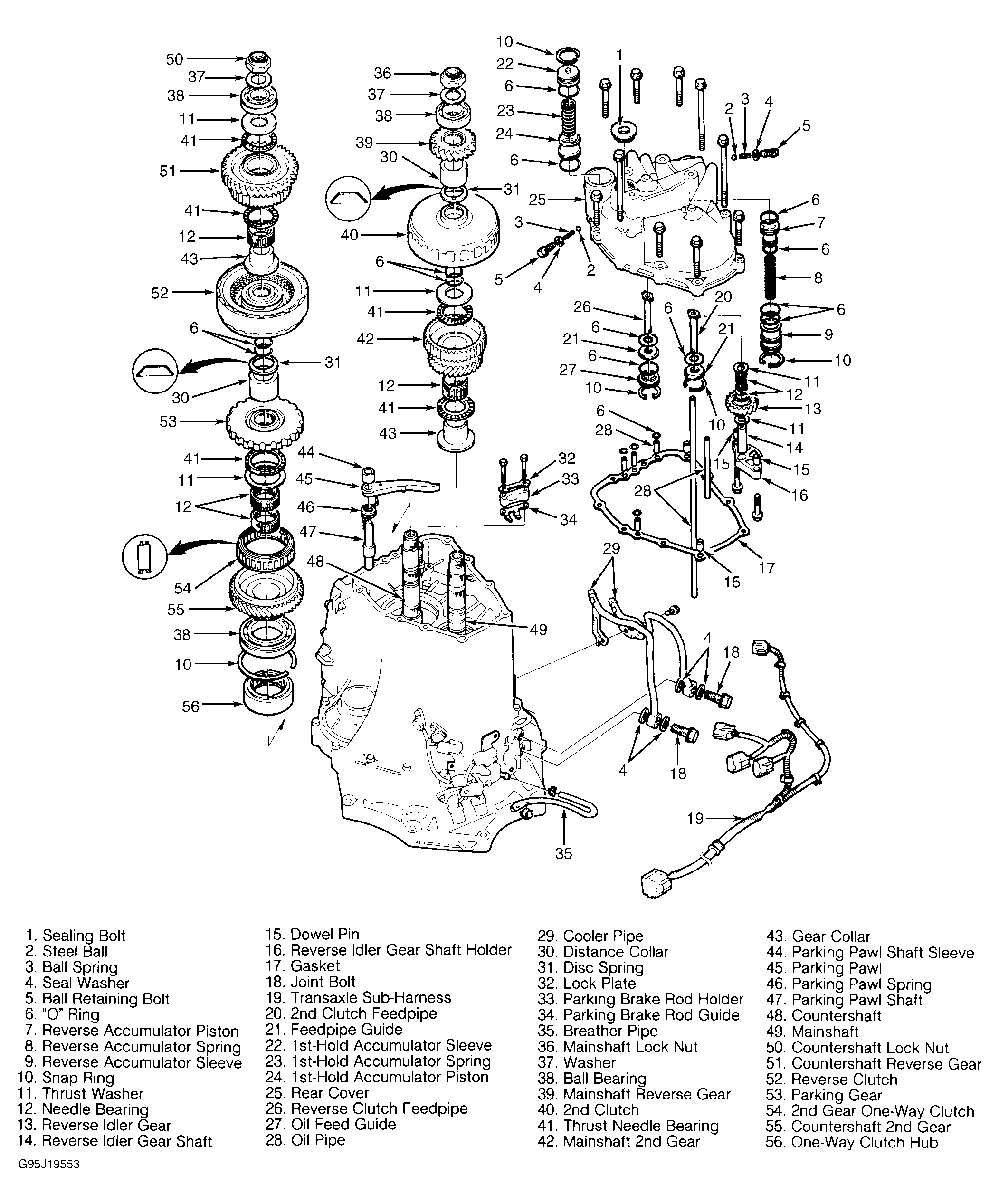

NOTE: Rear cover contains 2nd and reverse clutch feed pipes and reverse idler gear. See Figure.
