Stereo Amplifier Connector End View
Stereo Amplifier Connector End View

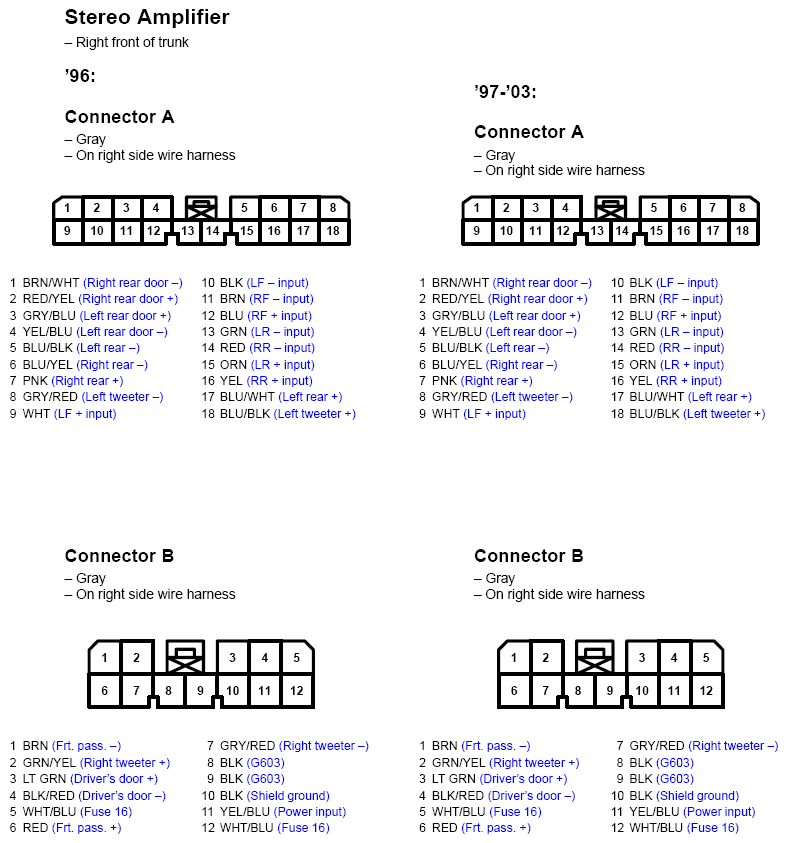

Fig 1: Stereo Amplifier Connector End View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

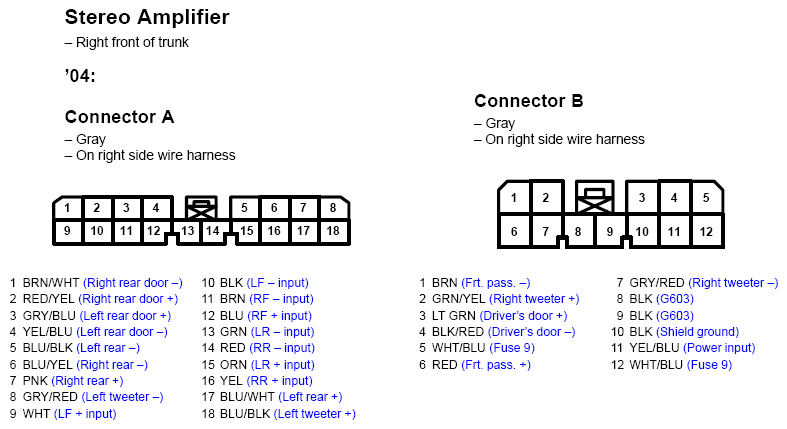

Fig 2: Stereo Amplifier Connector End View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
