Under-Hood Fuse/Relay Box

NOTE: Under-hood fuse/relay box is located in the left side of the engine compartment. See Fig 1 .

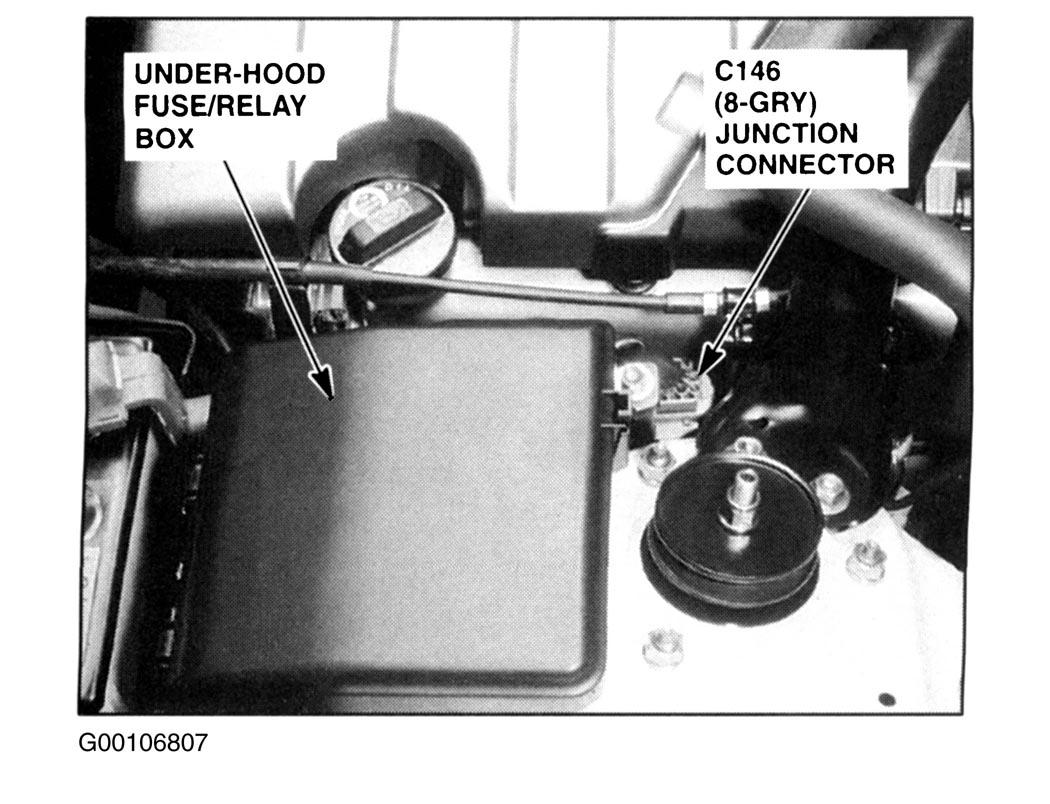

Fig 1: Locating Under-Hood Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

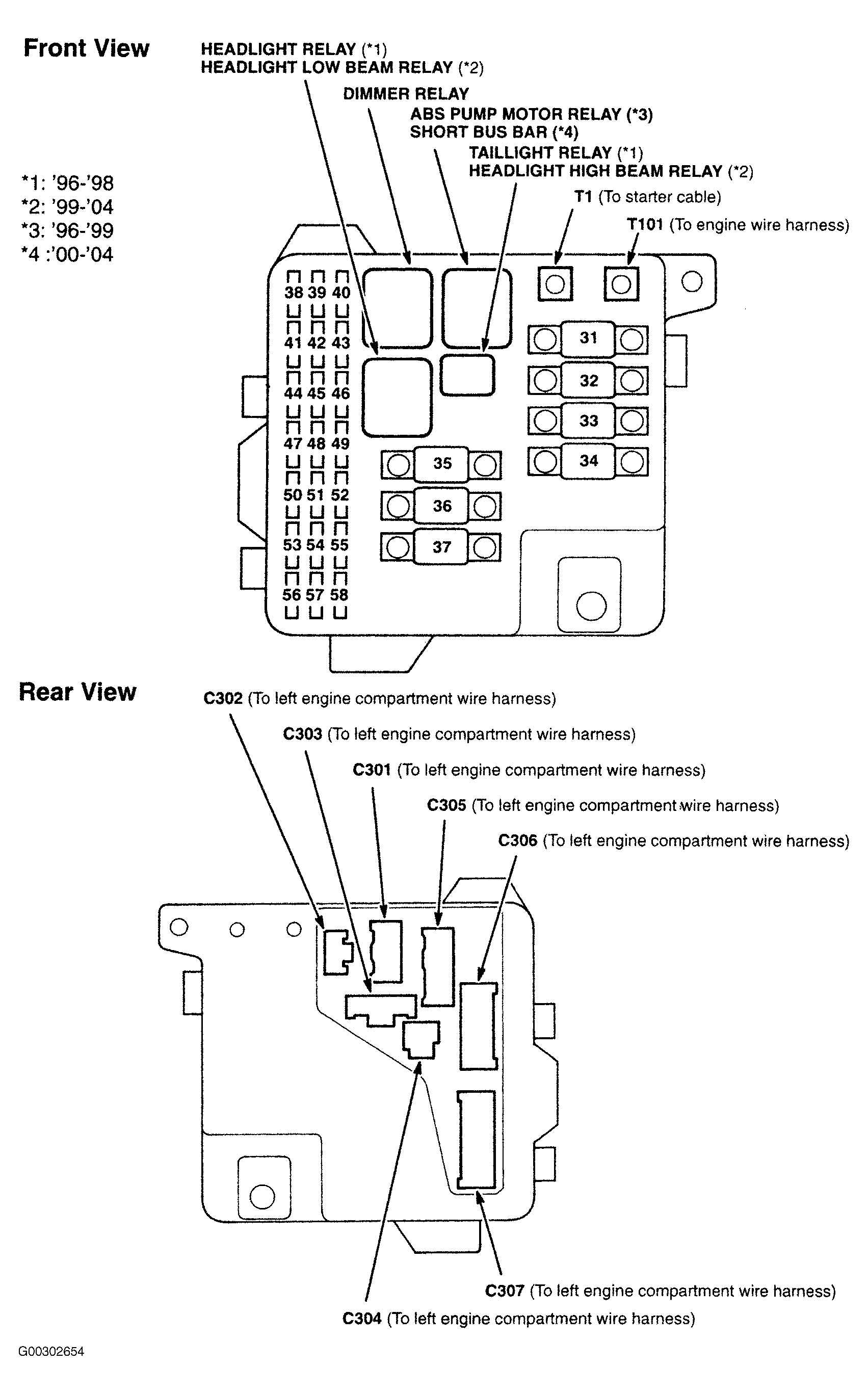

Fig 2: Identifying Under-Hood Fuse/Relay Box Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

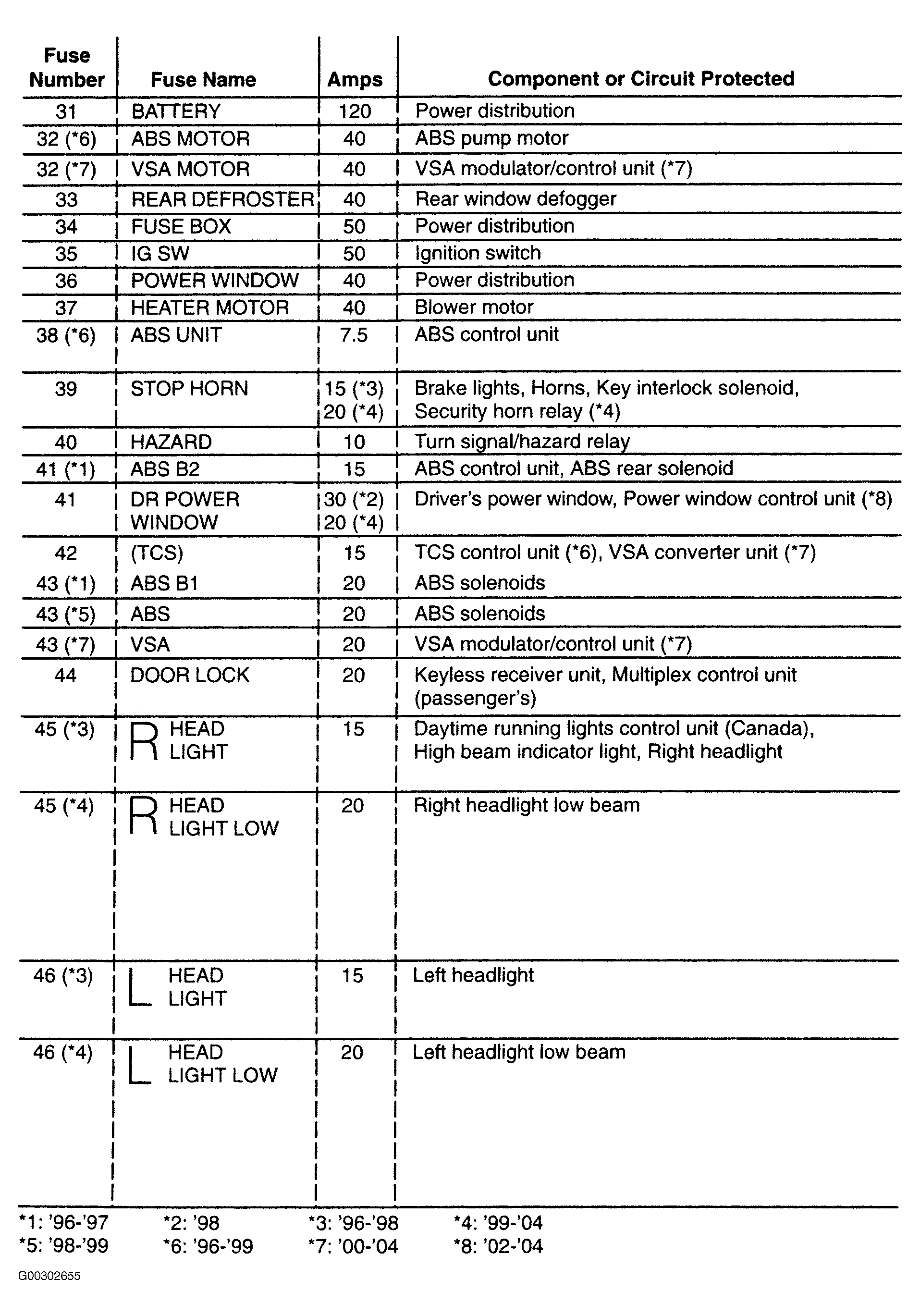

Fig 3: Under-Hood Fuse/Relay Box Legend (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

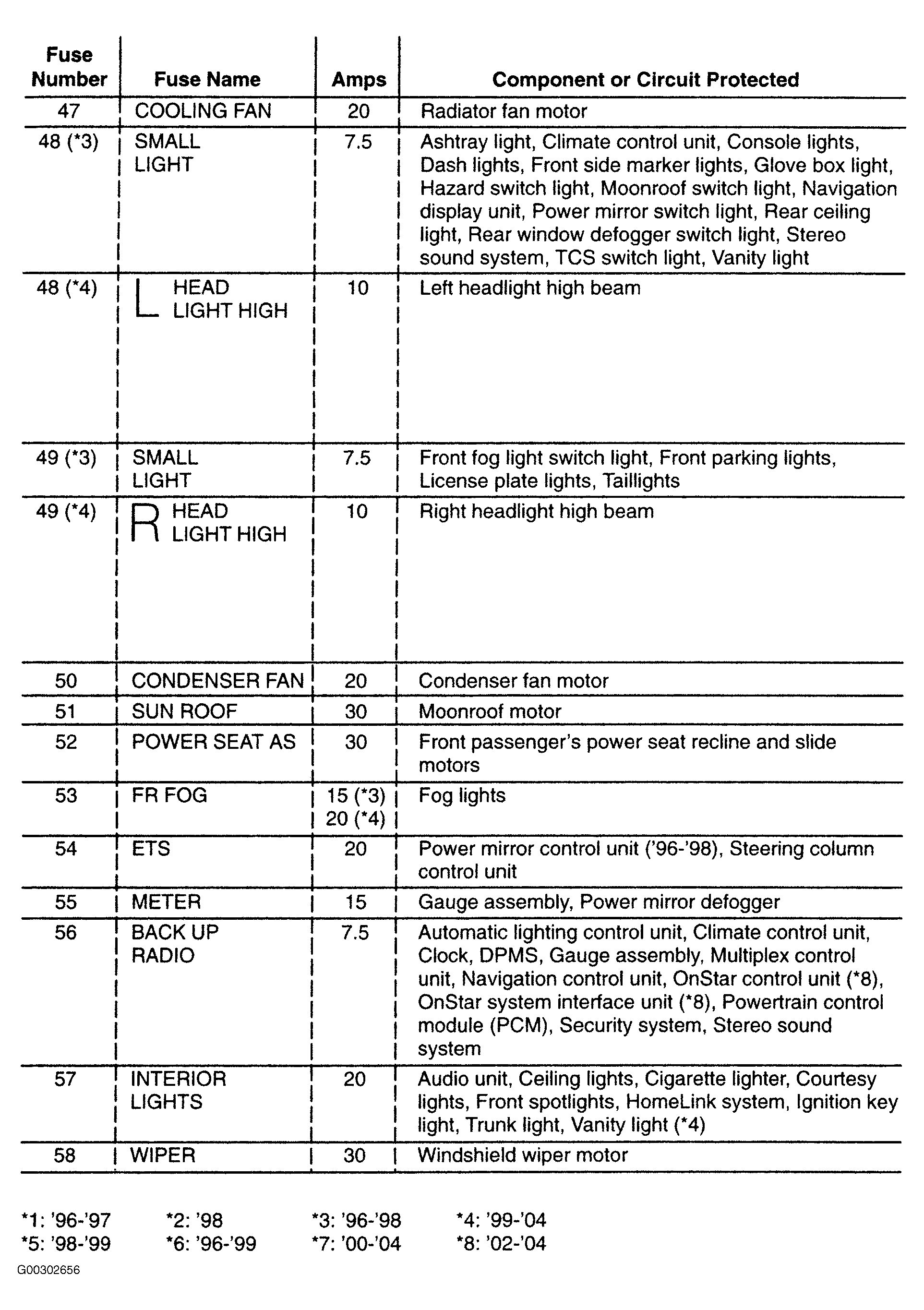

Fig 4: Under-Hood Fuse/Relay Box Legend (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
