OEM Connector End Views
>>
Connector End Views
>>
C421 Connector End View
C421 Connector End View

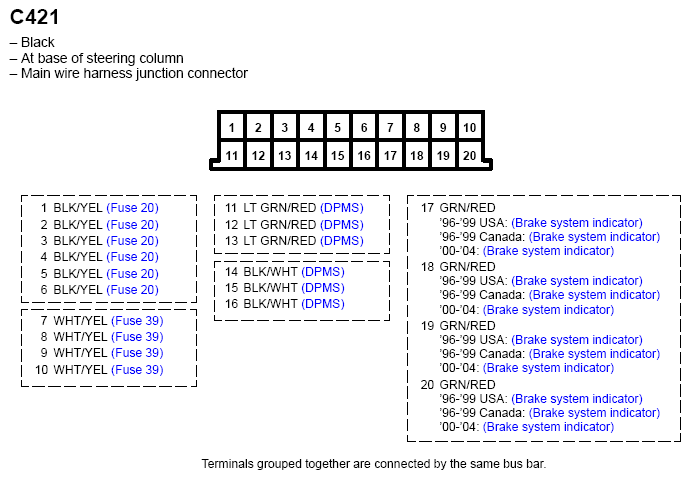

Fig 1: C421 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
