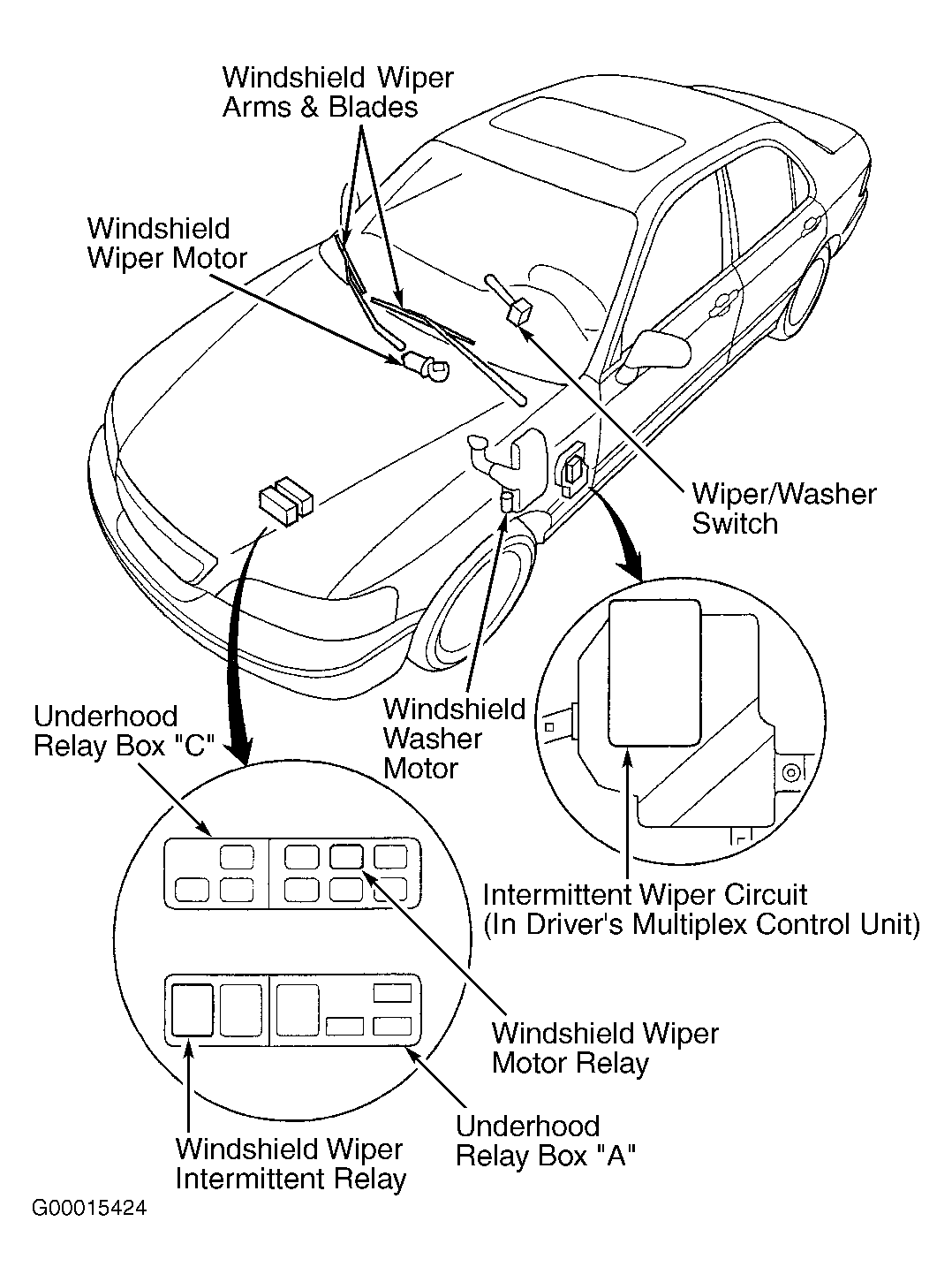

Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Intermittent Wiper Relay (3.2TL) | Left Rear Of Engine Compartment, Behind Strut Tower |
| Intermittent Wiper Relay (3.5RL) | In Underhood Relay Box "A" |
| Driver's Multiplex Control Unit | Behind Left Kick Panel |
| Passenger's Multiplex Control Unit | Behind Right Kick Panel |
| Washer Reservoir & Motor (3.2TL) | Right Front Corner Of Engine Compartment |
| Washer Reservoir & Motor (3.5RL) | Left Rear Corner Of Engine Compartment |
| Wiper/Washer Switch | On Right Side Of Steering Column |
| Wiper Motor Relay (3.5RL) | In Underhood Relay Box "C" |
