Shift Lever Removal

  1. Shift the transmission into the R  position.
  2. Remove the console panel. See CONSOLE PANEL REMOVAL/INSTALLATION .
  3. Remove the nut securing the shift cable end (A), then separate the end from the shift lever assembly.

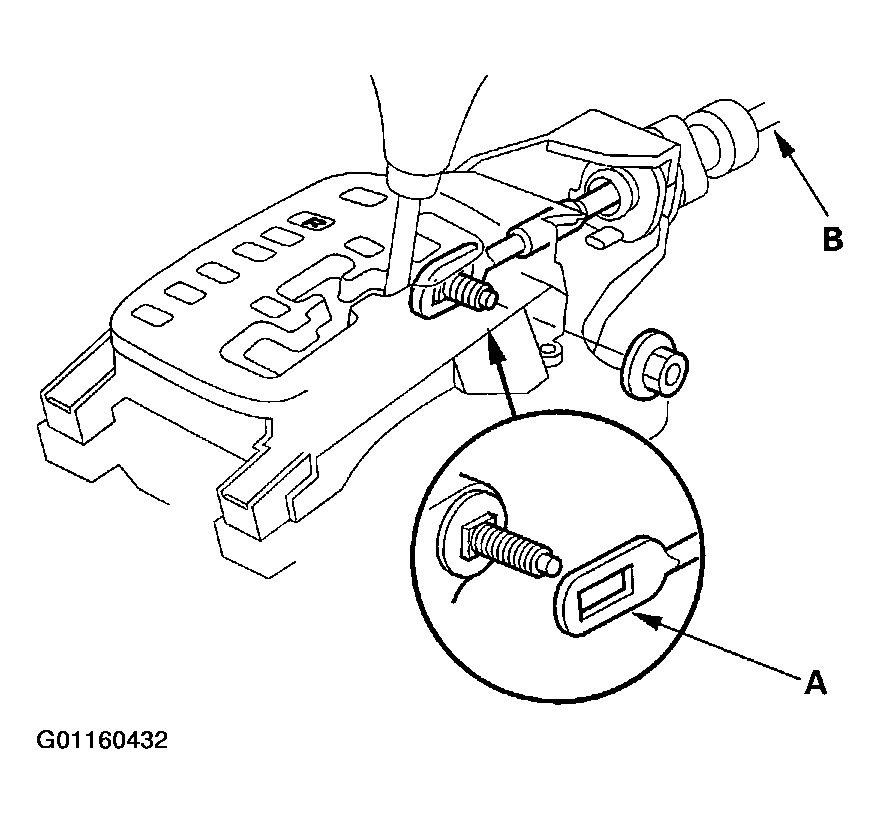

    Fig 1: Removing Nut Securing Shift Cable End
    G01160432Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Rotate the socket holder (A) on the shift cable (B) a quarter turn; the tab (C) on the socket holder will be in the opening of the shift lever bracket base (D). Then slide the holder to remove the shift cable from the shift lever bracket base (D). Do not remove the shift cable by twisting the shift cable guide (E) and damper (F).

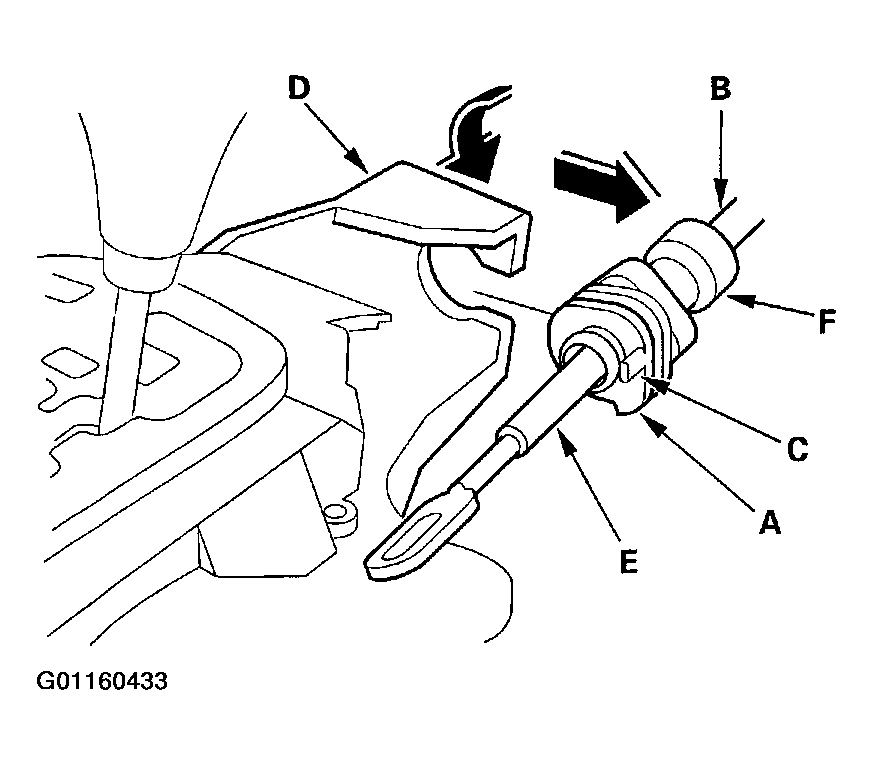

    Fig 2: Rotating Socket Holder
    G01160433Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the shift lock solenoid connector (A) and the transmission gear selection switch connector (B).

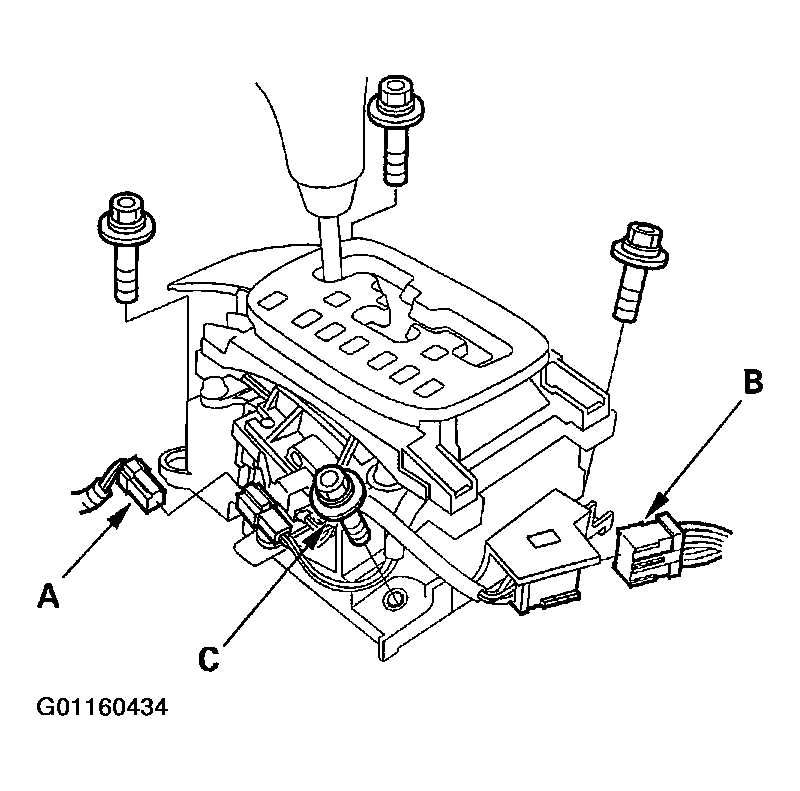

    Fig 3: Disconnecting Shift Lock Solenoid Connector & Transmission Gear Selection Switch Connector
    G01160434Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the four bolts (C) securing the shift lever bracket base, then remove the shift lever assembly.
