Road Test

Special Tools Required

Backprobe Set 07SAZ-001000A (2 required)

1. Warm up the engine to normal operating temperature (the radiator fan comes on).
2. Apply the parking brake, and block rear wheels. Start the engine, then shift to the [D ₅ ] position while pressing the brake pedal. Press the accelerator pedal, and release it suddenly. The engine should not stall.
3. Repeat the same test in the [D ₄ ], [D ₃ ], [2  ] and [1  ] position.
4. Connect the Honda PGM Tester (A), and go to the PGM-FI Data List; then go to step  7. If you don't have a PGM Tester, go to step 5.

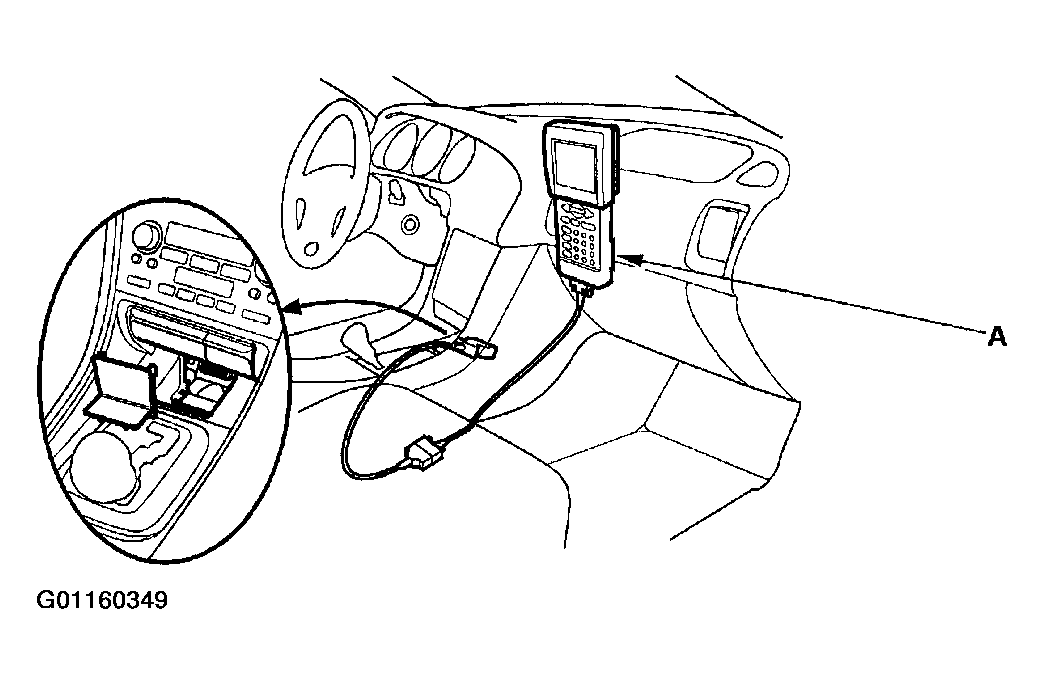

   Fig 1: Connecting PGM Tester

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Remove the center console, then remove the PCM (A).
6. Connect a digital multimeter (B) and the special tools (C) to check voltage between the C27 (+) terminal and B20 (-) or B22 (-) terminal of the PCM.

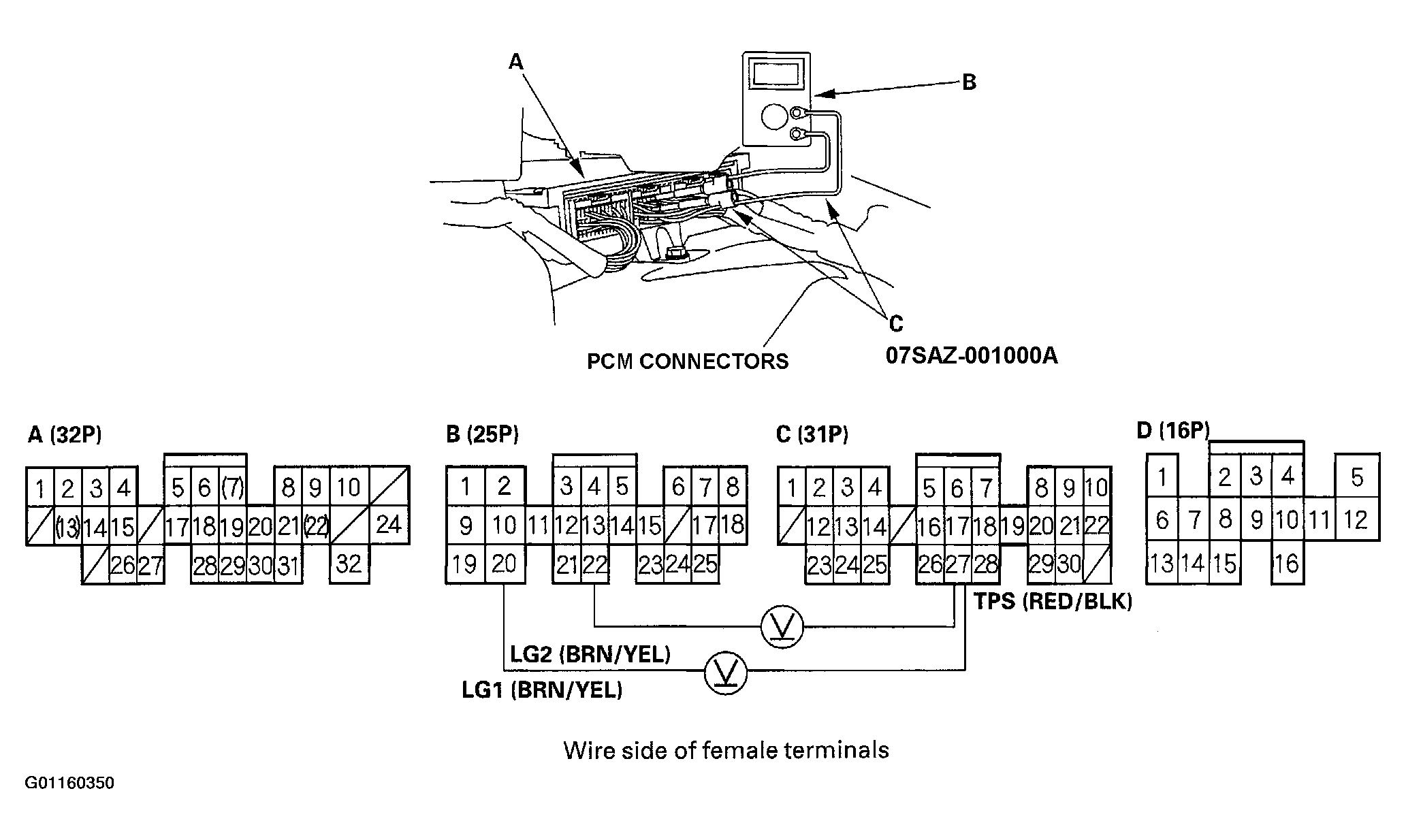

   Fig 2: Connecting Digital Multimeter

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Test-drive the vehicle on a flat road in the [D ₅ ] position. Check for abnormal noise and clutch slippage. While driving, check that the shift points occur at the proper speeds by monitoring the throttle position sensor voltage and comparing your shift point speeds and voltage to those in the table. (The throttle position sensor voltage represents the throttle opening.)

   Premium Model:

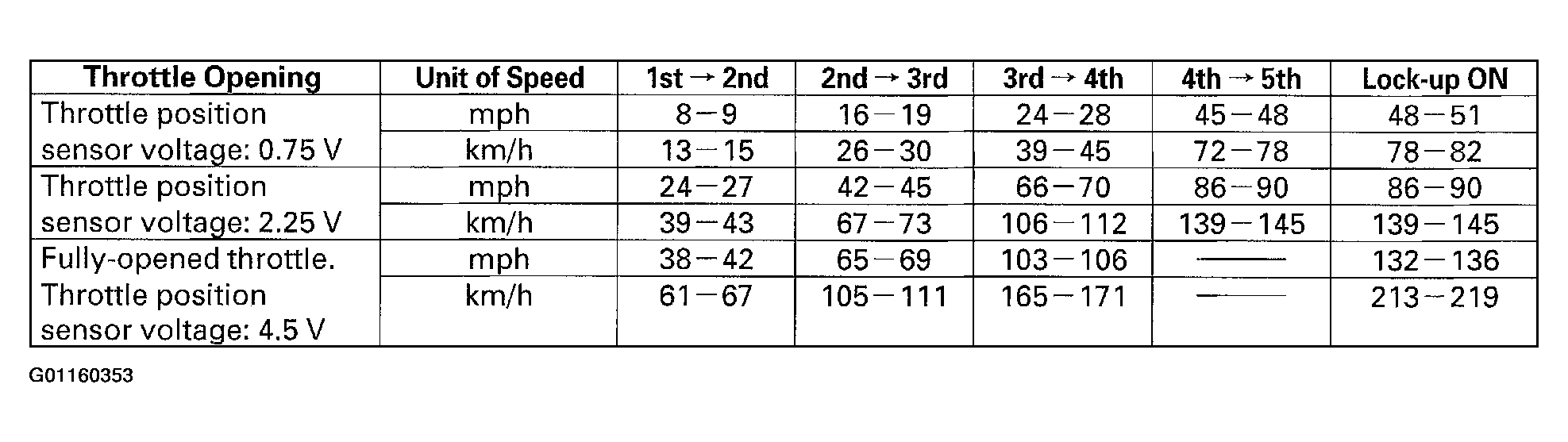

   Fig 3: Identifying Upshift-[D₅ ] Shift Points Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

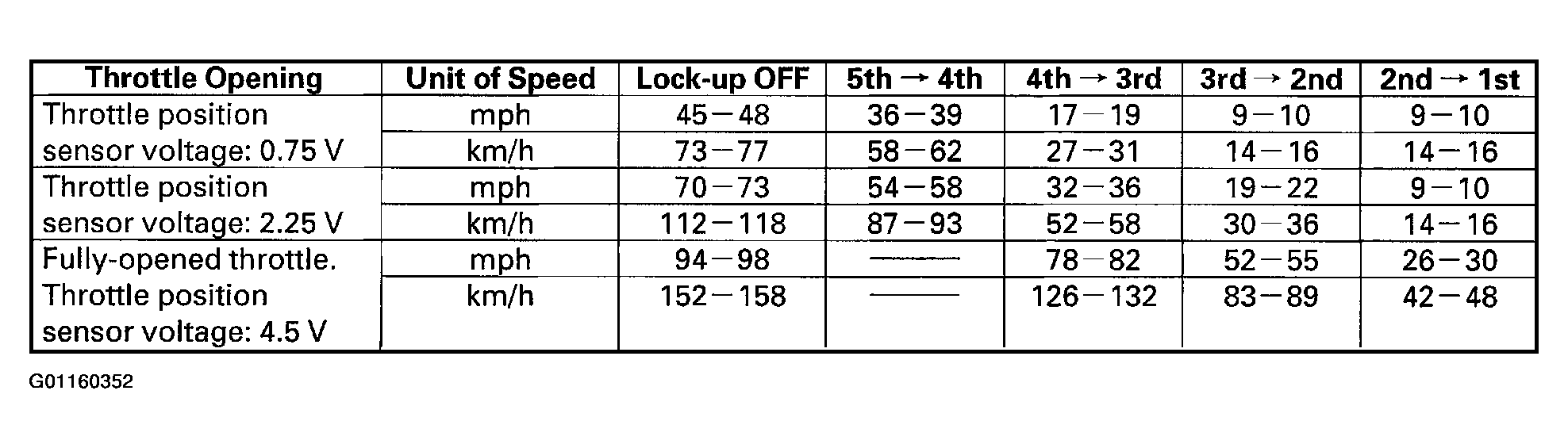

   Fig 4: Identifying Downshift-[D₅ ] Shift Points Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Type S Model:

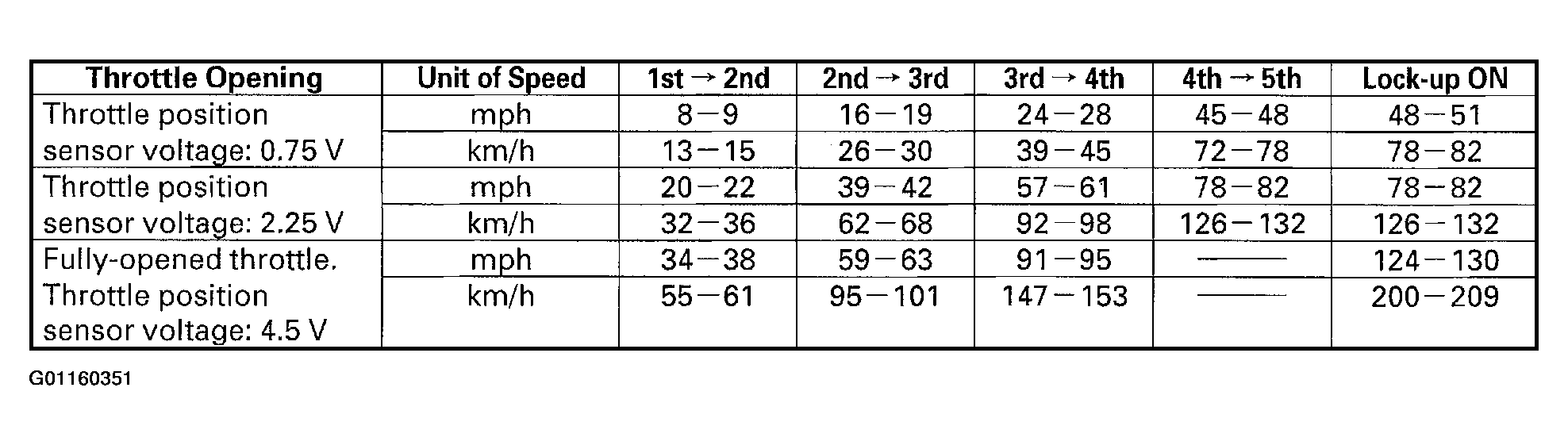

   Fig 5: Identifying Upshift-[D₅ ] Shift Points Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
   Fig 6: Identifying Downshift-[D₅ ] Shift Points Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Accelerate to about 35 mph (57 km/h) so the transmission is in 4th, then shift from the [D ₄ ] position to [2  ] position. The vehicle should immediately begin slowing down from engine braking.
9. Check for abnormal noise and clutch slippage in the following positions.
   1. [1  ] (1st Gear) Position

      Accelerate from a stop at full throttle. Check that there is no abnormal noise or clutch slippage. Upshifts should not occur with the shift lever in this position.

   2. [2  ] (2nd Gear) Position

      Accelerate from a stop at full throttle. Check that there is no abnormal noise or clutch slippage. Upshifts and downshifts should not occur with the shift lever in this position.

   3. [R  ] (Reverse) Position

      Accelerate from a stop at full throttle, and check for abnormal noise and clutch slippage.

10. Test in [P  ] (Park) Position.

    Park the vehicle on a slope (about 16°), apply the parking brake, and shift into the [P  ] position. Release the brake; the vehicle should not move.
