Passenger's Power Window Switch

WARNING: This page is about a different car, the 2004 Acura 3.5RL, 2003 Acura 3.5RL, 2003 Acura 3.2TL, 2002 Acura 3.5RL, and 2002 Acura 3.2TL. However, it is still accessible from the selected car via links, so may be relevant.

Remove passenger's door panel. See DOOR PANEL under REMOVAL & INSTALLATION. Remove passenger's power window switch from door panel. Disconnect 6-pin connector (3.2TL) or 8-pin connector (3.5RL) from switch. Check for continuity between specified switch terminals with switch in each specified position. See Fig 1 or Fig 2 . See PASSENGER'S POWER WINDOW SWITCH table. If continuity is not as specified, replace passenger's power window switch.

PASSENGER'S POWER WINDOW SWITCH

Application & Switch Position

Continuity Between Terminals No.

3.2TL

1 & 2; 3, 4, 5 & 6

OFF

1, 3, 4, 5 & 6

DOWN

1, 3, 5 & 6; 2 & 4

3.5RL ⁽¹⁾

3 & 5

OFF

1 & 3; 3 & 7; 3 & 8

DOWN

3 & 5

⁽¹⁾	Illumination bulbs are positioned between terminals No. 4 and 6. Replace illumination bulb and retest before replacing switch.

Fig 1: Identifying Passenger's Power Window Switch Terminals (3.2TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

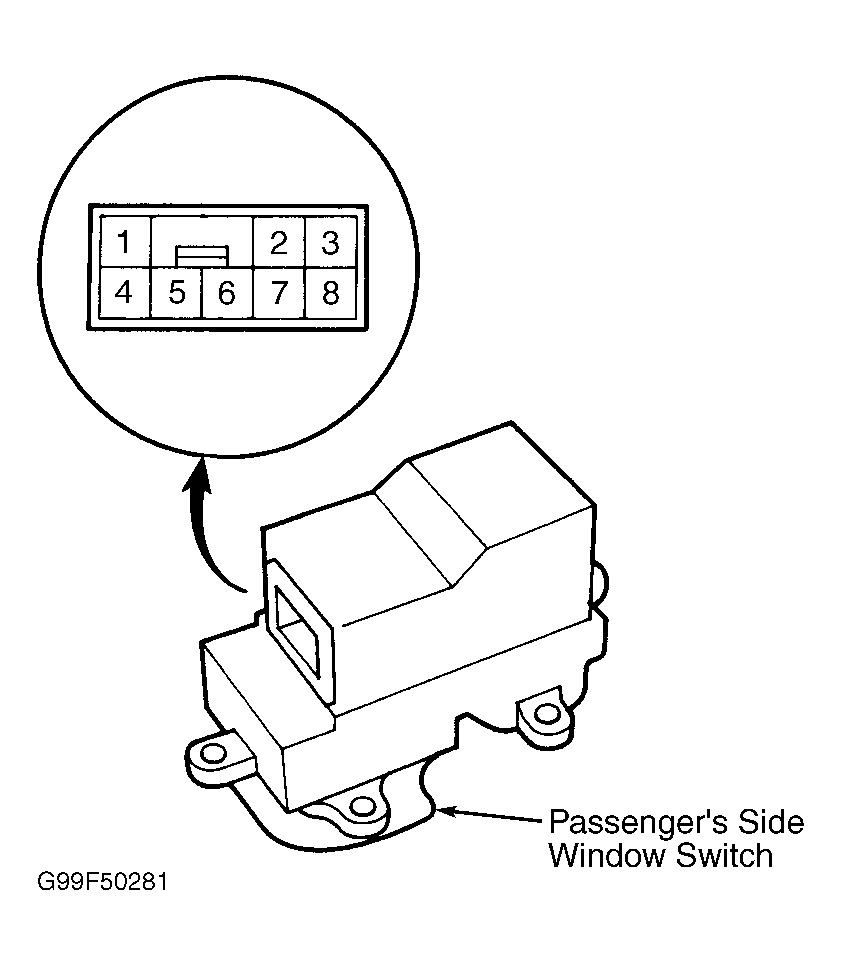

Fig 2: Identifying Passenger's Power Window Switch Terminals (3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
