Component Locations
Component Locations

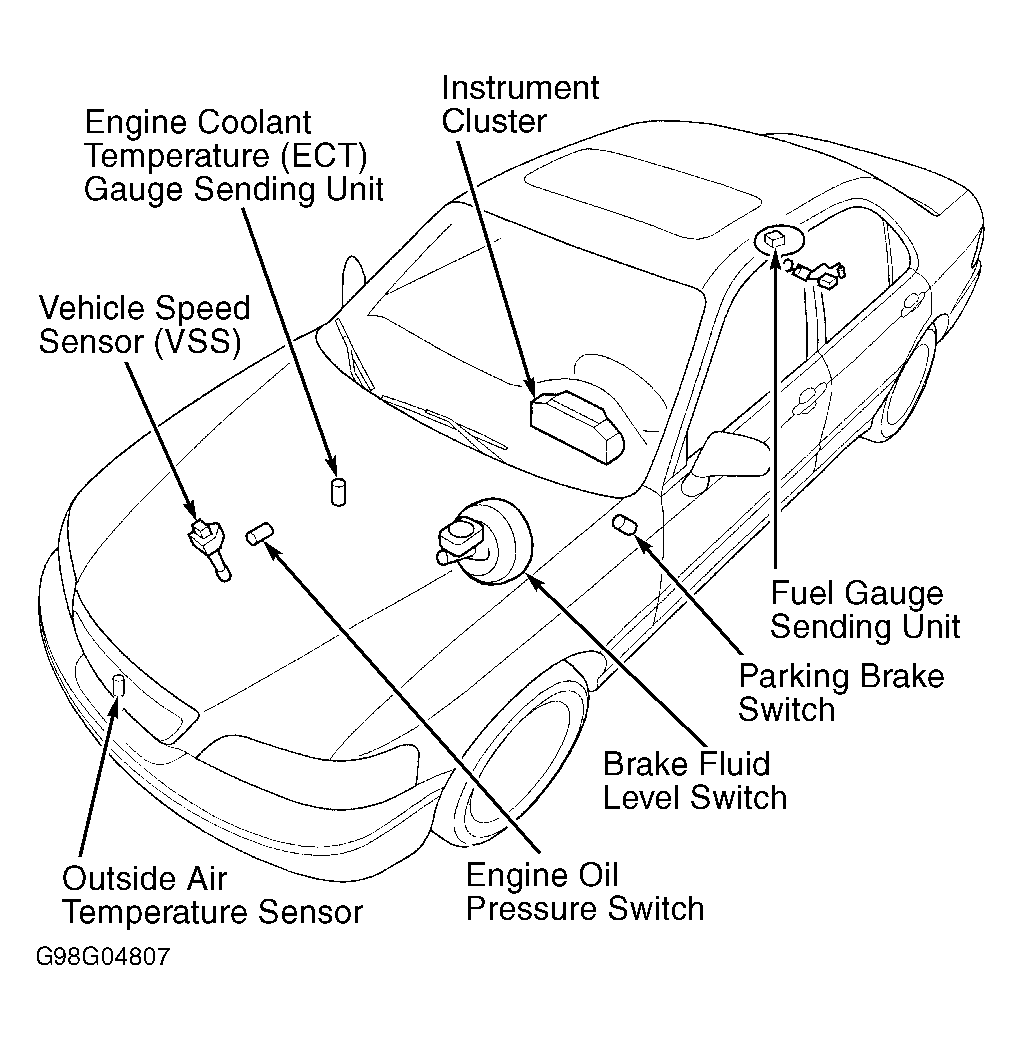

Fig 1: Locating Instrument Panel Related Components (3.2TL - 1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Locating Instrument Panel Related Components (3.2TL - 2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Locating Instrument Panel Related Components (3.5RL)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
