Dashboard Lower Cover

NOTE: When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage. Take care not to scratch the dashboard and related parts.
  1. Detach the clips, and release the hook (A), then remove the left dashboard side cover (B). See Fig 1.

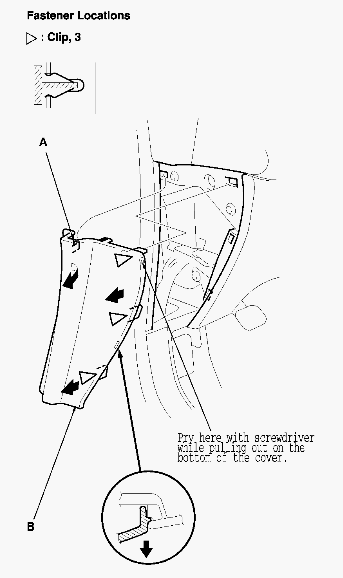

    2. Fig 1: Removing/Installing Left Dashboard Side Cover
    G00529844Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the dashboard lower cover (A). See Fig 2.
    • Remove the screw.
    • Gently pull down on the lower cover to release the right clip (B), then detach the remaining clips.
    • Disconnect the panel brightness controller connector (C), and remove the cover.
  3. Install the cover in the reverse order of removal, and make sure the connector is plugged in properly.

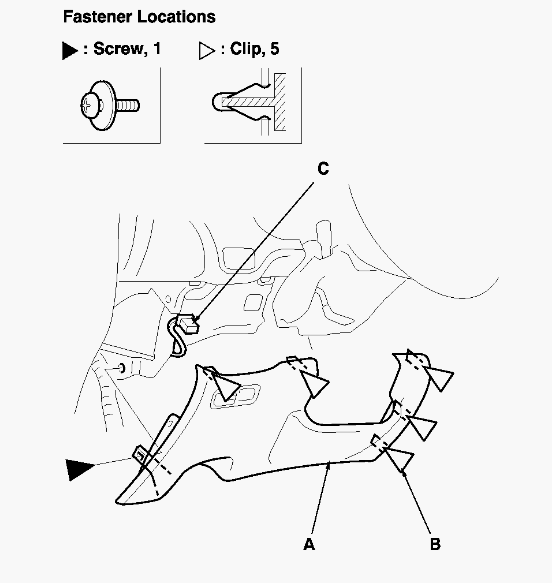

Fig 2: Removing/Installing Dashboard Lower Cover
G00529845Courtesy of AMERICAN HONDA MOTOR CO., INC.
