Charging System Indicator Test
For charging indicator test, see
Fig 1
.

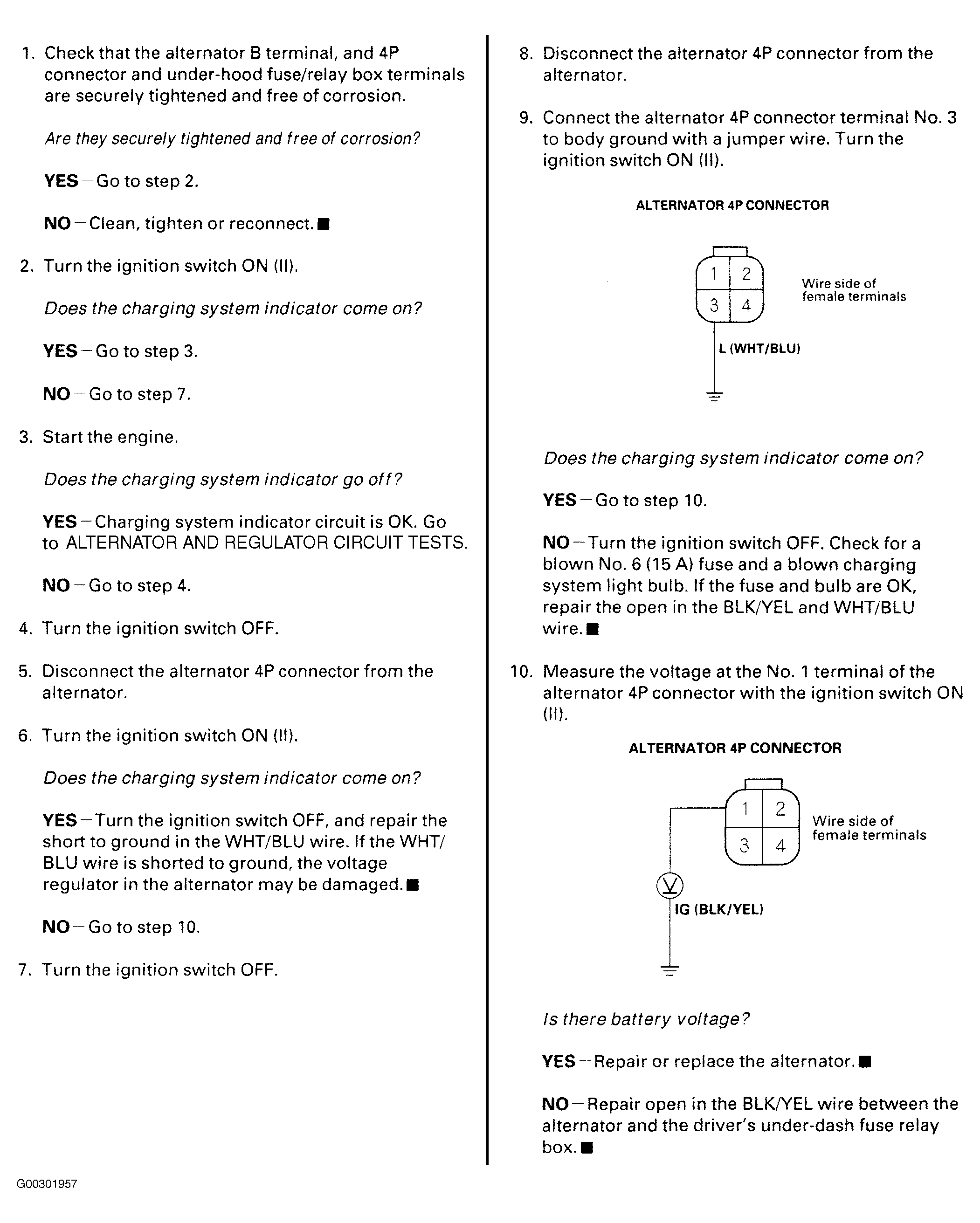

Fig 1: Charging System Indicator Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
