Component Location & Drive Belt Routing
CAUTION:
Before disconnecting battery, obtain anti-theft code for radio. After battery is reconnected, the word CODE will appear on radio display. Enter 5-digit anti-theft code using select buttons and radio will begin working. If code is entered wrong too many times, leave radio on at least one hour and enter code correctly. Any time radio power is lost, pre-selected radio stations will have to be set. For more information see owner's manual.
NOTE:
Vehicles equipped with M/T use an Engine Control Module (ECM). Vehicles equipped with A/T use a Powertrain Control Module (PCM). ECM may also be called a PCM.

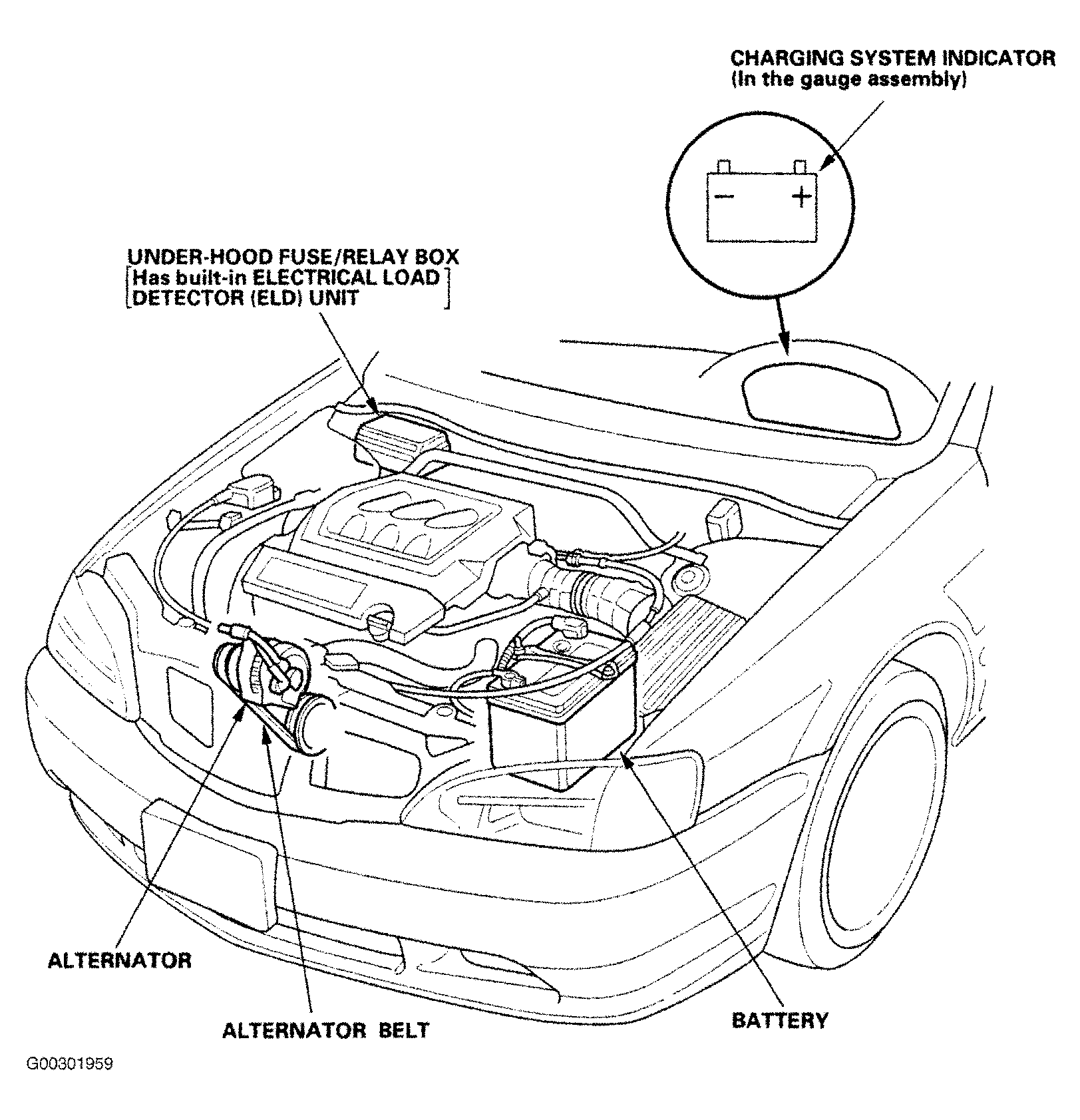

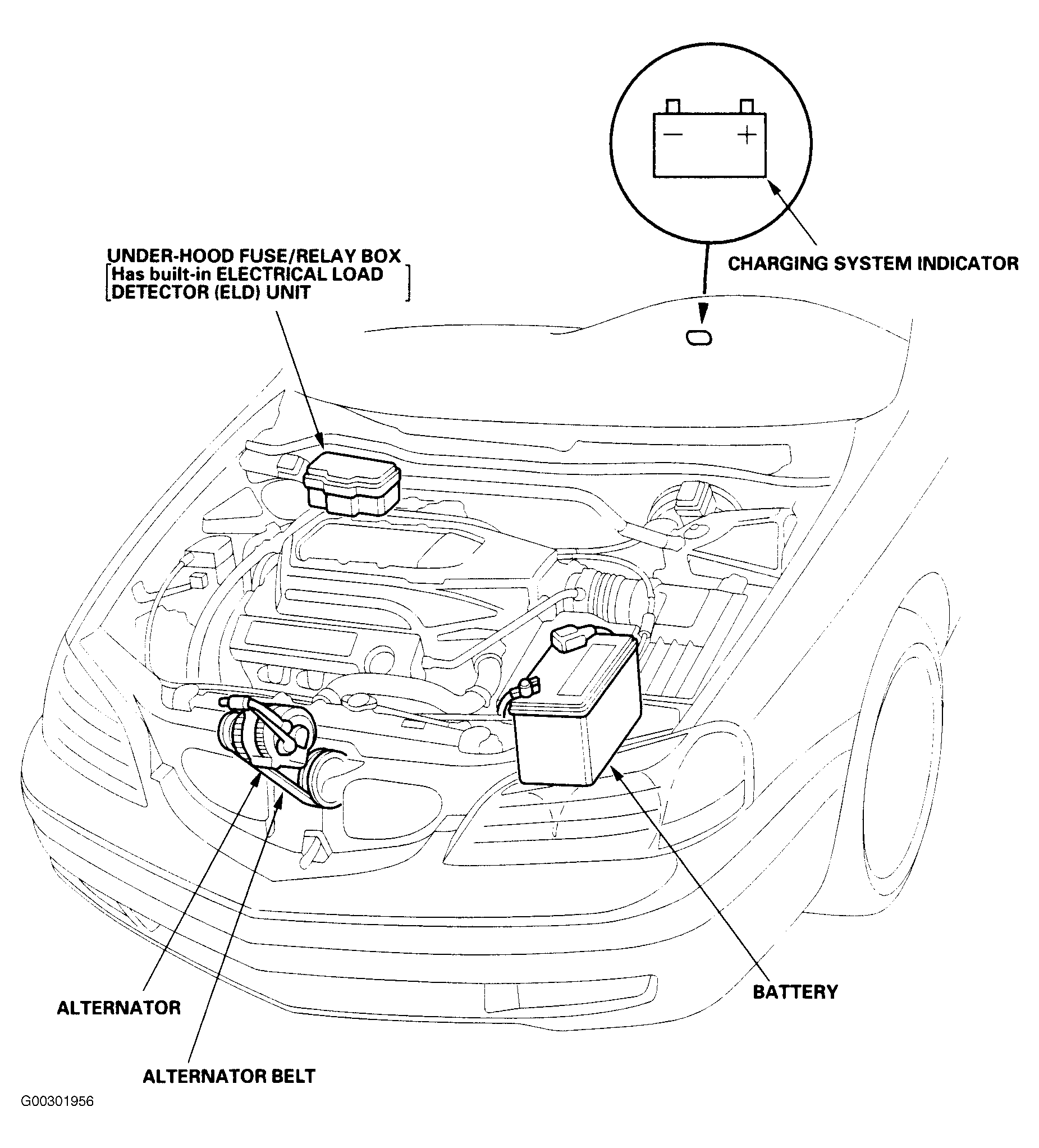

For component location index, see Fig 1 for 3.2CL or Fig 2 for 3.2TL.
