Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Anti-Theft & Keyless Entry Systems
>>
Component Locations
Component Locations

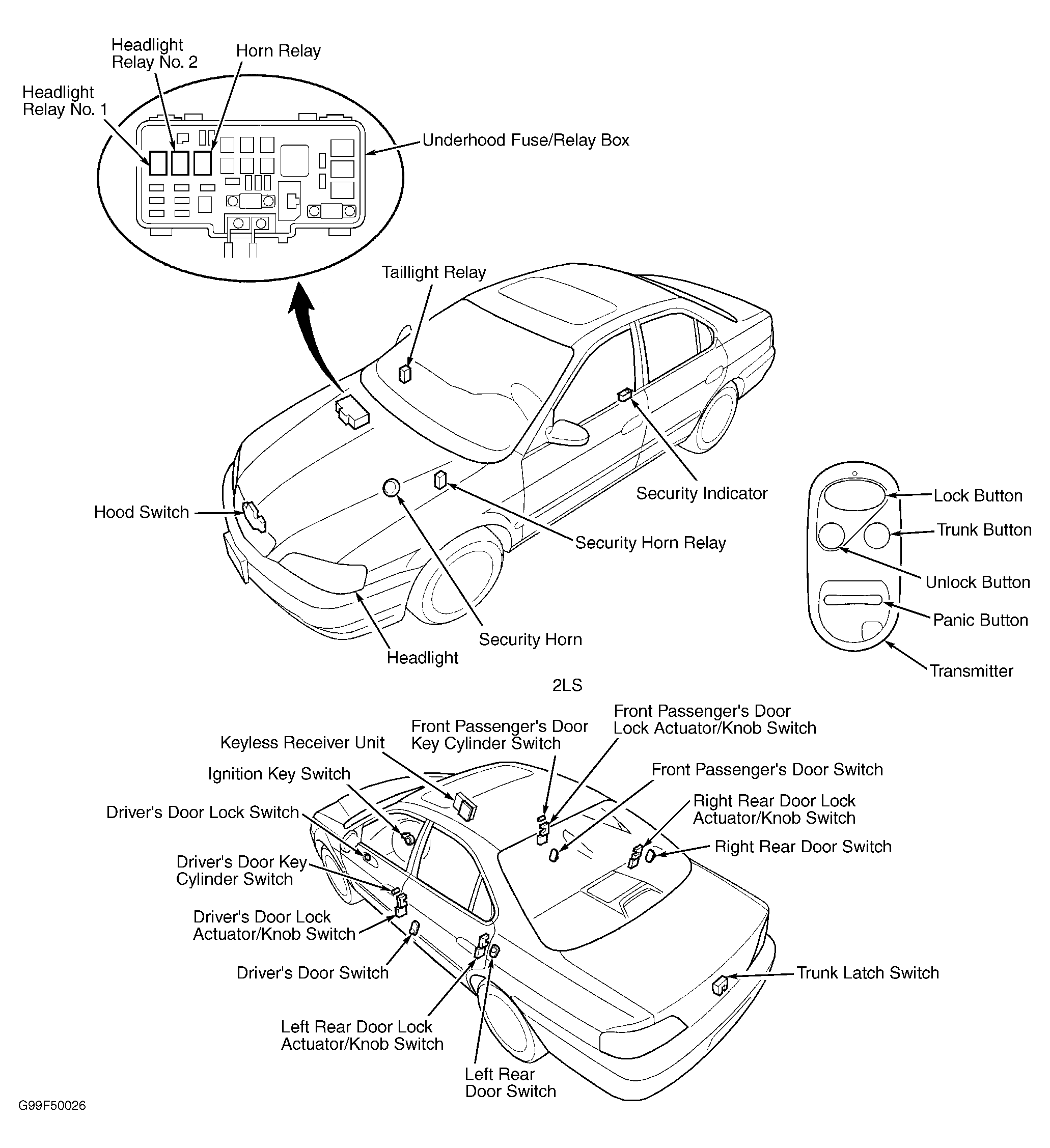

Fig 1: Locating Anti-Theft Components (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

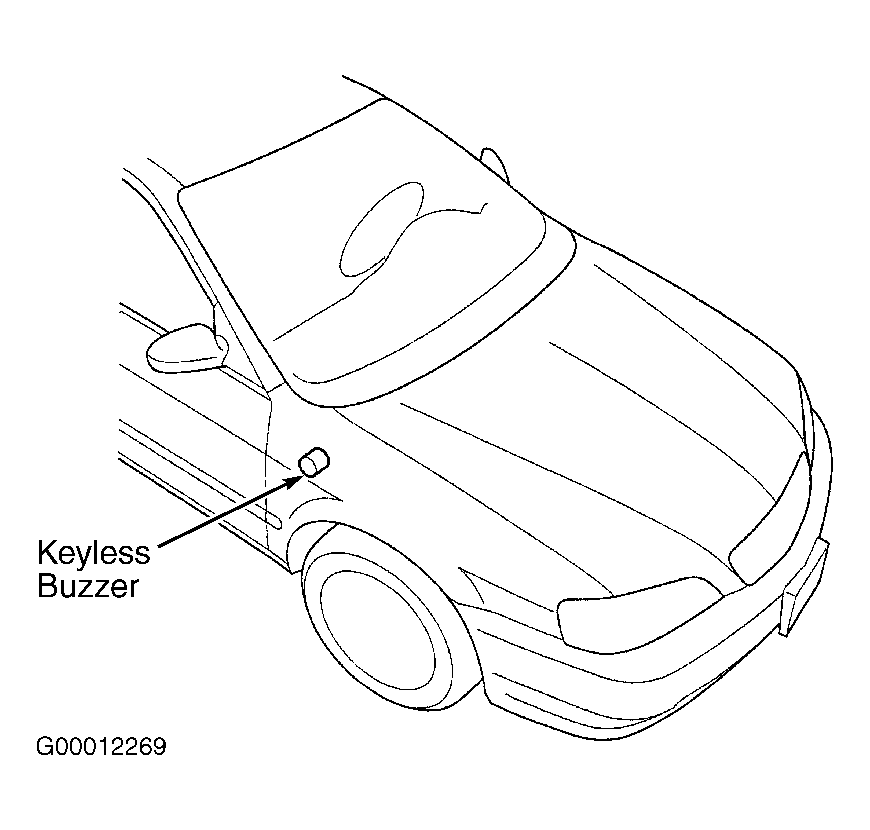

Fig 2: Locating Anti-Theft Components (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
