ATF Cooler Hoses: Connection

  1. Connect the ATF cooler hoses to the ATF cooler lines and ATF cooler, and secure them with the clips as shown.

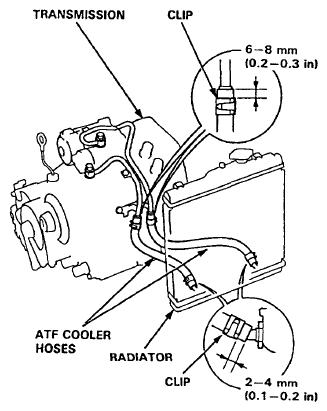

    Fig 1: Identifying ATF Cooler Hose, Radiator, Transmission And Clip
    G06288433Courtesy of AMERICAN HONDA MOTOR CO., INC.
