Home >> Acura >> 2000 >> 1.6EL XS, Standard >> Repair and Diagnosis >> Electrical >> Horns >> Horn System >> Circuit Diagram >> 1998-2000 Model

1998-2000 Model

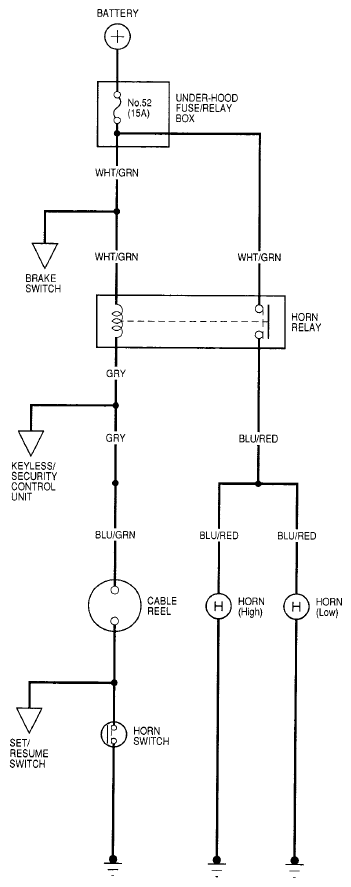

Fig 1: Horns Circuit Diagram

G06287834
