Shift Fork Assembly: Index

Prior to reassembling, clean all the parts in solvent, dry them, and apply lubricant to any contact parts.

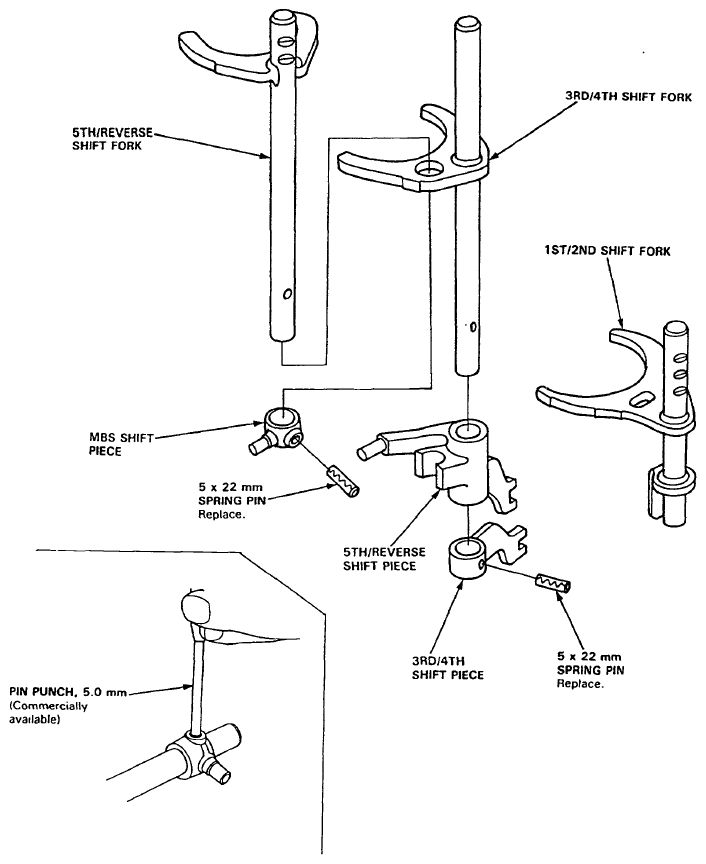

Fig 1: Identifying Shift Fork Assembly Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
