Countershaft Assembly: Disassembly

CAUTION: Remove the gears using a press and steel blocks as shown. Use of a jaw-type puller can damage the gear teeth.

Securely clamp the countershaft assembly in a bench vise with wood blocks.

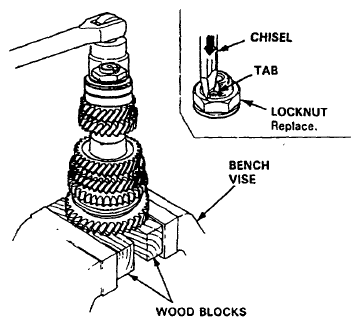

Fig 1: Securing Clamp Countershaft Assembly In Bench Vise With Wood Blocks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the locknut tab from the groove of the countershaft, then remove the locknut and the spring washer.
Remove the bearings using a bearing puller as shown.

Fig 2: Removing Bearings Using Bearing Puller
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Support 4th gear on steel blocks, and press the countershaft out of 5th and 4th gears as shown.

Fig 3: Pressing Countershaft Out Of 5th And 4th Gears
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Support 1st gear on steel blocks, and press the countershaft out of 3rd gear as shown.

Fig 4: Pressing Countershaft Out Of 3rd Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.
