Repair and Diagnosis: Transmission: Clutch: Flywheel: Replacement

Install the special tool.

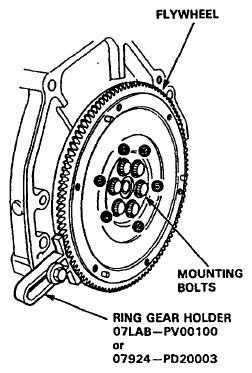

Fig 1: Identifying Flywheel, Mounting Bolts And Ring Gear Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the flywheel mounting bolts in a crisscross pattern in several steps as shown, and remove the flywheel.
Remove the ball bearing from the flywheel.

Fig 2: Removing Ball Bearing From Flywheel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Drive the new ball bearing into the flywheel using the special tools as shown.

Fig 3: Driving Ball Bearing Into Flywheel Using Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the hole in the flywheel with the crankshaft dowel pin and install the flywheel. Install the mounting bolts finger-tight.
Install the special tool, then torque the flywheel mounting bolts in a crisscross pattern in several steps as shown.

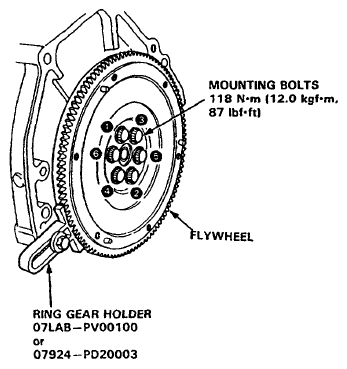

Fig 4: Flywheel, Flywheel Mounting Bolts And Ring Gear Holder With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
