Automatic Transmission: Valve: Assembly

NOTE: Coat all parts with ATF before assembly.

Install the valve, valve spring and cap in the valve body and secure with the roller.

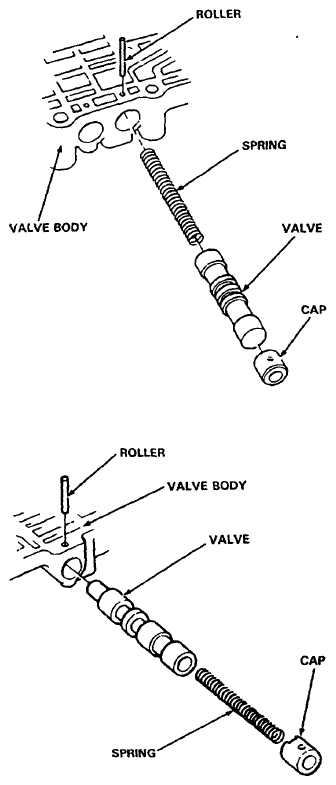

Fig 1: Identifying Valve Body, Spring, Valve And Cap
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Set the spring in the valve and install it in the valve body. Push the spring in with a screwdriver, then install the spring seat.

Fig 2: Installing Spring Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the valve, spring and cap in the valve body. Push the cap, then install the clip.

Fig 3: Installing Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
